YDS New Hot Selling mobile crusher for aggregate producion plant
- 68 Set / Sets per Month
- Qingdao; Shanghai; Tianjin etc.
- T/T
- Tertiary Reversible Impact Hammer Crusher with High Chrome Blow Bar
- China Wheat and Grain Transport Vibrating Feeder Price in Shanghai
- Good Quality Heavy Hammer Crusher for Crushing All Kinds of Ores
- Sand Ore and Coal Vibrating Feeder Machinery Used in Mining Industry
- High Efficiency Stone Crushing Plant Impact Stone Crusher
- Sound Equipment Impact Crusher Machine for Stone Crushing Line
Product Details
Condition: | New | Type: | Jaw Crusher | Application: | Quarry, aggregate, granite, etc, Quarry, aggregate, granite, etc. |
Motor Type: | AC Motor | Power(W): | 43-147kw | Capacity(t/h): | 10-150 |
Place of Origin: | Henan, China | Brand Name: | UNIQUE | Model Number: | YDS |
Dimension(L*W*H): | 8600x2520x3770,9600x2520x3500,11097x3759x3500,1330x2900x4440mm | Certification: | CE, ISO | Warranty: | 15 Months |
After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
YDS New Hot Selling mobile crusher for aggregate producion plant

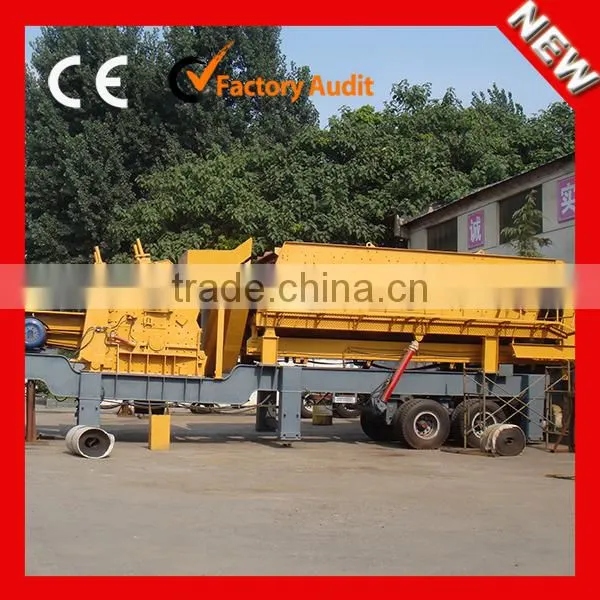

Introduction of Mobile Jaw Crusher Plant
Mobile jaw crusher plant is composed of Traveling Chassis, Jaw Crusher, Triple-Deck Vibrating Screen and Belt Conveyor, which is installed after primary crusher, and this plant is used for fine crushing and screening the products . all the units are erected on the track and formed one independent working units, it can quickly move to pointed site, easily setup to handle different products. Movable crushing plants provides a new field of business opportunities for contractors, quarry operators, recycling and mining applications. It offers high efficient and low cost project plan without environment limit for the client.
Applications of Mobile Jaw Crusher Plant
Quarry
Road Construction
Aggregate Processing
Railway Engineering
Recycling Applications
Rock & Mineral Operations
The outstanding features of Y series Mobile Jaw Crusher Plant
Built with high quality jaw crusher, cone crusher and impact crusher
Feeder, screen and belt conveyor on board
Tractive steering shaft, convenient for road transportation
Integrated with landing gears, quick and convenient installation on site
Integrated motor and control panel
Easy to transport
Portable crushing plant has high on-board chassis, short wheel base and tight turning radius, which is convenient for road transportation, especially for driving to crushing sites that are difficult to access. The set-up time of the portable crushing plant are greatly reduced, compared with the stationary one.
Greatly reduce material transportation cost
Portable crushing plants crush the material on site, without transporting the materials for off-site crushing, so the material transportation cost is greatly reduced.
Wide applications
According to different customers’ requirements, Portable crushing plant can be operated as independent units, or as two-stage crushing plant with primary and secondary crushing, or as three-stage crushing plant with primary, secondary, and tertiary crushing. Likewise, portable crushing plant can be easily adjusted to suit the crushing application by choosing feeding to crusher or feeding to screen options.
Reliable performance and convenient maintenance
Portable crushing plants adapt excellent quality crusher, screen and feeder made from Unique Industrial Company, yet the quality is stable and reliable. Normal belt conveyor can be used for conveyance of material, which is of mature technology, simply operation, easy maintenance, and low investment.
Customized production and flexible configuration
We can provide special portable crushing plant based on customers’ site, material, and particle shape requirements, etc. Such as self-load belt conveyor, multiple machines combined type, single machine type and so on.
Main Specification of Mobile Jaw Crusher Plant
Model Parameters |
YDS50 |
YDS70 |
YDS100 |
YDS180 | |||||
Vibrating feeder Model | GZT-0724 | GZT-0932 | GZT-0940 | GZT-1148 | |||||
Jaw crusher Model | PE-400x600 | PE-500x750 | PE-600x900 | PE-750x1060 | |||||
Main Belt conveyor | B650=6m | B800=7m | B1000=8m | B1000=11m | |||||
Adjustable Range of Discharge Opining(mm) | 40-100 | 50-100 | 95-165 | 80-180 | |||||
Capacity(t/h) | 10-35 | 25-60 | 30-85 | 72-150 | |||||
Power(kw) | 43 | 57 | 72 | 147 | |||||
Transportation Dimension( LxWxH) | 8600x2520x3770 | 9600x2520x3500 | 11097x3759x3500 | 1330x2900x4440 | |||||
Separators | RCYD | RCYD | RCYD | RCYD | |||||
Chassis Frame | biax | biax | biax | triaxial |
Package & shipment
- Packaging: Standard Container, Nude Packs or in Bulk.
- Shipping: we deliver the cargo to China's main sea ports,such as Qingdao,Tianjin,Shanghai etc.And then the container will be transported to your country by sea
Our Service
1.more than 12 months' warranty period
2.Erection and Commissioning
3.Operator Training
4.Spare Parts Supply
Zhengzhou Unique Industrial Equipment Co., Ltd, a reliable and professional supplier of Mobile Jaw Crusher Plant.
