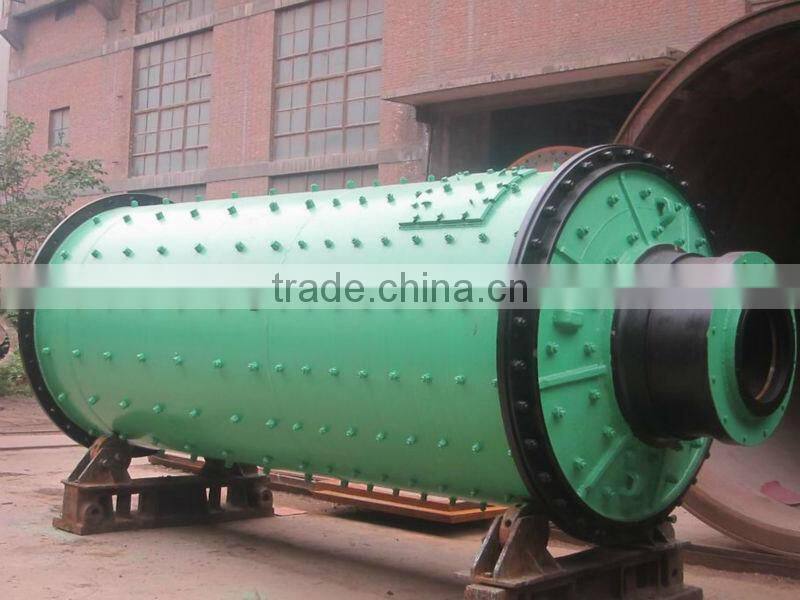

Help CenterEngrgy-Saving Wet Grid Grinder Mill for Ore Benefication Plant
Related Products
-
2013 Low Investment Small Scale Magnetic Separator for Iron Sand ProcessingUS$ 6,200 - 6,500MOQ: 1 Set -
Large Capacity Magnetic Separator for Iron Ore SeparationUS$ 15,000 - 15,500MOQ: 1 Set
-
Largest Magnetic Separator for Iron Sand Processing PlantUS$ 33,000 - 33,500MOQ: 1 Set
-
Jumbo China Brand Robust DPX Series Hammer CrusherNegotiableMOQ: 1 Set
-
2013 PYB1200 Spring Cone Crusher for Quarry ProjectUS$ 60,000 - 61,000MOQ: 1 Set
Specifications
energy-saving ball mill, high effieicecy, ISO standard certified. warranty period is more than 12 months. low cost for running| model | Shell rotation speed (rpm) | Ball load (t) | Max. feed size (mm) | Discharge size (mm) | Capacity (t/h) | Motor power (kw) | Dimensions (L*W*H) (mm) | Weight (t) |
| MQG1200*4500 | 30 | 5.2 | 25 | 0.074-0.6 | 1.5-6 | 45 | 8820*3070*2630 | 13.5 |
Ball mill is an efficient tool for grinding many mainquiryterials into fine powder. The Ball Mill is used to grind many kinds of mine and other materials, or to select the mine, widely used in building material, chemical industry, etc. There are two ways of grinding: the dry process and the wet process. It can be divided into tabular type and flowing type according to different forms of discharging material.
Ball mill is made up of feedisng part, discharging part, gyre part, transmission part, (decelerator, small transmission gear, generator, electrical control) and so on.
The hollow axis adopts the cast steel and the lining can replace, the rotating big gear processes in the way of casting rolling gear. The barrel body is wearable well and bears wearable scaleboard. This machine run steadily and works reliably.
WE ARE EXPEIENCED BALL MILL MANUFACTURER SINCE 1980S, WELCOME TO SEND INQUIRE AT ANY TIME.
