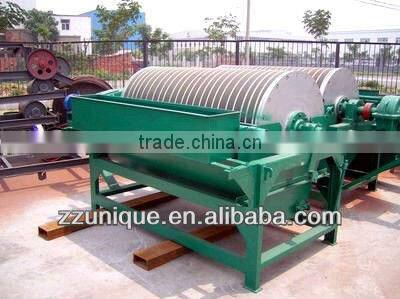

Help CenterLarge Capacity Magnetic Separator for Iron Ore Separation
Related Products
-
Largest Magnetic Separator for Iron Sand Processing PlantUS$ 33,000 - 33,500MOQ: 1 Set -
Jumbo China Brand Robust DPX Series Hammer CrusherNegotiableMOQ: 1 Set
-
2013 PYB1200 Spring Cone Crusher for Quarry ProjectUS$ 60,000 - 61,000MOQ: 1 Set
-
Best Price of Small Hammer Mill for Soft Rock CrushingNegotiableMOQ: 1 Set
-
Professional & Best Price Roller Crusher in 2013NegotiableMOQ: 1 Set
Specifications
1. ISO9001:20002. Long service life
3. wide application in iron ores
4. low running cost and low maintenance cost
The Magnetic Separator is suitable for wet magnetic separation of materials such as
magnetite, calcined ore, etc. and it can remove the iron in the coal, nonmetal and construction industries.
The magnetic system is made from high quality ferrite magnetic materials and /or rare earth magnet steel.
On the shell surface, the magnet intensity is 100600mt.
The wet type permanent magnet cylindrical separator is commonly used for iron ore separation.
It is suitable for separating materials with high magnetism. In recent years, it has been used as concentrating equipment in place of magnetic dewatering cell.
Model: CTB1024
Dia. of tube body: 1050 mm
Length of tube body: 2400 mm
Rotation speed of tube body: 19 rpm
Magnetic induction: 1200-2400
Feed size: 0.8-0 mm
Capacity: 60-120 t/h
Electrical motor power: 5.5 kw
Dimensions (L*W*H) (mm): 4140*2220*1830 mm
Weight: 5.1 t
