Home > Manufacturing & Processing Machinery > Machine Tools > Milling Machine > Bed Type Vertical Milling Machine, Table 1400x400 1525x320mm

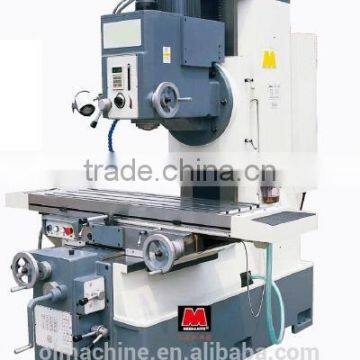

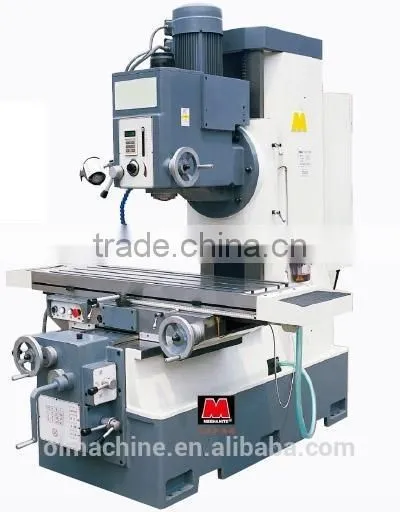

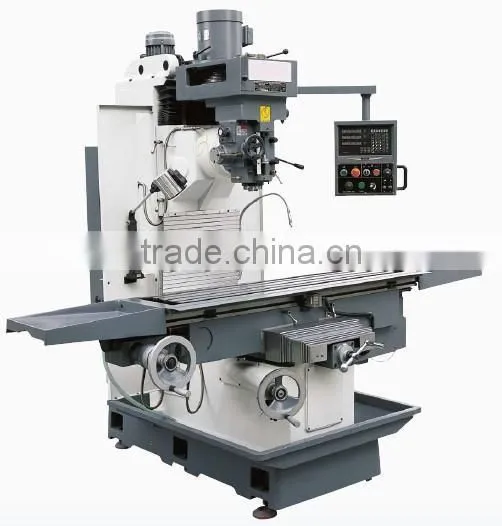

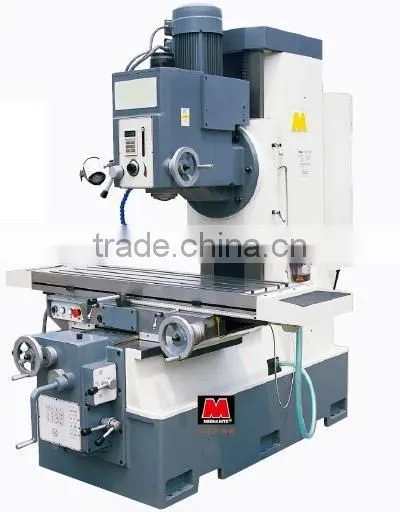

Bed Type Vertical Milling Machine, Table 1400x400 1525x320mm
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Model Number:
XA7140 X713
CNC or Not:
Normal
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Vertical Knee-type Milling Machine, Table 320x1320 400x1700mmNegotiableMOQ: 1 -
Universal Knee-type Milling Machine, Table 320x1320 400x1700mmNegotiableMOQ: 1
-
Universal Swivel Head Milling Machine X6436, Table 1320x360 1600x360mmNegotiableMOQ: 1
-
Universal Swivel Head Milling Machine X6432, Table 1320x320 1600x320mmNegotiableMOQ: 1
-
Universal Swivel Head Milling Machine XQ6226A XQ6226B XQ6226-1G, Table 1120x260mmNegotiableMOQ: 1
Condition
New
Model Number
XA7140 X713
CNC or Not
Normal
Certification
CE ISO
Bed-type vertical milling machine
|
|
X713 |
Table size |
mm |
1525×320 |
table travel |
mm |
1050×470 |
No/Width/Distance of T-slot |
mm |
3-14-80 |
Distance between spindle nose and table surface |
mm |
70-570 |
Distance from spindle axis to column guideway |
mm |
450 |
Spindle taper |
|
ISO40 |
Spindle quill travel |
mm |
127 |
Spindle speed range |
rpm |
70-3620 |
Spindle motor power |
HP |
5 |
dimension |
mm |
2565×2045×2290 |
weight |
kg |
2300 |
Bed-type vertical milling machine
|
|
XA7140 |
Table size |
mm |
1400×400 |
Table travel |
mm |
800×400 |
No/Width/Distance of T-slot |
mm |
3-18-100 |
Max. load |
kg |
800 |
Distance from spindle axis to column guideway |
mm |
520 |
Distance from spindle nose to table surface |
mm |
150-650 |
Spindle taper |
|
ISO50 |
Quill travel |
mm |
105 |
Spindle speed range |
rpm |
18-1800 |
dimension |
mm |
2290×1840×2120 |
motor power |
kW |
7.5 |
weight |
kg |
3860 |
