Home > Products > Milling machine > Universal Swivel Head Milling Machine X6432, Table 1320x320 1600x320mm

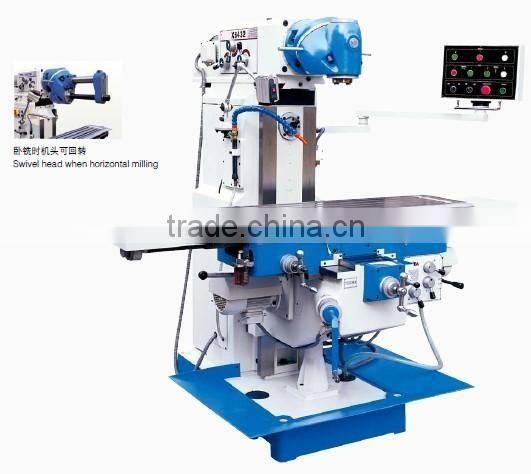

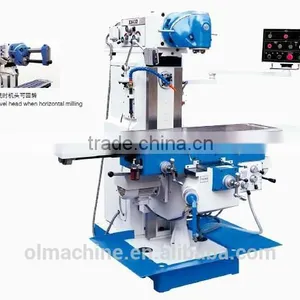

Universal Swivel Head Milling Machine X6432, Table 1320x320 1600x320mm
Negotiable
1 (Min. Order)
You May Like
-
Universal Swivel Head Milling Machine XQ6226A XQ6226B XQ6226-1G, Table 1120x260mm
-
Universal Radial Milling Machine X6332C X6328B, Table 1270x320 1120x260mm
-
Universal Radial Milling Machine X6336, Table 1320x360mm
-
Bed Type Vertical Milling Machine, Model X7125 X7130, Table 254x1270 254x1370 305x1370 305x1500mm
-
S Bed Type CNC Milling Machine, Table 1370x330 1370x406 1600x510 1854x610mm
-
Universal Vertical and Horizontal Milling Machine, Table 300x1300 300x1370 300x1500mm
Product Details
| Condition | New | Model Number | X6432 | |
| CNC or Not | Normal | Certification | CE ISO |
Product Description
Specifications
| Units
| X6432
|
Table size
| mm
| 1320×320 or 1600x320
|
Table travel
| mm
| 1000×300(manual)
|
Number/Width/Distance of T-slot
| mm
| 5-14-63
|
Spindle taper
|
| ISO40
|
Distance from spindle nose to table surface
| mm
| 220-660
|
Distance between spindle axis and column surface
| mm
| 100-600
|
Distance from horizontal spindle axis to table surface
| mm
| 0-440
|
Max. vertical milling dia.
| mm
| 25
|
Spindle speed range
| rpm
| 45-1660(V) 40-1300(H)
|
Swivel angle of swivel head
|
| 360°
|
Spindle motor power
| kW
| 3(V/H)
|
Overall dimension
| mm
| 2020×1710×1994
|
Machine weight
| kg
| 2100
|
