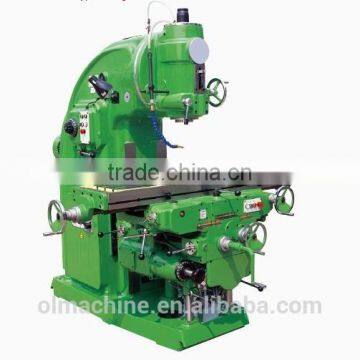

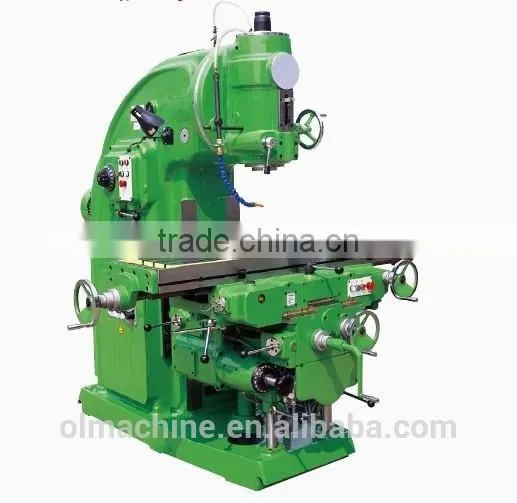

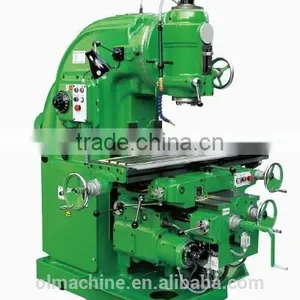

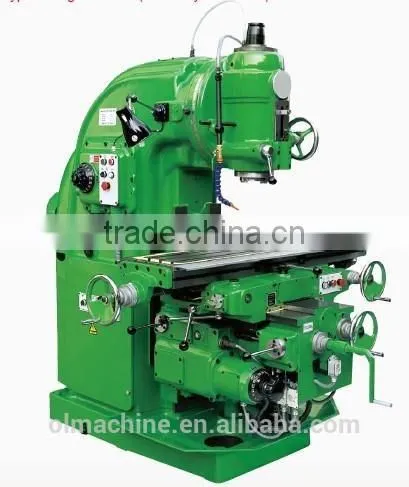

Vertical Knee-type Milling Machine, Table 320x1320 400x1700mm

Shaanxi Olong Import And Export Co., Ltd.

Negotiable MOQ: 1 set (Price negotiable depending on order volume and customization)

Key Specifications

Condition:

New

Model Number:

X5040 X5032

CNC or Not:

Normal

Payment & Shipping

Payment Methods:

Port of Shipment:

China

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Model Number X5040 X5032

CNC or Not Normal

Certification CE ISO

Vertical knee-type milling machine

		X5040
Table size	mm	1700×400
Number/Width/Distance of T-slot	mm	3-18-90
Max. load of table	kg	800
Longitudinal travel (manual/auto)	mm	900/880
Transverse travel (manual/auto)	mm	315/300
Vertical travel (manual/auto)	mm	385/365
Cutting feed speed	mm/min	X,Y: 23.5-1180, Z: 8-394
Rapid feed speed	mm/min	X: 2300, Y: 2300, Z: 770
Spindle speed range	rpm	30-1500
Spindle speed step		18
Spindle travel	mm	85
Max. swivel angle of spindle		±45°
Distance between spindle nose and table surface	mm	130-515
Spindle motor power	kW	11
dimension	mm	2556×2159×2328
weight	kg	4250

Vertical knee-type milling machine (Driven by ball screw)

		X5032
Table size	mm	1320×320
Number/Width/Distance of T-slot	mm	3-18-70
Max. load of table	kg	500
Longitudinal travel (manual/auto)	mm	700/680
Transverse travel (manual/auto)	mm	255/240
Vertical travel (manual/auto)	mm	350/330
Cutting feed speed	mm/min	X:23.5-1180,Y:15-786,Z:8-394
Rapid feed speed	mm/min	X:2300,Y:1533,Z:770
Spindle speed range	rpm	30-1500
Spindle speed step		18
Spindle travel	mm	70
Max. swivel angle of spindle		±45°
Distance between spindle nose and table surface	mm	60/410
Spindle motor power	kW	7.5
dimension	mm	2294×1770×1960
weight	kg	2800
