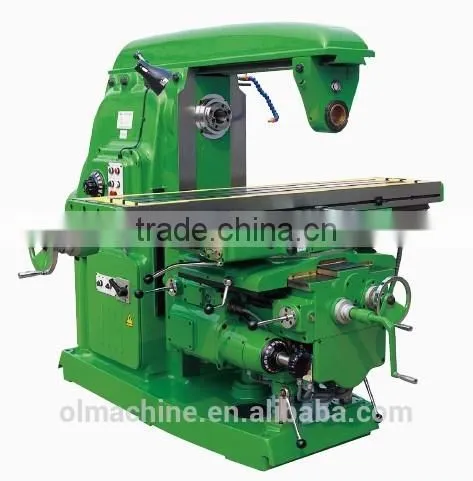

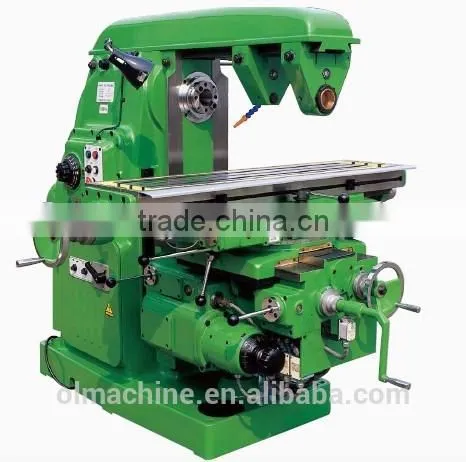

Universal Knee-type Milling Machine, Table 320x1320 400x1700mm

Shaanxi Olong Import And Export Co., Ltd.

Negotiable MOQ: 1 set (Price negotiable depending on order volume and customization)

Key Specifications

Condition:

New

Model Number:

X6140 X6132

CNC or Not:

Normal

Payment & Shipping

Payment Methods:

Port of Shipment:

China

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Model Number X6140 X6132

CNC or Not Normal

Certification CE ISO

Universal knee-type milling machine

		X6140
Table size	mm	1700×400
Number/Width/Distance of T-slot	mm	3-18-90
Max. load of table	kg	800
Longitudinal travel (manual/auto)	mm	900/880
Transverse travel (manual/auto)	mm	315/300
Vertical travel (manual/auto)	mm	380/360
Cutting feed speed	mm/min	X,Y: 23.5-1180, Z: 8-394
Rapid feed speed	mm/min	X:2300,Y:2300,Z:770
Spindle speed range	rpm	30-1500
Spindle speed step		18
Distance between spindle axis and table surface	mm	30-410
Spindle motor power	kW	11
dimension	mm	2556×2159×1800
weight	kg	3850

Universal knee-type milling machine (Driven by ball screw)

		X6132
Table size	mm	1320×320
Number/Width/Distance of T-slot	mm	3-18-70
Max. load of table	kg	500
Longitudinal travel (manual/auto)	mm	700/680
Transverse travel (manual/auto)	mm	255/244
Vertical travel (manual/auto)	mm	320/300
Cutting feed speed	mm/min	X,Y:23.5-1180,Z:8-394
Rapid feed speed	mm/min	X:2300,Y:2300,Z:770
Spindle speed range	rpm	30-1500
Spindle speed step		18
Distance from table center to colum guideway	mm	215-470
Max. swivel angle of spindle		±45°
Distance from spindle axis to table surface	mm	30/350
motor power	kW	7.5
dimension	mm	2294×1770×1720
weight	kg	2650
