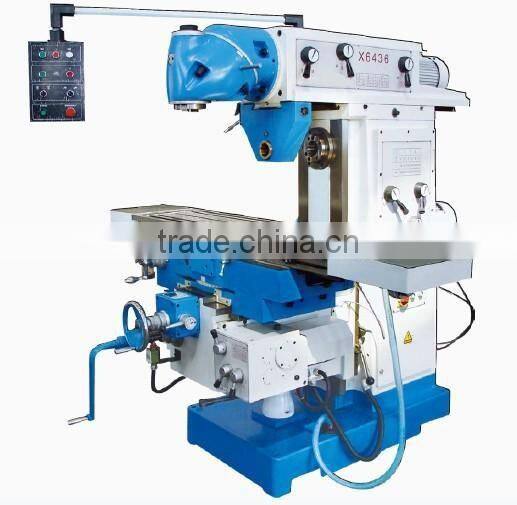

Universal Swivel Head Milling Machine X6436, Table 1320x360 1600x360mm

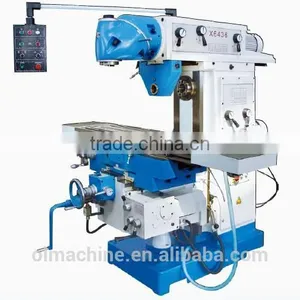

Universal Swivel Head Milling Machine X6436, Table 1320x360 1600x360mm thumbnail-1
Universal Swivel Head Milling Machine X6436, Table 1320x360 1600x360mm photo-1
Negotiable MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Model Number:
X6436
CNC or Not:
Normal
Contact Supplier Request Quote Chat Now
Shaanxi Olong Import And Export Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Model Number X6436
CNC or Not Normal
Certification CE ISO



Universal swivel head milling machine



Specifications



X6436



Table size



1320×360 or 1600x360mm



Table travel



1000×300mm



Number/Width/Distance of T-slot



3-14-95mm



Spindle taper



ISO50



Distance between spindle axis and table surface



0-400mm



Distance between spindle axis and ram surface



175mm

Spindle speed range(steps)



58-1800     60-1750rpm



Table power feed speed range in longitudinal, transverse and vertical directions



22 - 420(X)

22 - 393(Y)

10 - 168 (Z) mm/min



Swivel angle of table



±35°



Ram travel



500mm



Spindle motor power



4kw



Overall dimension  (L×W×H)



2070×2025×2020mm



Machine weight



2480kg





 Universal swivel head milling machine X6436, table 1320x360 1600x360mm
