Home > Products > Milling machine > Universal swivel head milling machine XQ6226A XQ6226B XQ6226-1G, table 1120x260mm

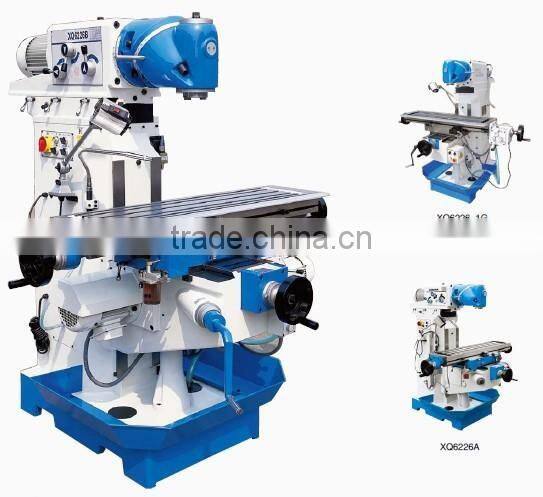

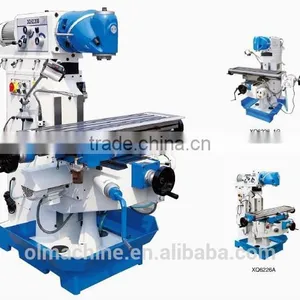

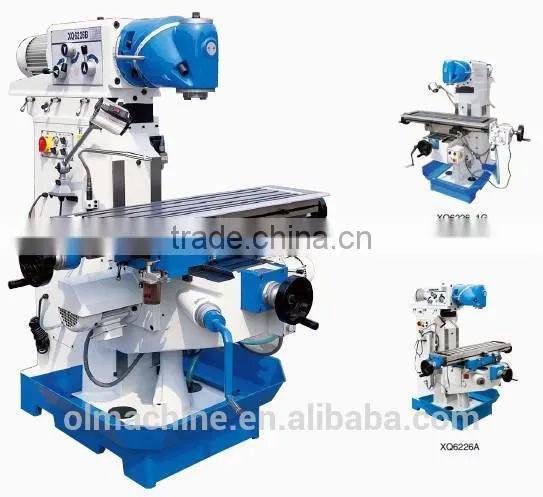

Universal swivel head milling machine XQ6226A XQ6226B XQ6226-1G, table 1120x260mm
Negotiable
1 (Min. Order)
You May Like
-
Universal radial milling machine X6332C X6328B, table 1270x320 1120x260mm
-
Universal radial milling machine X6336, table 1320x360mm
-
Bed Type Vertical Milling Machine, model X7125 X7130, table 254x1270 254x1370 305x1370 305x1500mm
-
S Bed Type CNC Milling Machine, table 1370x330 1370x406 1600x510 1854x610mm
-
Universal Vertical and Horizontal Milling Machine, table 300x1300 300x1370 300x1500mm
-
Universal Precision Vertical Turret Milling Machine, table 230x1067/1246 254x1270 /1370 305x1370/1500 330x1370/1500mm
Product Details
| Condition | New | Model Number | XQ6226A XQ6226B XQ6226-1G | |
| CNC or Not | Normal | Certification | CE ISO |
Product Description
Specifications
| XQ6226B
| XQ6226A
| XQ6226-1G
|
Table size
| 1120×260
| 1120×260
| 1120×260mm
|
Table travel
| 600×270
| 600×270
| 600×300mm
|
Spindle taper
| ISO40
| ISO40
| ISO40
|
Distance from spindle nose to table surface
| 100-480
| 100-480
| 100-480mm
|
Max. end milling width
| 125
| 125
| 125mm
|
Max. vertical milling dia.
| 25
| 25
| 25mm
|
Spindle speed range
| 45-1660
| 45-1660
| 45-1660rpm
|
Swivel angle of swivel head
| 360°
| 360°
| 360°
|
Overall dimension
| 1655×1500×1730
| 1655×1500×1730
| 1655×1325×1730mm
|
Spindle motor power
| 2.2
| 2.2
| 2.2kw
|
Machine weight
| 1480
| 1400
| 1300kw
|
