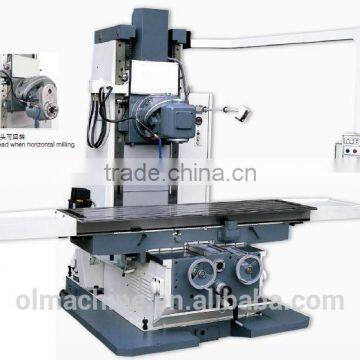

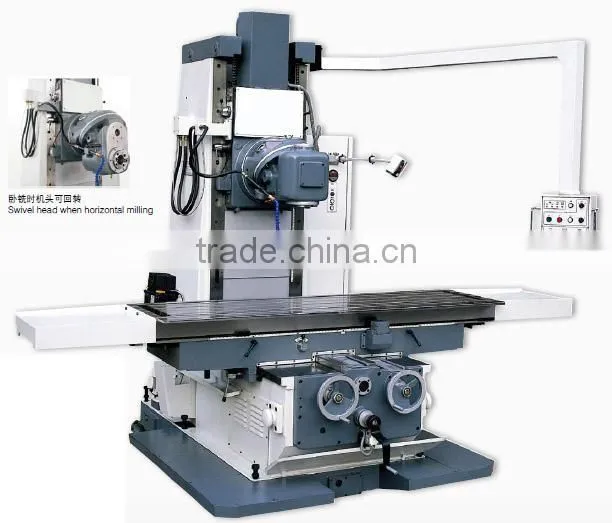

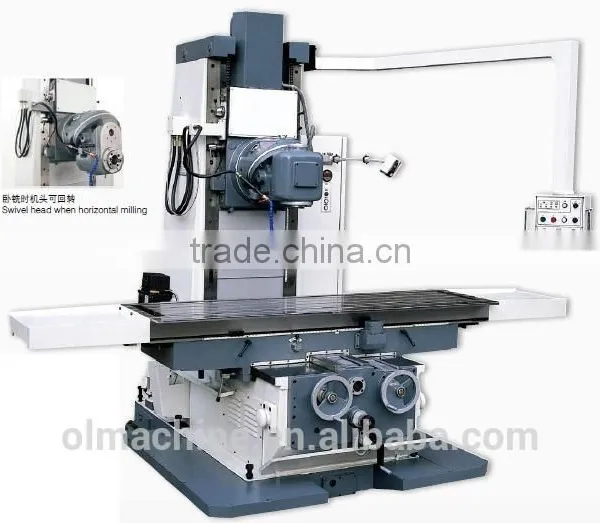

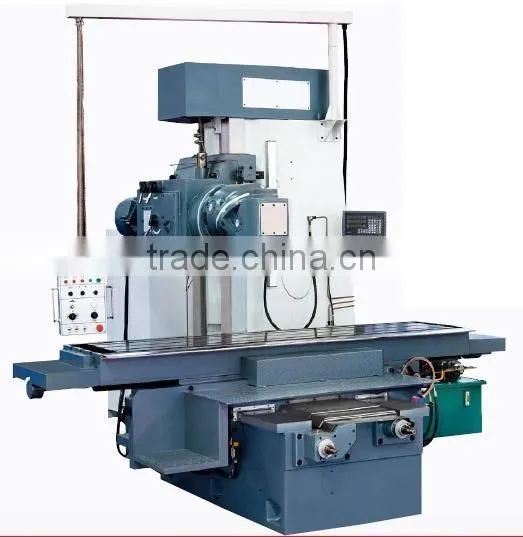

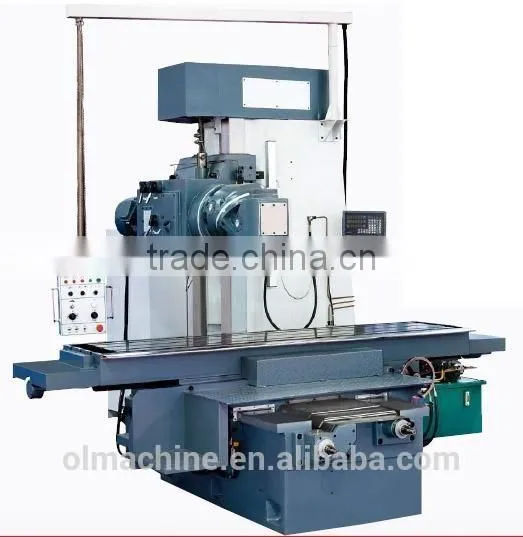

Bed Type Universal Milling Machine, Table 2100x500 2500x575mm

Negotiable MOQ: 1 set (Price negotiable depending on order volume and customization)

Key Specifications

Condition:

New

Model Number:

X715 X716

CNC or Not:

Normal

Shaanxi Olong Import And Export Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

China

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Model Number X715 X716

CNC or Not Normal

Certification CE ISO

Bed-type universal milling machine

		X716
Table size	mm	2500×575
Table travel(X,Y,Z)	mm	1800(2000)×600×900
Min. distance from spindle axis to table surface	mm	30
Min. distance from vertical spindle nose to table surface	mm	49
Distance from vertical spindle axis to column guideway	mm	110
Spindle speed	rpm	40-1200
No/Width/Distance of T-slot	mm	3-22-152
Spindle taper		ISO50
Longitudinal, transverse feed speed	mm/min	20-2200
Rapid feed speed(X,Y)	mm/min	3000
Feed speed range	mm/min	12-1320
Rapid feed speed(Z)	mm/min	1800
motor power	kW	11
Max. load	kg	3000
dimension (L×W×H)	mm	4300×3200×3300
weight	kg	10000

Bed-type universal milling machine

		X715
Table size	mm	2100×500
Table travel (X,Y)	mm	1500×670
Vertical travel of headstock	mm	0-670
No/Width/Distance of T-slot	mm	4-20-100
Max. load	kg	2000
Feed speed	mm/min	20-1800
Rapid feed speed	mm/min	3500
Spindle speed range	rpm	35-1345
Spindle speed step		12
Distance from spindle axis to column guideway	mm	610
motor power	kW	7.5
dimension	mm	3300×2380×2750
weight	kg	7300
