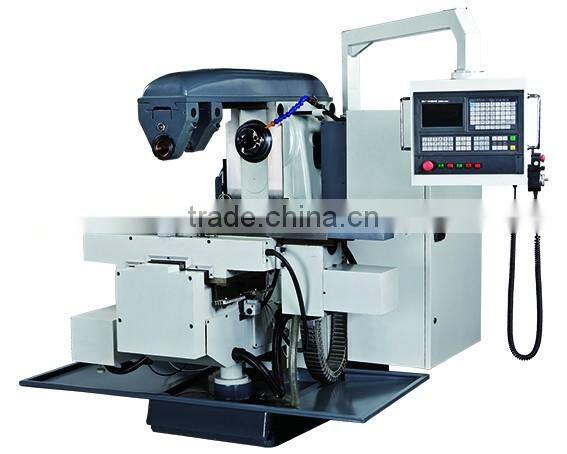

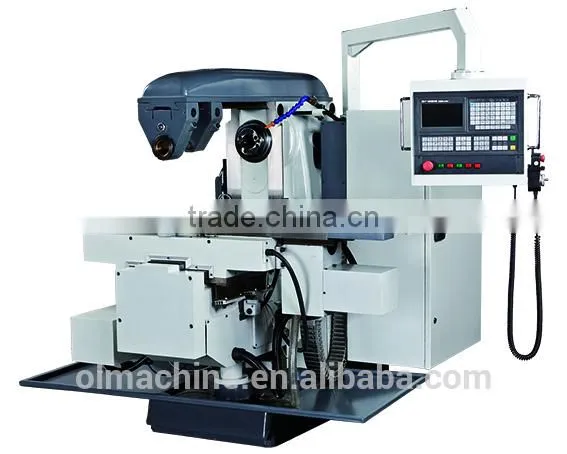

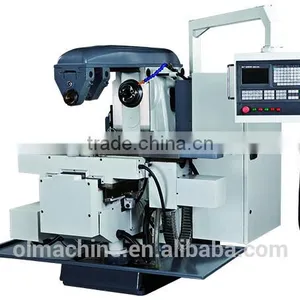

CNC Horizontal Knee-type Milling Machine, Table 1320x320 1700x400mm
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Model Number:
XK6032 XK6040
Type:
Horizontal
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
CNC Vertical Knee-type Milling Machine, Table 1320x320 1700x400mmNegotiableMOQ: 1 -
Bed Type Universal Milling Machine, Table 2100x500 2500x575mmNegotiableMOQ: 1
-
Bed Type Vertical Milling Machine, Table 1400x400 1525x320mmNegotiableMOQ: 1
-
Vertical Knee-type Milling Machine, Table 320x1320 400x1700mmNegotiableMOQ: 1
-
Universal Knee-type Milling Machine, Table 320x1320 400x1700mmNegotiableMOQ: 1
Condition
New
Model Number
XK6032 XK6040
Type
Horizontal
CNC or Not
CNC
Certification
CE ISO
CNC horizontal knee-type milling machine
|
| XK6032 | XK6040 |
Table travel (X,Y,Z) | mm | 800×350×280 | 920×380×350 |
Table size | mm | 1320×320 | 1700×400 |
Number/Width/Distance of table T-slot | mm | 3-18-70 | 3-18-90 |
Max. load of table | kg | 320 | 500 |
Distance from spindle axis to table | mm | 20~370 | 30-410 |
Distance from column vertical guideway to the center of table | mm | 225~505 | 275-625 |
X,Y,Z Rapid feed speed | mm/min | 6000/3000/6000 | 6000/3000/6000 |
X,Y,Z Feed speed | mm/min | 6-3200/3-1600/6-3200 | 6-3200/3-1600/6-3200 |
Taper of spindle |
| ISO50(7:24) | ISO50(7:24) |
Spindle speed range | rpm | 30-1500 (18 ) | 30-1500 (18 ) |
Spindle motor power | kW | 7.5 | 11 |
Longitudinal, transverse feed motor torque | N.m | 12 | 12 |
Vertical feed motor torque | N.m | 22 | 22 |
Max. spindle torque | N.m | 1000 | 1000 |
dimension | mm | 1929×2055×1960 | 2310×2200×2394 |
weight | kg | 2800 | 4250 |
