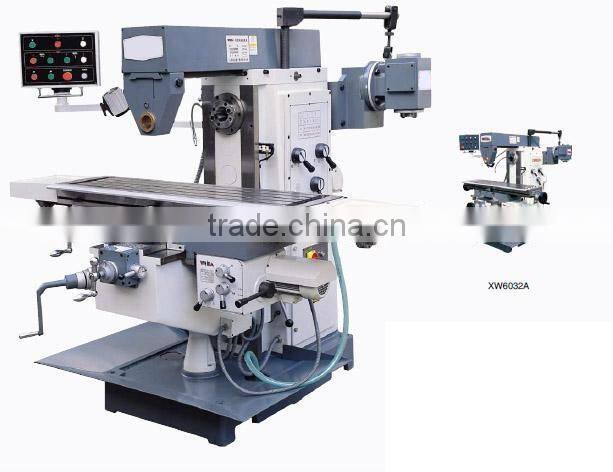

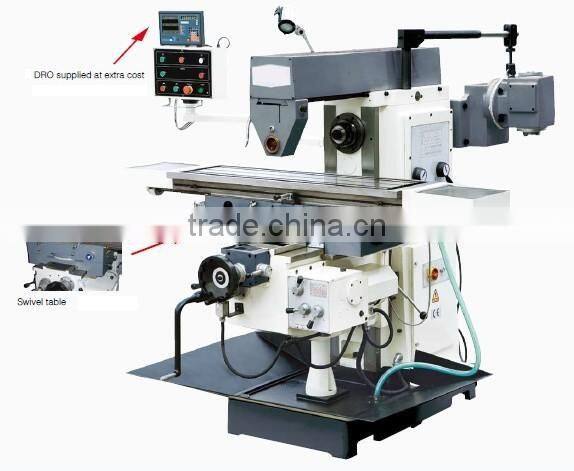

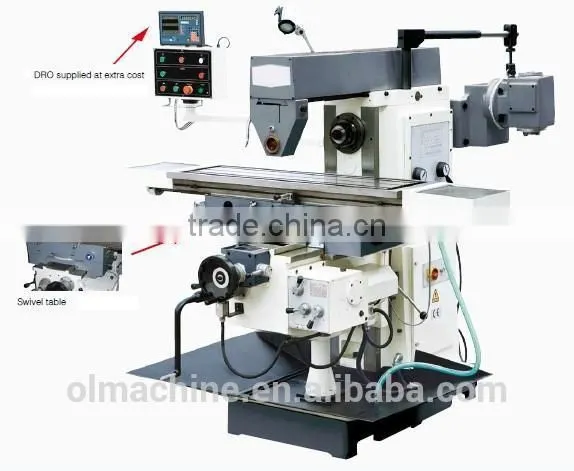

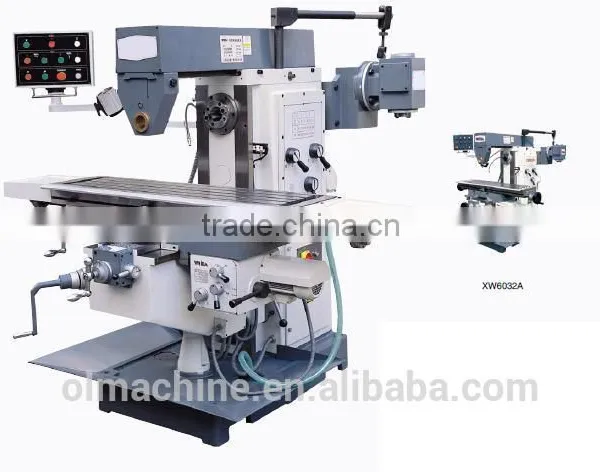

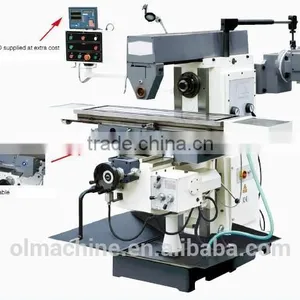

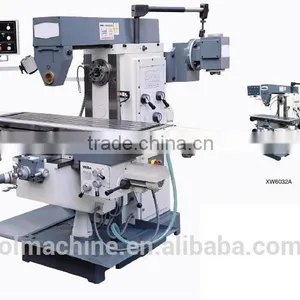

Vertical Knee-type Milling Machine, Universal Knee-type Milling Machine, Table 1320x320 1320x360mm

Negotiable MOQ: 1 set (Price negotiable depending on order volume and customization)

Key Specifications

Condition:

New

Model Number:

XW6136 XW6032A XW6032B

CNC or Not:

Normal

Shaanxi Olong Import And Export Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

China

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Model Number XW6136 XW6032A XW6032B

CNC or Not Normal

Certification CE ISO

Vertical / Universal Knee-type milling machine

		XW6136
Table size	mm	1320×360
Table travel (X,Y)	mm	1000×300
Number/Width/Distance of T-slot	mm	3-14-95
Spindle taper		ISO50
Distance between spindle axis and table surface	mm	0-400
Distance between spindle axis and ram surface	mm	175
Spindle speed range (steps)	rpm	58-1800/12
Distance between vertical spindle axis and vertical guideway	mm	320
Ram travel	mm	500
Table feed speed range (X), (Y),( Z )	mm/min	22-420/22-393/10-168
Spindle motor power	kW	4
dimension (L×W×H)	mm	2070×2050×1950
weight	kg	2300

Vertical / Universal knee-type milling machine

		XW6032A	XW6032B
Table size	mm	1320×320	1320×320
Table travel	mm	800(750)×300	1000×300(manual)
Number/Width/Distance of T-slot	mm	5-14-63	5-14-63
Spindle taper		ISO50	ISO50
Distance from spindle axis to table surface	mm	0-400	0-400
Distance between spindle axis and boom	mm	175	175
Spindle speed range	rpm	58-1800	58-1800
Spindle motor power	kW	4	4
dimension	mm	2070×1900×1850	2070×2020×1850
weight	kg	2100	2200
