Vertical Knee-type Milling Machine, Universal Knee-type Milling Machine, Table 320x1320 400x1700mm

FOB Price

Negotiable

1 (Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New		Model Number	X5040 X6140 X5032 X6132
CNC or Not	Normal		Certification	CE ISO

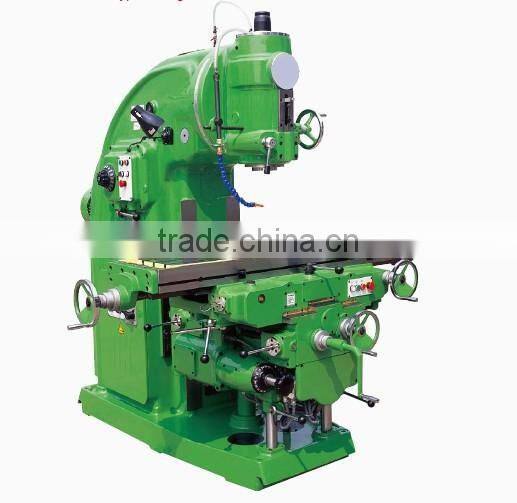

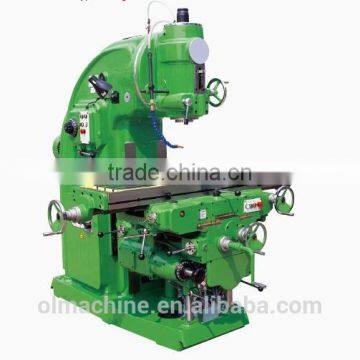

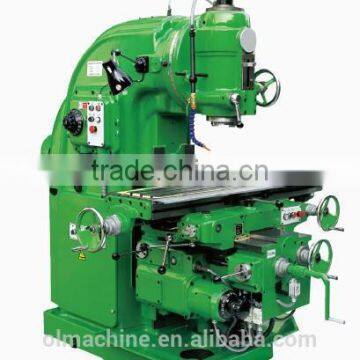

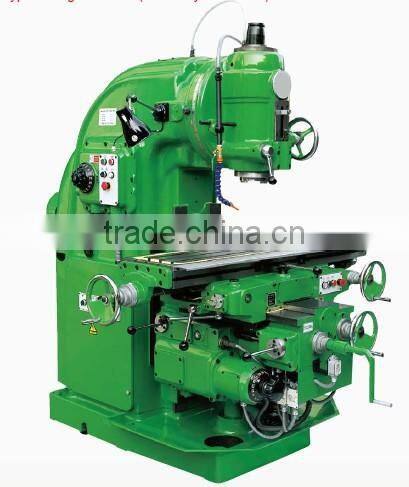

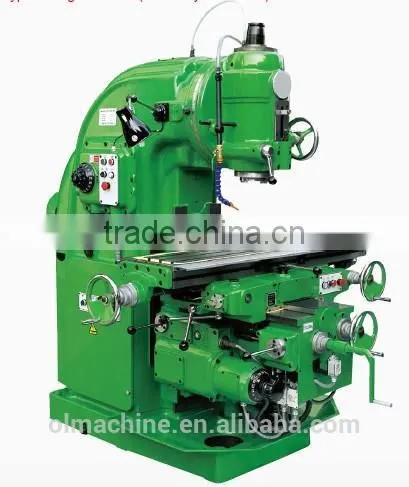

Vertical knee-type milling machine

		X5040
Table size	mm	1700×400
Number/Width/Distance of T-slot	mm	3-18-90
Max. load of table	kg	800
Longitudinal travel (manual/auto)	mm	900/880
Transverse travel (manual/auto)	mm	315/300
Vertical travel (manual/auto)	mm	385/365
Cutting feed speed	mm/min	X,Y: 23.5-1180, Z: 8-394
Rapid feed speed	mm/min	X: 2300, Y: 2300, Z: 770
Spindle speed range	rpm	30-1500
Spindle speed step		18
Spindle travel	mm	85
Max. swivel angle of spindle		±45°
Distance between spindle nose and table surface	mm	130-515
Spindle motor power	kW	11
dimension	mm	2556×2159×2328
weight	kg	4250

Vertical knee-type milling machine (Driven by ball screw)

		X5032
Table size	mm	1320×320
Number/Width/Distance of T-slot	mm	3-18-70
Max. load of table	kg	500
Longitudinal travel (manual/auto)	mm	700/680
Transverse travel (manual/auto)	mm	255/240
Vertical travel (manual/auto)	mm	350/330
Cutting feed speed	mm/min	X:23.5-1180,Y:15-786,Z:8-394
Rapid feed speed	mm/min	X:2300,Y:1533,Z:770
Spindle speed range	rpm	30-1500
Spindle speed step		18
Spindle travel	mm	70
Max. swivel angle of spindle		±45°
Distance between spindle nose and table surface	mm	60/410
Spindle motor power	kW	7.5
dimension	mm	2294×1770×1960
weight	kg	2800

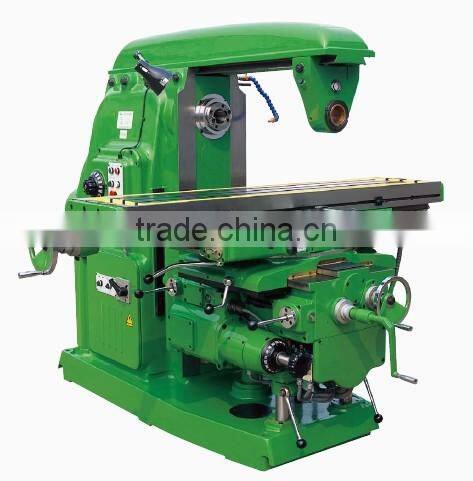

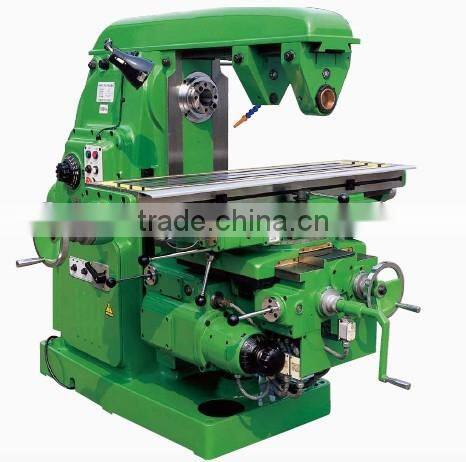

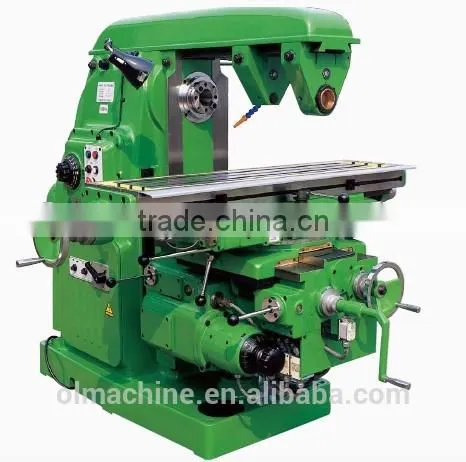

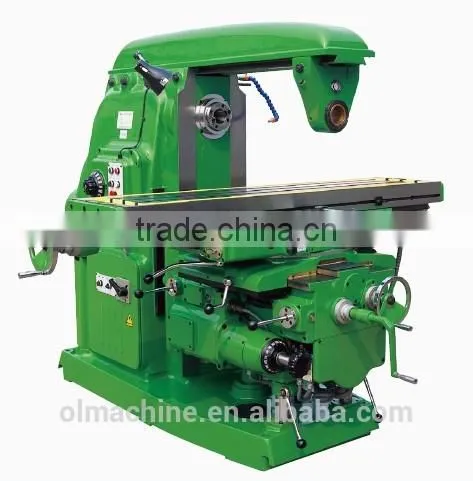

Universal knee-type milling machine

		X6140
Table size	mm	1700×400
Number/Width/Distance of T-slot	mm	3-18-90
Max. load of table	kg	800
Longitudinal travel (manual/auto)	mm	900/880
Transverse travel (manual/auto)	mm	315/300
Vertical travel (manual/auto)	mm	380/360
Cutting feed speed	mm/min	X,Y: 23.5-1180, Z: 8-394
Rapid feed speed	mm/min	X:2300,Y:2300,Z:770
Spindle speed range	rpm	30-1500
Spindle speed step		18
Distance between spindle axis and table surface	mm	30-410
Spindle motor power	kW	11
dimension	mm	2556×2159×1800
weight	kg	3850

Universal knee-type milling machine (Driven by ball screw)

		X6132
Table size	mm	1320×320
Number/Width/Distance of T-slot	mm	3-18-70
Max. load of table	kg	500
Longitudinal travel (manual/auto)	mm	700/680
Transverse travel (manual/auto)	mm	255/244
Vertical travel (manual/auto)	mm	320/300
Cutting feed speed	mm/min	X,Y:23.5-1180,Z:8-394
Rapid feed speed	mm/min	X:2300,Y:2300,Z:770
Spindle speed range	rpm	30-1500
Spindle speed step		18
Distance from table center to colum guideway	mm	215-470
Max. swivel angle of spindle		±45°
Distance from spindle axis to table surface	mm	30/350
motor power	kW	7.5
dimension	mm	2294×1770×1720
weight	kg	2650
