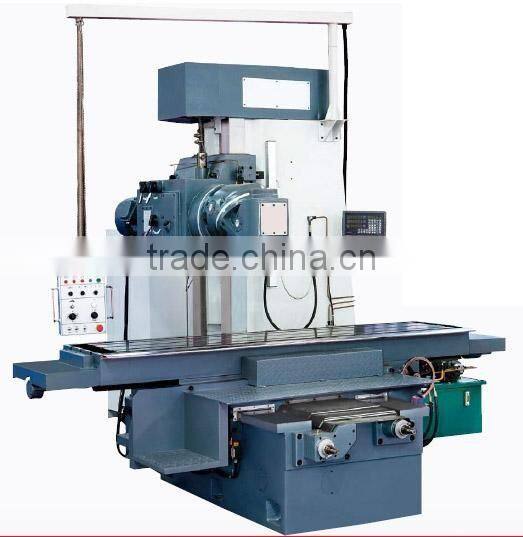

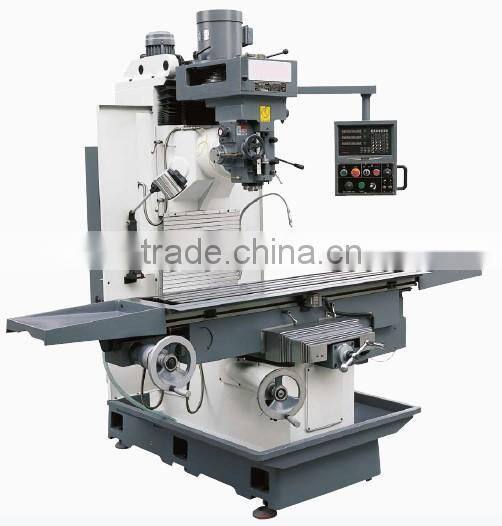

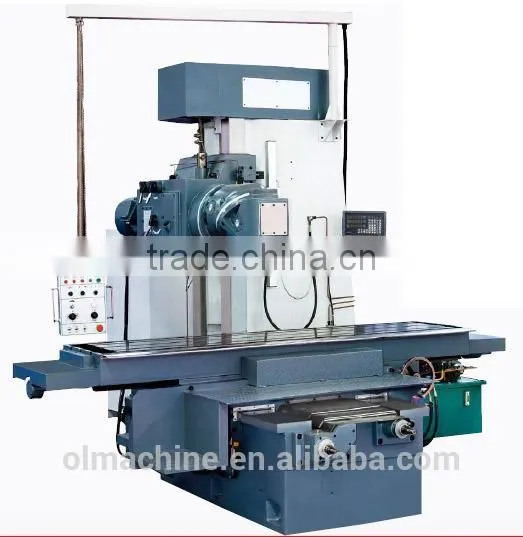

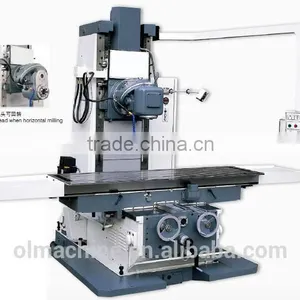

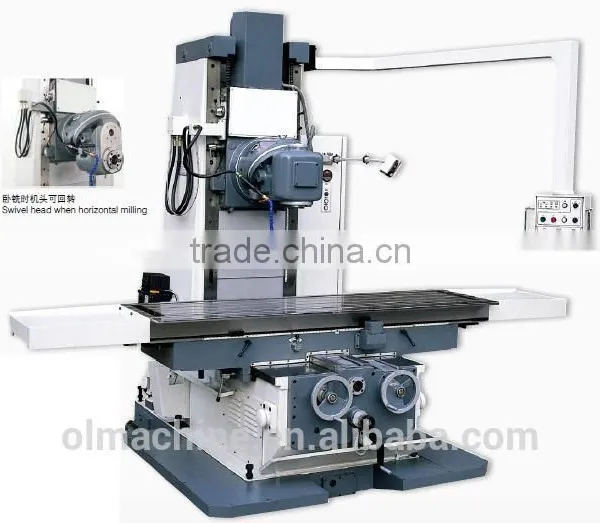

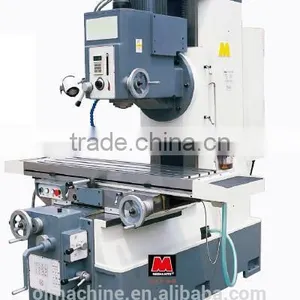

Bed type (universal) milling machine, table 1400x400 1525x320 2100x500 2500x575mm

X716

Table size

mm

2500×575

Table travel(X,Y,Z)

mm

1800(2000)×600×900

Min. distance from spindle axis to table surface

mm

30

Min. distance from vertical spindle nose to table surface

mm

49

Distance from vertical spindle axis to column guideway

mm

110

Spindle speed

rpm

40-1200

No/Width/Distance of T-slot

mm

3-22-152

Spindle taper

ISO50

Longitudinal, transverse feed speed

mm/min

20-2200

Rapid feed speed(X,Y)

mm/min

3000

Feed speed range

mm/min

12-1320

Rapid feed speed(Z)

mm/min

1800

motor power

kW

11

Max. load

kg

3000

dimension (L×W×H)

mm

4300×3200×3300

weight

kg

10000

X715

Table size

 mm

2100×500

Table travel (X,Y)

mm

1500×670

Vertical travel of headstock

 mm

0-670

No/Width/Distance of T-slot

 mm

4-20-100

Max. load

 kg

2000

Feed speed

 mm/min

20-1800

Rapid feed speed

 mm/min

3500

Spindle speed range

 rpm

35-1345

Spindle speed step

12

Distance from spindle axis to column guideway

 mm

610

motor power

 kW

7.5

dimension

 mm

3300×2380×2750

weight

 kg

7300

X713

Table size

mm

1525×320

table travel

mm

1050×470

No/Width/Distance of T-slot

mm

3-14-80

Distance between spindle nose and table surface

mm

70-570

Distance from spindle axis to column guideway

mm

450

Spindle taper

ISO40

Spindle quill travel

mm

127

Spindle speed range

rpm

70-3620

Spindle motor power

HP

5

dimension

mm

2565×2045×2290

weight

 kg

2300

XA7140

Table size

mm

1400×400

Table travel

mm

800×400

No/Width/Distance of T-slot

mm

3-18-100

Max. load

kg

800

Distance from spindle axis to column guideway

mm

520

Distance from spindle nose to table surface

mm

150-650

Spindle taper

ISO50

Quill travel

mm

105

Spindle speed range

rpm

18-1800

dimension

mm

2290×1840×2120

motor power

kW

7.5

weight

kg

3860
