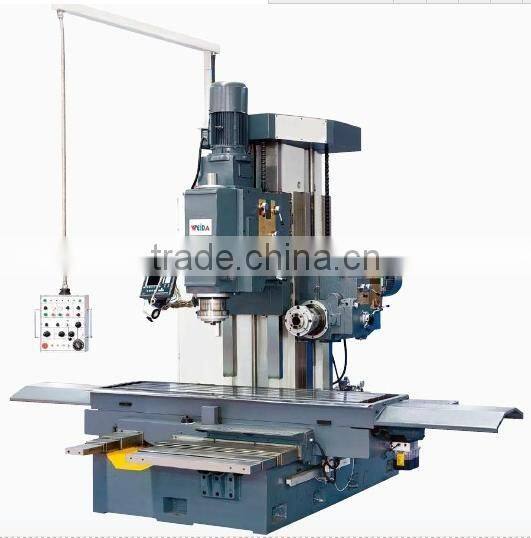

Universal vertical/horizontal boring & milling machine
|
MODEL
|
|
TX706
|
|
Table size
|
mm
|
2400×650
|
|
Table travel(X,Y)
|
mm
|
1630×550
|
|
Vertical travel of horizontal spindle
|
mm
|
800
|
|
Vertical travel of vertical spindle
|
mm
|
800
|
|
Min. distance from hor. spindle axis to table
|
mm
|
20
|
|
Number/Width/Distance of T-slot
|
mm
|
5-22-100
|
|
Spindle taper
|
|
(V)ISO50 (H)ISO50
|
|
Spindle quill travel
|
mm
|
(V)190 (H)190
|
|
Spindle speed range
|
rpm
|
(V)19-860 (H)19-860
|
|
Spindle speed steps
|
|
(V)12(H)12
|
|
Longitudinal, transverse feed speed range stepless
|
mm/min
|
20-2200
|
|
Longitudinal, transverse rapid feed speed range
|
mm/min
|
2200
|
|
Quill auto-feed speed steps
|
|
(V)6(H)6
|
|
Quill auto-feed speed range
|
mm/r
|
(V)0.05-0.4(H)0.05-0.4
|
|
Spindle motor power
|
kW
|
(V)11(H)11
|
|
Feed motor power
|
kW
|
4.4
|
|
Max. load of worktable
|
kg
|
3000
|
|
Overall dimension (L×W×H)
|
mm
|
4100×3700×4250
|
|
Machine weight
|
kg
|
17000
|
