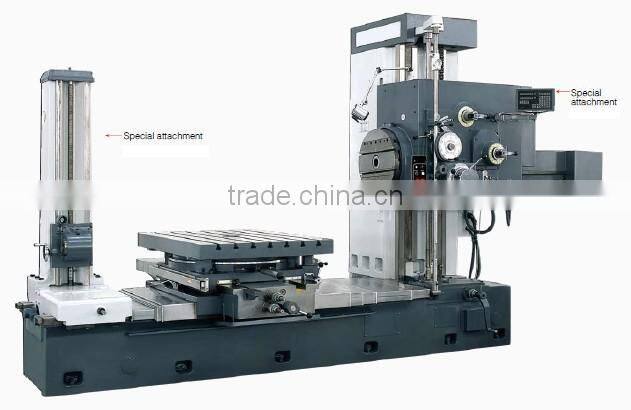

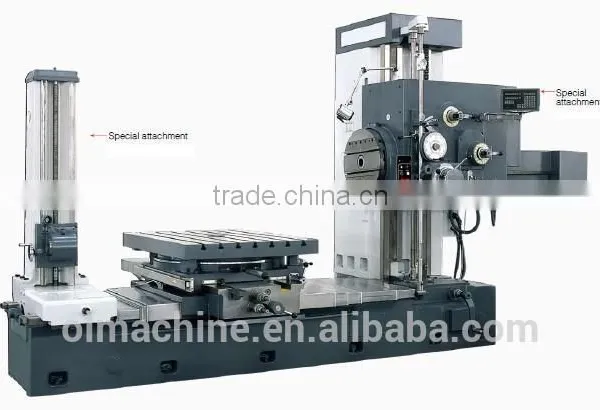

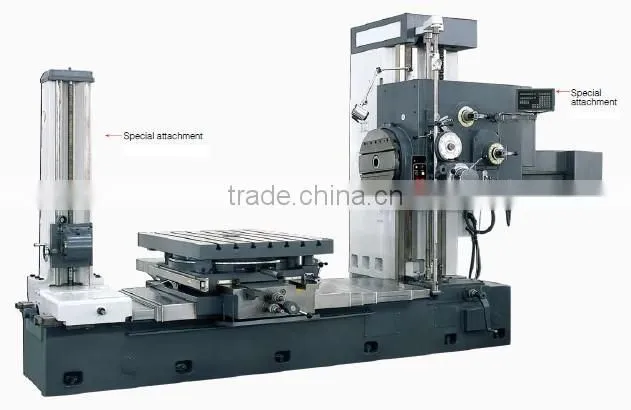

Horizontal Boring and Milling Machine TPX611, Dia 110mm, Table 1320x1010mm, Max Load 2500kgs
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
CNC or Not:
Normal
Certification:
ISO CE
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
CNC Horizontal Boring and Milling Machine TPK611C, Dia 110mm, Table 1320x1010mm, Max Load 2500kgsNegotiableMOQ: 1 -
Universal Vertical Horizontal Boring and Milling Machine, Table 2400x650mmNegotiableMOQ: 1
-
Horizontal Boring and Milling Machine, Dia 110 130mm, Table 1100x960 1250x1100 1600x1400 1800x1600mm, Max Load 2.5t 3t 8t 10tNegotiableMOQ: 1
-
Horizontal Boring and Milling Machine, Dia 110 130mm, Table 1320x1010mm, Max Load 5000kgsNegotiableMOQ: 1
-
T44K Cut to Length Machine LineNegotiableMOQ: 1
Condition
New
CNC or Not
Normal
Certification
ISO CE
Horizontal boring and milling machine
|
Specifications
|
Units
|
TP(X)611
|
|
Table size
|
mm
|
1320×1010
|
|
Longitudinal/transverse travel of worktable
|
mm
|
1100×850
|
|
Number/Width/Distance of T-slot
|
mm
|
7-22-125
|
|
Vertical travel of headstock
|
mm
|
900
|
|
Max. load of worktable
|
kg
|
2500
|
|
Spindle diameter
|
mm
|
110
|
|
Quill travel
|
mm
|
550
|
|
Facing head tool holder’s radial travel
|
mm
|
160
|
|
Max. drilling diameter
|
mm
|
50
|
|
Spindle taper
|
|
MT6
|
|
Spindle speed range
|
rpm
|
12-950
|
|
Facing head speed range
|
rpm
|
4-160
|
|
Spindle motor power
|
kW
|
6.5/8
|
|
Rapid feed motor power
|
kW
|
3
|
|
Headstock lifting and lowering,worktable rapid feed speed
|
m/min
|
1.8
|
|
Overall dimension
|
mm
|
5030×2300×2760
|
