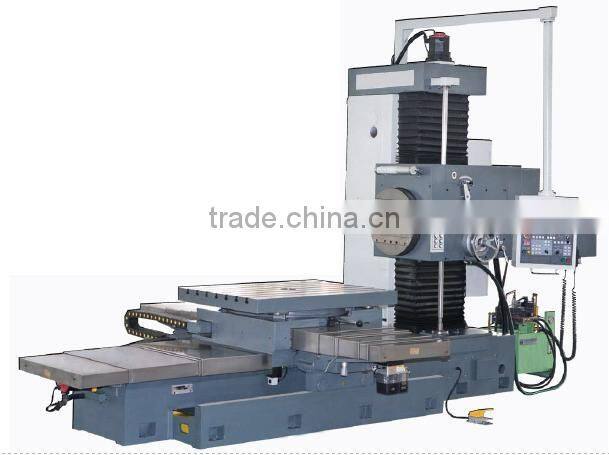

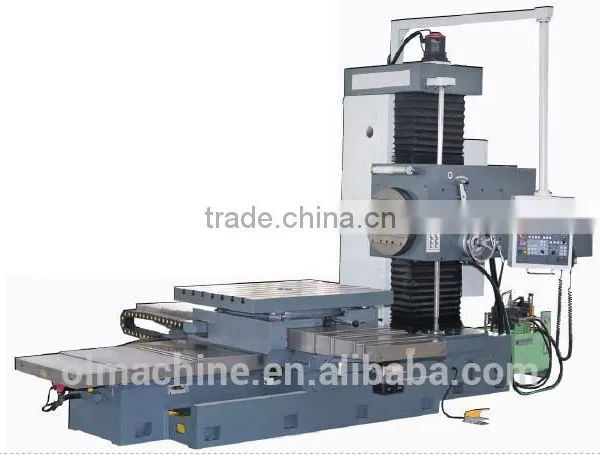

Help CenterCNC Horizontal Boring and Milling Machine TPK611C, Dia 110mm, Table 1320x1010mm, Max Load 2500kgs
Related Products
-
Universal Vertical Horizontal Boring and Milling Machine, Table 2400x650mmNegotiableMOQ: 1 -
Horizontal Boring and Milling Machine, Dia 110 130mm, Table 1100x960 1250x1100 1600x1400 1800x1600mm, Max Load 2.5t 3t 8t 10tNegotiableMOQ: 1
-
Horizontal Boring and Milling Machine, Dia 110 130mm, Table 1320x1010mm, Max Load 5000kgsNegotiableMOQ: 1
-
Horizontal Boring and Milling Machine TPX611, Dia 110mm, Table 1320x1010mm, Max Load 2500kgsNegotiableMOQ: 1
-
T44K Cut to Length Machine LineNegotiableMOQ: 1
CNC boring and milling machine
|
Specifications
|
Units
|
TPK611C
|
|
Spindle diameter
|
mm
|
110
|
|
Longitudinal travel of table
|
mm
|
1350
|
|
Transverse travel of table
|
mm
|
1250
|
|
Headstock vertical travel
|
mm
|
900
|
|
Spindle axial travel
|
mm
|
550
|
|
Max. boring diameter
|
mm
|
240
|
|
Max. drilling diameter
|
mm
|
50
|
|
Max. allowable torque on spindle
|
N.m
|
1100
|
|
Table size
|
mm
|
1320×1010
|
|
Max. load of table
|
kg
|
2500
|
|
Distance from spindle nose to table surface
|
mm
|
5-905
|
|
Taper of spindle
|
|
BT50
|
|
Max. machining diameter of facing head
|
mm
|
630
|
|
Feeding range
|
mm/min
|
0.2-330
|
|
Rapid feed speed
|
mm/min
|
5000
|
|
Spindle speed range
|
rpm
|
12-1100
|
|
Facing head speed range
|
rpm
|
4-130
|
|
Feed speed range
|
mm/min
|
0.5-1000
|
|
Spindle motor power
|
kW
|
11/15
|
|
Positioning accuracy
|
mm
|
0.02/500
|
|
Repeat positioning accuracy
|
mm
|
0.014/500
|
|
Overall dimension
|
mm
|
5375×2995×3035
|
|
Machine weight
|
kg
|
12300
|
