Digital Multimeter

Digital Multimeter photo-1
US$ 25 - 35 MOQ: 5 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Jiangsu, China
Brand Name:
MS
Model Number:
MY68
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin Jiangsu, China
Brand Name MS
Model Number MY68
Measuring Current Range DC current: 400μ/4000μ/40m/400mA±1.2%, 10A±2.0%
Measuring Voltage Range DC voltage: 400m/4/40/400V±0.7%, 1000V±0.8%
Measuring Resistance Range 400/4k/40k/400k/4MΩ±1.2%, 40MΩ±2.0%
Measuring Capacitance Range 4nF±5.0%, 40n/400n/4μ/40μ/200μF±3.0%
Measuring Inductance Range 10/100/1000/10k/200kHz±2.0%
Operating Temperature 0-40degree
Dimensions 91X189X31.5MM

Specifications

High quality digital multimeter can be supplied to our customers

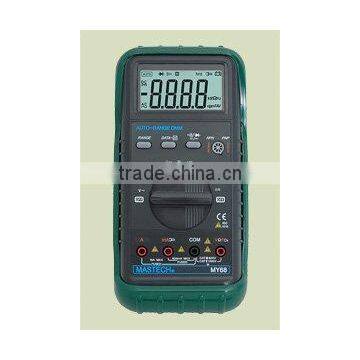

MY68
3 3/4 AUTORANGE DIGITAL MULTIMETER

FEATURES
Conform to the IEC1010-1 standard CAT III 600V and CAT II 1000V
SMT application
Display: 3999 counts
DC voltage: 400m/4/40/400V±0.7%, 1000V±0.8%
AC voltage: 400mV±3.0%, 4/40/400V±0.8%, 750V±1.0%
DC current: 400μ/4000μ/40m/400mA±1.2%, 10A±2.0%
AC current: 400μ/4000μ/40m/400mA±1.5%, 10A±3.0%
DC current (with clamp MS3302): 40A/400A(0.1A/1mV)±0.8%
AC current (with clamp MS3302): 40A/400A(0.1A/1mV)±1.0%
Resistance: 400/4k/40k/400k/4MΩ±1.2%, 40MΩ±2.0%
Capacitance: 4nF±5.0%, 40n/400n/4μ/40μ/200μF±3.0%
Frequency: 10/100/1000/10k/200kHz±2.0%
hFE: 1 ~ 1000
Diode test
Continuity test
Auto power off
Data hold
Power: 6F22 (9V) x 1
Size: 91mm x 189mm x 31.5mm
