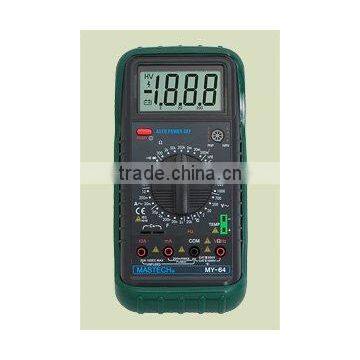

digital multimeter MY64

Name: digital multimeter MY64
Brand: MS
Availability: InStock

FOB Price

USD $18 - $28 / Piece

5 Pieces(Min.Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Jiangsu, China	Brand Name	MS
Model Number	MY64	Measuring Current Range	DC current: 2m/20mA±0.8%, 200mA±1.5%, 10A±2.0%
Measuring Voltage Range	DC voltage: 200mV±1.2%, 2/20/200V±0.8%, 700V±1.2%±0.5%, 1000V±0.8%	Measuring Resistance Range	200/2k/20k/200k/2MΩ±0.8%, 20MΩ±1.0%, 200MΩ±5.0%
Measuring Capacitance Range	2n/20n/200n	Measuring Inductance Range	none
Operating Temperature	0-40degree	Dimensions	91X189X31.5MM

High quality digital multimeter can be supplied to our customers

MY64

3 1/2 DIGITAL MULTIMETER

FEATURES

	32 Ranges
	Large LCD Display
	Auto power off
	DC voltage: 200m/2/20/200V±0.5%, 1000V±0.8%
	AC voltage: 2/20/200V±0.8%, 700V±1.2%
	DC current: 2m/20mA±0.8%, 200mA±1.5%, 10A±2.0%
	AC current: 2m/20mA±1.0%, 200mA±1.8%, 10A±3.0%
	Resistance: 200/2k/20k/200k/2MΩ±0.8%, 20MΩ±1.0%, 200MΩ±5.0%
	Capacitance: 2n/20n/200n/2µ/20µF±4.0%
	Frequency: 20kHz±1.5%
	Temperature: -20°C ~ 1000°C
	Continuity checking with buzzer
	Diode check: Test current 1.0mA, test voltage 2.8V
	Power: 6F22 (9V) x 1
	hFE: 1 ~ 1000
	Display: 30mm x 60mm LCD
	Size: 91mm x 189mm x 31.5mm
	Weight: 310g (including battery)
