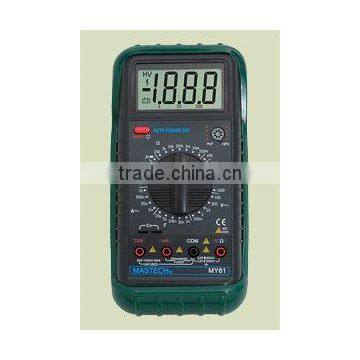

Digital Multimeter

Digital Multimeter photo-1
US$ 15 - 25 MOQ: 5 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Jiangsu, China
Brand Name:
MS
Model Number:
MY61
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin Jiangsu, China
Brand Name MS
Model Number MY61
Measuring Current Range DC current: 2m/20mA±0.8%, 200mA±1.5%, 10A±2.0%
Measuring Voltage Range DC voltage: 200mV±1.2%, 2/20/200V±0.8%, 700V±1.2%±0.5%, 1000V±0.8%
Measuring Resistance Range 200/2k/20k/200k/2MΩ±0.8%, 20MΩ±1.0%, 200MΩ±5.0%
Measuring Capacitance Range 2n/20n/200n
Measuring Inductance Range none
Operating Temperature 0-40degree
Dimensions 29X16X11MM

Specifications

High quality digital multimeter can be supplied to our customers

MY61
3 1/2 DIGITAL MULTIMETER

FEATURES
Display: 30mm x 60mm
LCD Display: 24mm
Auto power off
Size: 91mm x 189mm x 31.5mm
Weight: 310g (including battery)
Continuity checking with buzzer
Power: 6F22 (9V) x 1
DC voltage: 200mV±1.2%, 2/20/200V±0.8%, 700V±1.2%
AC voltage: 200m/2/20/200V±0.5%, 1000V±0.8%
DC current: 2m/20mA±0.8%, 200mA±1.5%, 10A±2.0%
AC current: 2m/20mA±1.0%, 200mA±1.8%, 10A±3.0%
Resistance: 200/2k/20k/200k/2MΩ±0.8%, 20MΩ±1.0%, 200MΩ±5.0%
Capacitance: 2n/20n/200n/2µ/20µF±4.0%
Diode check: Test current 1.0mA, test voltage 2.8V
hFE: 1 ~ 1000
