Digital Multimeter MY65

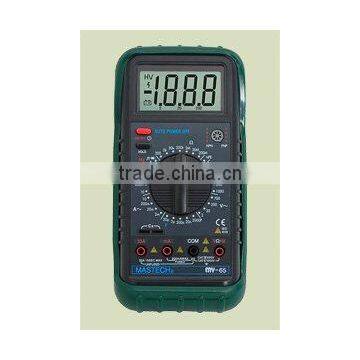

Digital Multimeter MY65 photo-1
US$ 25 - 35 MOQ: 5 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Jiangsu, China
Brand Name:
MS
Model Number:
MY65
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin Jiangsu, China
Brand Name MS
Model Number MY65
Measuring Current Range DC current: 2m/20mA±0.8%, 200mA±1.5%, 10A±2.0%
Measuring Voltage Range DC voltage: 200mV±1.2%, 2/20/200V±0.8%, 700V±1.2%±0.5%, 1000V±0.8%
Measuring Resistance Range 200/2k/20k/200k/2MΩ±0.8%, 20MΩ±1.0%, 200MΩ±5.0%
Measuring Capacitance Range 2000p/2n/20n/200n
Measuring Inductance Range none
Operating Temperature 0-40degree
Dimensions 91X189X31.5MM

Specifications

High quality digital multimeter can be supplied to our customers

MY65
3 1/2 DIGITAL MULTIMETER

FEATURES
  Complete Function
  Large LCD display
  Display: 30 x 60mmLCD, max.reading 1999 counts
  DC Voltage: 200mV±0.05%, 2/20/200V±0.1%, 1000V±0.15%
  AC Voltage: 2V±0.5%, 20/200V±0.6%, 700V±0.8%
  DC Current: 2m/20mA±0.5%, 200mA±0.8%, 20A±2%
  AC Current: 2m/20mA±0.8%, 200mA±1.2%, 20A±2.5%
  Resistance: 200Ω±0.5%, 2K/20K/200K/2MΩ±0.3%, 20MΩ±0.5%, 200MΩ±5%
  Capacitance: 2000p/20n/200n/2μ/20μF±4.0%
  Frequency: 20KHz±1.5%
  Continuity checking with buzzer
  Diode check: Test current 0.8mA, Test voltage 3V
hFE: 1~1000
  Power source: 6F22(9V) x 1
  Size Weight: 91mm x 189mm x 31.5mm 310g (including battery)
