1. Typical Applications
The pulverizer is used for grinding the sample material of any kind of hardness to analyzable fineness quickly for component analysis.
Especiallly suitable for
The pulverizer is especially suitable for sample preparation work in the laboratory of industrials of coal, electricity, nonferrous metal, metallurgy, chemic, environment-friendly department, scientific research and so on.
2. Advantages
-CE certifcate, meets ISO standard safety operation requirement;
-Quick grinding speed, even particle size, smooth running and easy to clean worktable;
-The motor of the pulverizer is special made with longer service life;

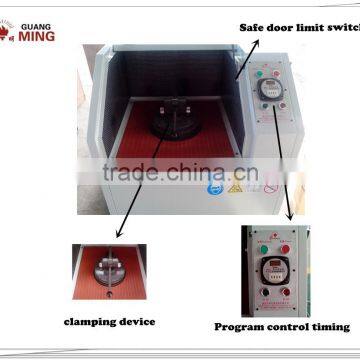

-Full-sealed design and limit switch, stop running automatic when machine's door is open;

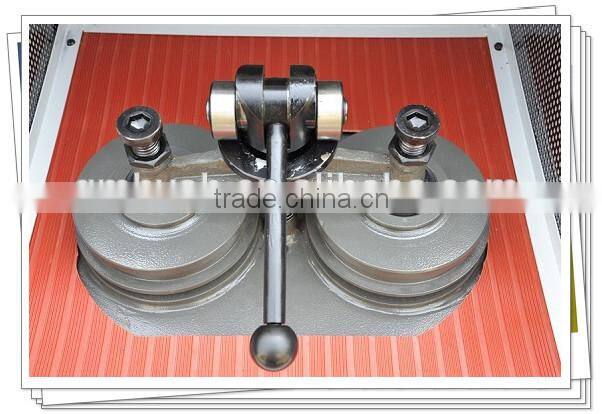

-Adopts roll bear clamping device, which makes lamping very easy, even for a lady worker;
-Optimized o-ring seal ensures no sample leak;
-It can work on the flat groud without fixing any base.

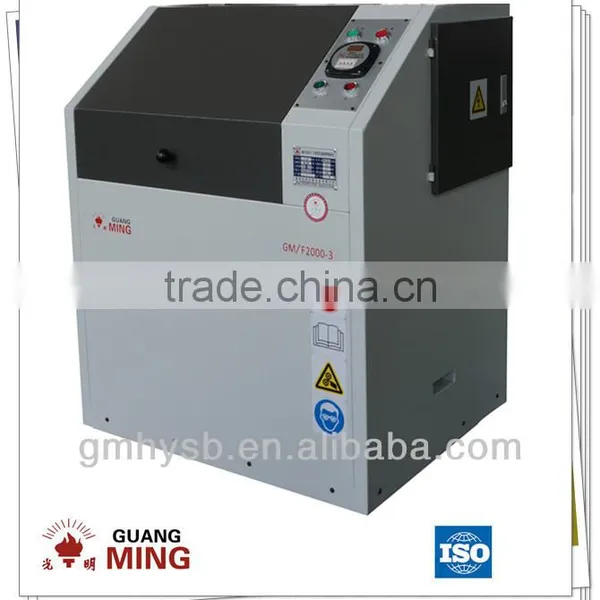

3.Technical Parameter
F2000 series pulverizer for laboratory mineral sample preparation | |||||||||
Model no. |
-AT |
-BT |
-1T |
-A |
-B |
-B2 |
-1 |
-2 |
-3 |
Bowl material |
Tungsten carbide |
High manganese stell |
|||||||
Sample quantity per time |
1 |
1 |
1 |
1 |
1 |
2 |
1 |
2 |
3 |
Feeding capacity(g/bowl) |
400-500 |
200-300 |
100-150 |
400-500 |
200-300 |
(200-300)*2 |
100-150 |
(100-150 )*2 | (100-150)*3 |
Grinding time(min) |
2-5 |
1-3 |
1-3 |
2-5 |
1-3 |
2-5 |
1-3 |
1-3 |
1-3 |
Feeding size(mm) |
≤26 |
≤20 |
≤16 |
≤26 |
≤20 |
≤20 |
≤16 |
≤16 |
≤16 |
Discharging size (mesh) |
80-300 | ||||||||
Dimension (mm) |
800x600x1000 |
||||||||
Total weight (kg) |
255 |
252 |
250 |
252 |
249 |
258 |
242 |
252 |
268 |
Motor power (kw) |
1.1(Specially made motor) |
||||||||
Working power supply (V) |
380V |
||||||||
Grinding bowl material:
Based on grinding material features and hardness, tungsten carbide, high manganese steel, chrome steel material grinding bowl are for optional.
Grinding bowl volume:
According to material feeding size and how mang gram sample need to grind per time, customer can choose bowl type of 100-150g, 200-300g, and 400-500g.

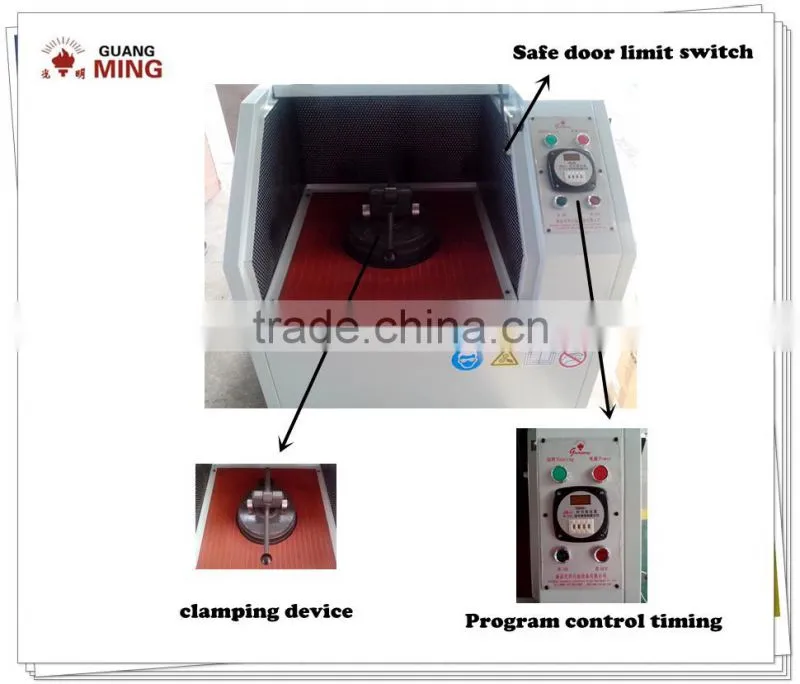

4. More details of the pulverizer machine
-Hermetic design, reduce dust and working noise greatly
- Labor-saving clamping device makes operation is easy and quick, timer control grinding time
- Can grind 2Pcs 200-300g sample each batch

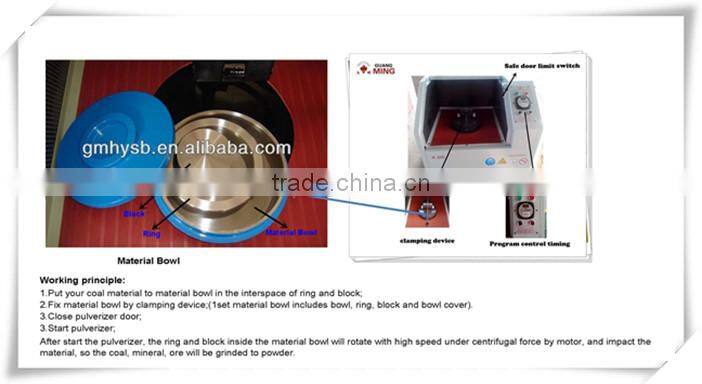

Working principle

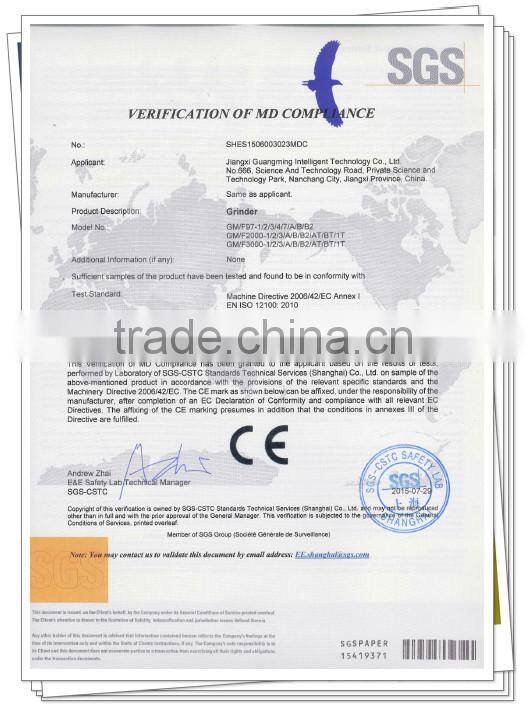

CE certificate of the vibrating powder pulverizer

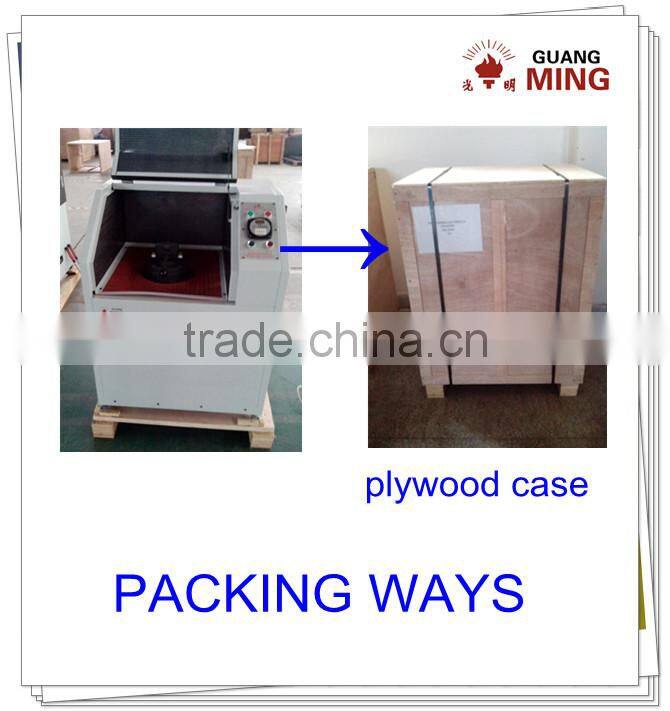

Packaging way: customized fumigation-free plywood case for each vibrating pulverizer;
Shipping way: by sea, by air as per customer's request.
-With 24hours prompt reply for laboratory pulverizer inquiry;
-On time delivery;
-Quality assurance, the small electric grinder has 12months warranty;
-Flexible shipping way as per customer's requirement.
1. What's the laboratory vibrating powder pulverizer warranty time:
=>One year except wear parts.
2. How long is the lead time?
=>It is flexible, normally 15-30days, 7days is also available when we have stock;
3. What's the small laboratory disintegrator power supply?
=> Our standard is 380V, 50Hz. We also customize motor to according to customer's local power supply.
Guangming is a leading laboratory sample preparation equipment manufacturer in China,and has 30years experience in the industry, laboratory jaw crusher, grinder, sieve shaker, sample rotary divider, calorimeter, sulphur tester are the featured products, these products are hot sell in worldwide and receive good feedback from customers.

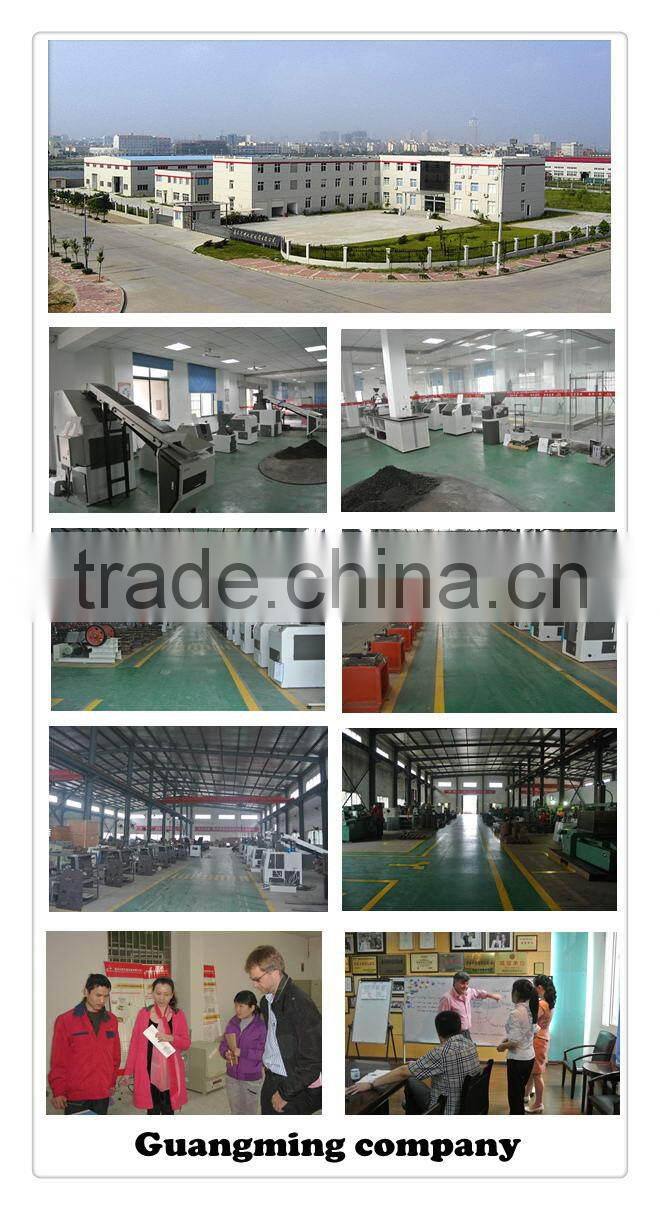

Guangming covers about40000 square meter, including 1800 square meters production workshop, 3800 square meter technical center, 2300 square meter staff living and dining space and so on. Guangmign factory has successfully passed SGS inspection.
Depending on rich experience and advanced technology, Guangming develop many patent products, such as the first set coal integrated sample preparation system, the first unmanned coal sample preparation system etc, and has our own intellectual-property rights.We also participated in national standards establishment, Our general manager is technical member of national standard technical committee.
Warmly welcome to contact us for inquiry of laboratory vibrating
powder pulverizer for sample preparation!
