Help CenterIntelligent Rotary Laboratory Grinder With Tungsten Carbide Grinding Bowl Suitable to Grind Hard Rock, Stone
Related Products
-
Intelligent Rotary Laboratory Pulverizer for Rock, Coal, Ore Sample GrindingUS$ 1 - 9,999MOQ: 1 Set -
Advanced Touch Screen Vibrating Pulverizer Laborabory Smaple Grinding Machine for Rock, Coal, OreUS$ 1,000 - 9,999MOQ: 1 Set
-
Laboratory Small Disc Mill Grinding Iron Ore&Mineral Sample for AnalysisUS$ 1 - 9,999MOQ: 1 Set
-
Laboratory Ring Pulverizer for Limestone PulverizerUS$ 1 - 99,999MOQ: 1 Set
-
Disc PulverizerUS$ 1 - 99,999MOQ: 1 Set
Specifications
High quality grinder*Lab use ring griner
*PLC intelligent control
*Labor-saving clamp device
*Failure alarm&inquiry system
Intelligent rotary laboratory grinder with tungsten carbide grinding bowl suitable to grind hard rock, stone
Highlight of the laboratory grinder
*Labor-saving clamping device;
*Safe door limit switch;
*Exact program control timing;
*Tungsten carbide, high manganese steel for choosing;
Typcal applications of the lab grinder
The grinder is used for grinding the sample material of any kind of hardness to analyzable fineness quickly for component analysis.
Especiallly suitable for
The grinder mill is especially suitable for sample preparation work in the laboratory of industrials of coal, electricity, nonferrous metal, metallurgy, chemic, environment-friendly department, scientific research and so on.
Working principle:
After start the motor, the ring and block inside the tungsten carbide material bowl will rotate with high speed under the force of centrifugal force, and impact the matrial, so the coal, mineral, ore will be grinded to analysis fineness
Advantages of the ingelligent lab grinder

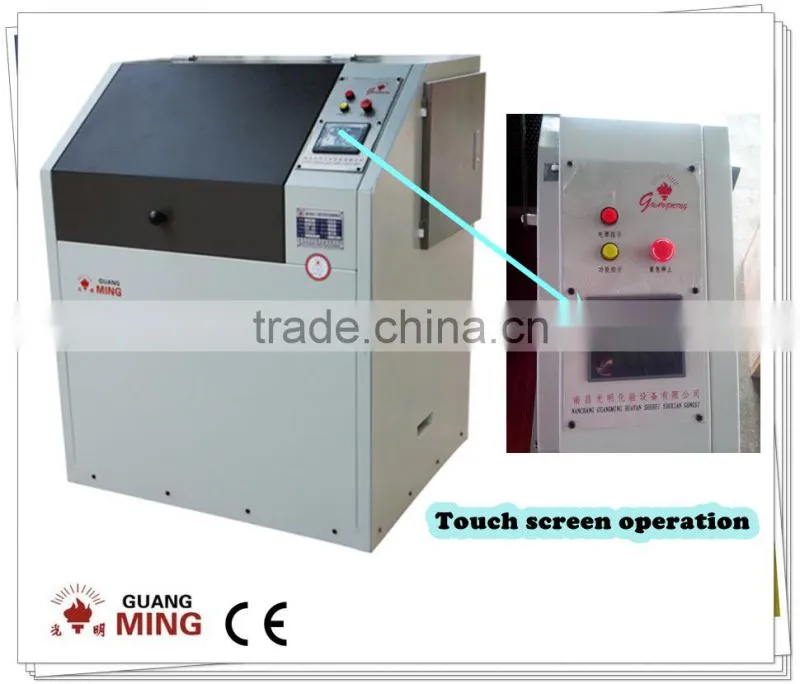

1. PLC intelligent cotrol, touch screen operation, and equipped failure alarm system and inquiry system;
2.Adopting foreign advanced technology which has advantages of quick grinding speed, even particle size, smooth running and easy to clean worktable;
3.The motor is special made with longer service life;
4.Full-sealed design and limit switch, which meets the environmental protectio and safety productin requirements;
5.Adopts roll bear clamping device, which makes lamping very easy, even for a lady worker;
6. Perfect noise insulation and equuipped with automatic dusting device, which meets the requirement of environment protection;
7.It can work on the flat groud without fixing any base.
F3000 series lab grinders technical pParameter
F3000 series lab Grinder for sample preparation | |||
Model no. |
F3000-AT |
F3000-BT |
F3000-1T |
Bowl material |
Tungsten carbide |
Tungsten carbide |
Tungsten carbide |
Feeding capacity(g/bowl) |
400-500 |
200-300 |
100-150 |
Grinding time(min) |
2-5 |
1-3 |
1-3 |
Feeding size(mm) |
≤26 |
≤20 |
≤16 |
Discharging size (mesh) |
80-300 | 80-300 |
80-300 |
Dimension (mm) |
800x600x1000 |
800x600x1000 |
800×600×1000 |
Total weight (kg) |
255 |
252 |
250 |
Motor power (kw) |
1.1(Specially made motor) |
||
Working power supply (V) |
380 |
||

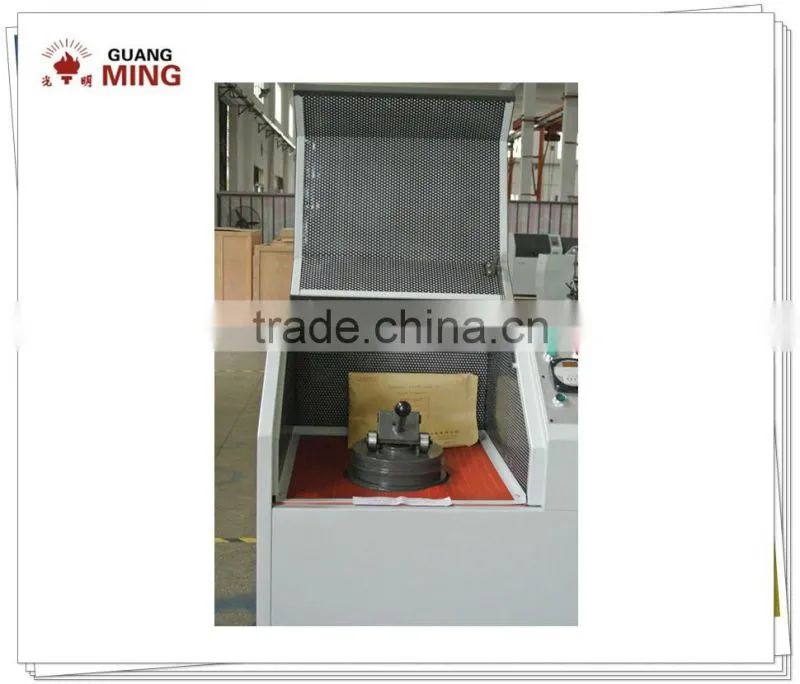

More picutres of the rotary laboratory grinder
Guangming other laboratory grinder
Disc Mill
F2000 Series Laboratory Grinder

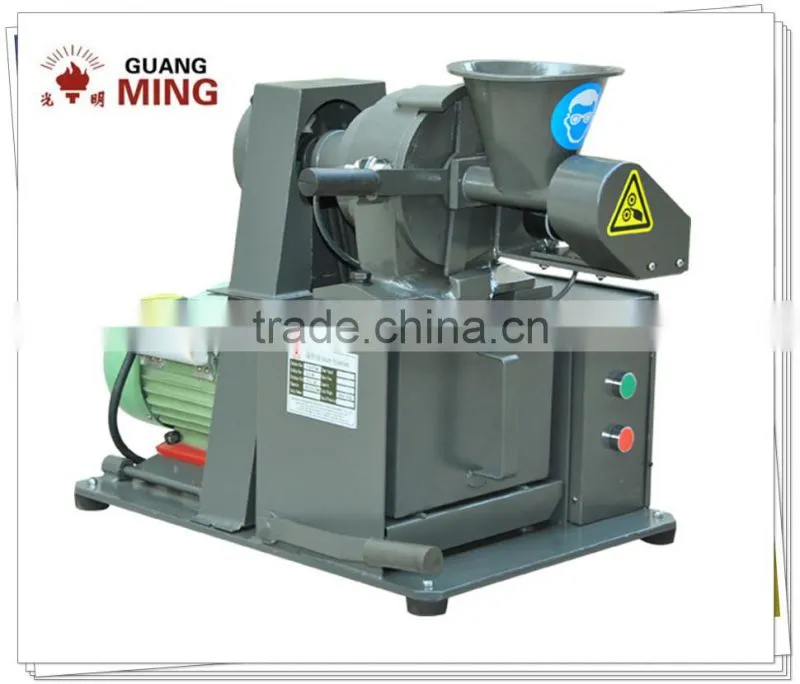

Laboratory Coal Grinder(Screw Type Feeding Material)
1.Engineer is available to service machinery oversea;
2.Customized laboratory equipment is available;

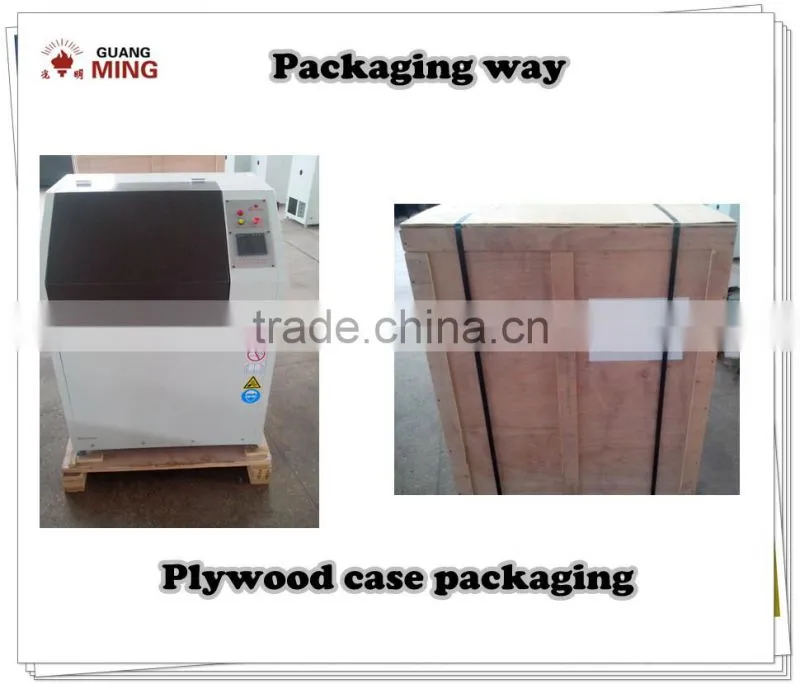

3.Flexible lead time and shipping way;
4.Quality and service is in the first place;
5.Superior scheme to solve your laboratory sample preparation problem;
The intelligent laboratory grinder -Guangming company is leading laboratory sample preparation equipment manufacturer that has 30years experience in the industry, laboratory jaw crusher, grinder, sieve shaker, divider, calorimeter, sulphur tester are the featured products are the mainly products
Guangming insists on independent innovation, depending on rich experience and advanced technology, Guangming develop many patent products, such as the first set coal integrated sample preparation system, the first unmanned coal sample preparation system etc.
Guangming covers 60ares, including 1800 square meters production workshop, 3800 square meter technical center, 2300 square meter staff living and dining space and so on.
