Laboratory Small Disc Mill Grinding Iron Ore&Mineral Sample for analysis

Specifications

Disc mill for lab
1.Suitable for grind ore, rock, coal in lab
2.High quality grinding disc
3.Compact design,high efficiency

 Laboratory Small Disc Mill Grinding Iron Ore&Mineral for Analysis





 Typcal Applications

The disc mill is used for grinding ore, mineral, coal, coke, gravel, limestone, gypsum sample material of any kind of hardness to analyzable fineness for component analysis continuously or intermittently.



Especially suitable for

The disc pulverizer is especially suitable for sample preparation work in the laboratory of industrials of coal, electricity, nonferrous metal, metallurgy, chemic, environment-friendly department, scientific research and so on.



Advantages

1. Rapid grinding by friction force.

2. Full-sealed design and no dust pollution which meets environmental protection requirements

3. Low working noisy and easy for sample collecting.

4. It can work normally on the flat ground without fixing any base



Technical Parameter

Laboratory Small Disc Mill for Grinding Iron Ore&Mineral for Analysis
Model no.	GM/FΦ-150A	GM/FΦ-175A	GM/FΦ-175B
Diameter of grinding disc(mm)	150	175	175
Feeding size(mm)	≤6	≤6	≤3
Discharging size (mm)	0.175-0.074	0.42-0.097	1-0.15
Handling capacity (kg/h)	20-6	35-10	25
Dimension (mm)	520×380×360	486×760×454	600×714×425
Total weight (kg)	95	130	100
Motor power (kw)	1.5	1.5	1.1
Working power supply (V)	380

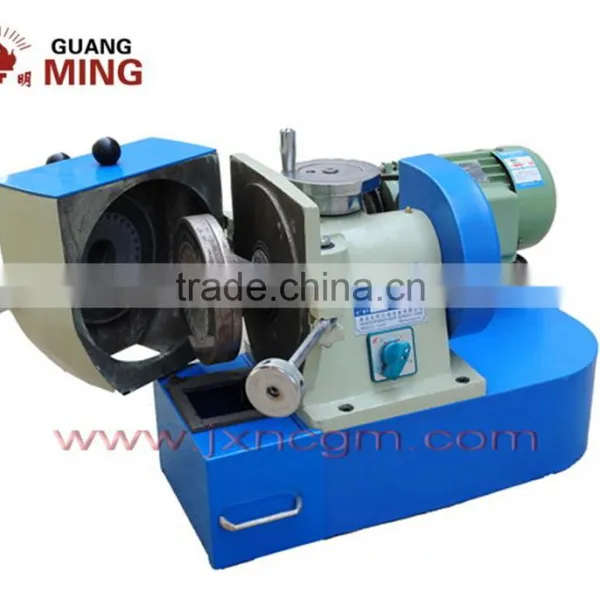

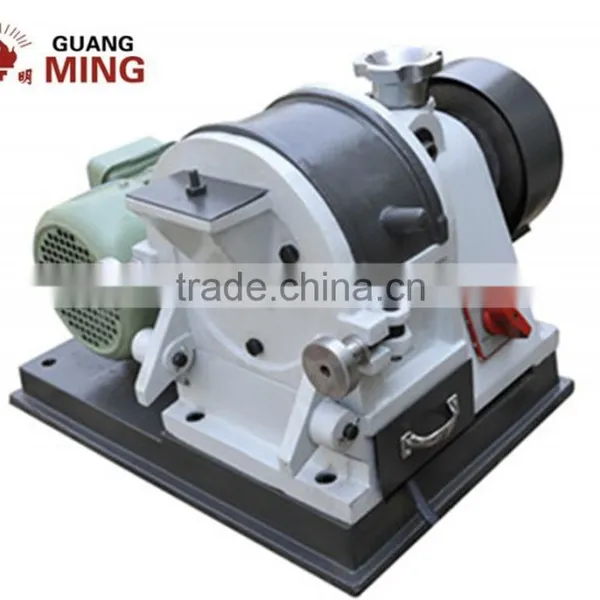

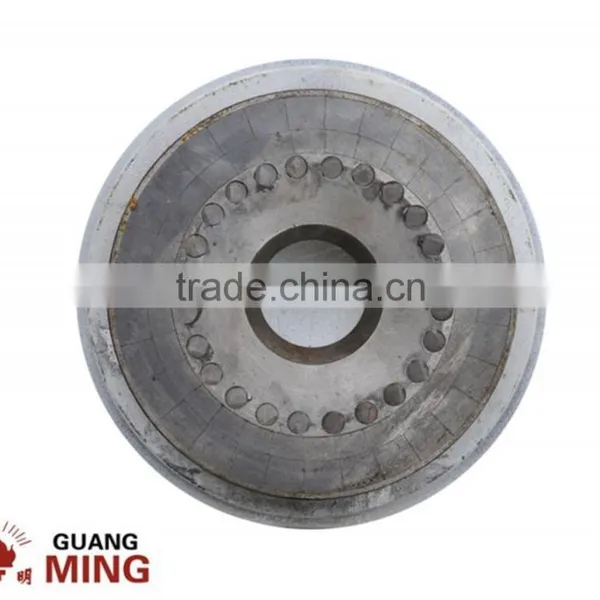

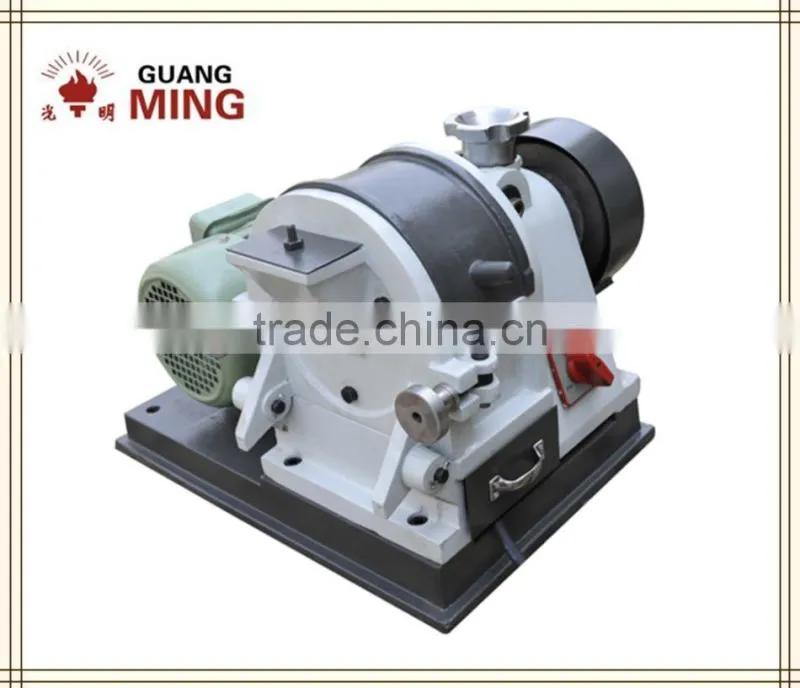

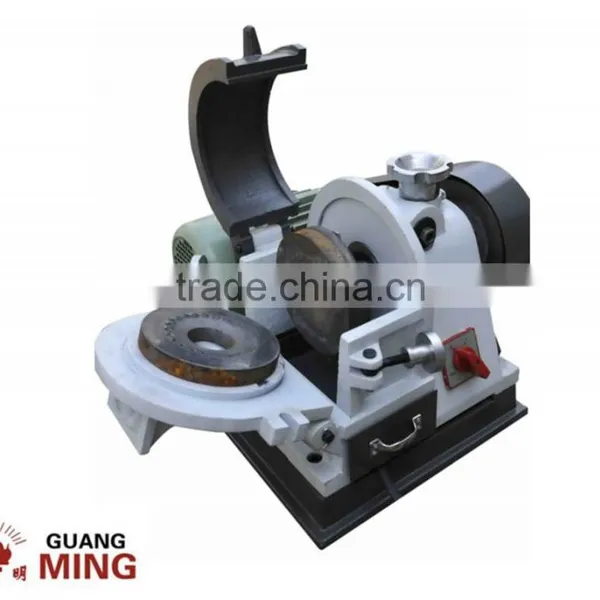

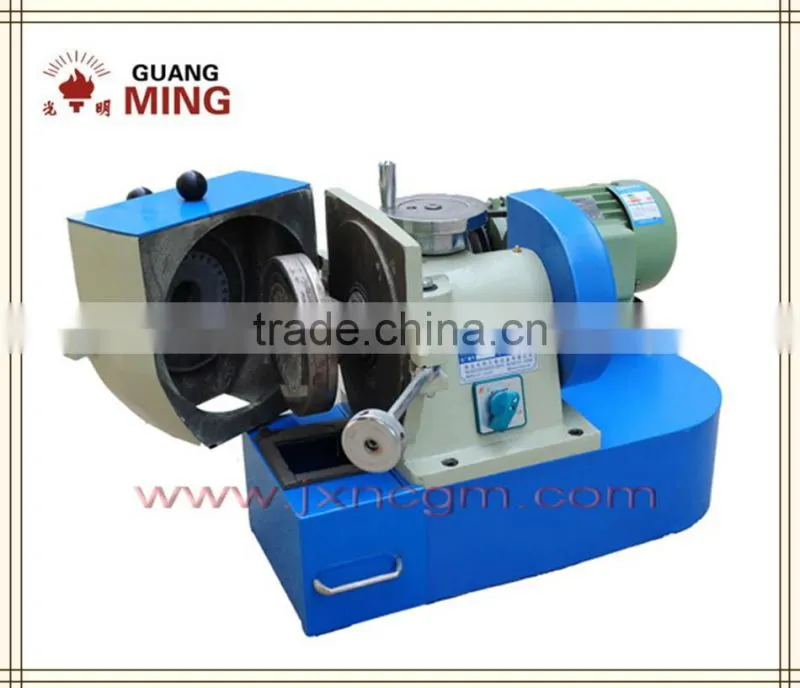

Disc Mill Pictures
