Specifications
Ratory laboratory pulverizer1.PLC intelligent control
2.High grinding speed,even discharge size
3.Labor-saving clamp device
Intelligent rotary laboratory pulverizer with tungsten carbide bowl
Highlight of the laboratory pulverizer
*Labor-saving clamping device;
*Safe door limit switch;
*Exact program control timing;
*Tungsten carbide, high manganese steel for choosing;
Typcal Applications
The pulverier is used for grinding the sample material of any kind of hardness to analyzable fineness quickly for component analysis.
Especiallly suitable for
The unit is especially suitable for sample preparation work in the laboratory of industrials of coal, electricity, nonferrous metal, metallurgy, chemic, environment-friendly department, scientific research and so on.
Working principle:
After start the motor, the ring and block inside the tungsten carbide material bowl will rotate with high speed under the force of centrifugal force, and impact the matrial, so the coal, mineral, ore will be grinded to analysis fineness
Advantages
1. PLC intelligent cotrol, touch screen operation, and equipped failure alarm system and inquiry system;
2.Adopting foreign advanced technology which has advantages of quick grinding speed, even particle size, smooth running and easy to clean worktable;
3.The motor is special made with longer service life;
4.Full-sealed design and limit switch, which meets the environmental protectio and safety productin requirements;
5.Adopts roll bear clamping device, which makes lamping very easy, even for a lady worker;
6. Perfect noise insulation and equuipped with automatic dusting device, which meets the requirement of environment protection;
7.It can work on the flat groud without fixing any base.
Technical Parameter
F3000 series rotary laboratory pulverizer | |||
Model no. |
F3000-AT |
F3000-BT |
F3000-1T |
Bowl material |
Tungsten carbide |
Tungsten carbide |
Tungsten carbide |
Feeding capacity(g/bowl) |
400-500 |
200-300 |
100-150 |
Grinding time(min) |
2-5 |
1-3 |
1-3 |
Feeding size(mm) |
≤26 |
≤20 |
≤16 |
Discharging size (mesh) |
80-300 | 80-300 |
80-300 |
Dimension (mm) |
800x600x1000 |
800x600x1000 |
800×600×1000 |
Total weight (kg) |
255 |
252 |
250 |
Motor power (kw) |
1.1(Specially made motor) |
||
Working power supply (V) |
380 |
||
More picutres of the rotary laboratory pulverizer

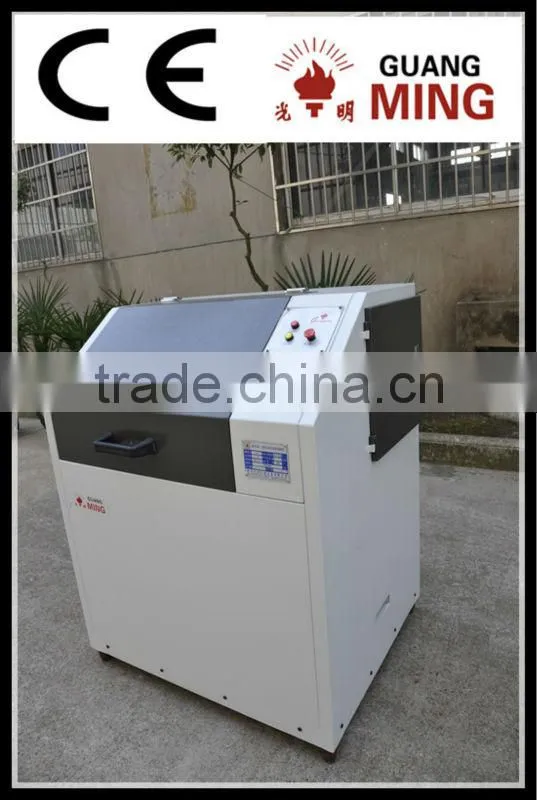

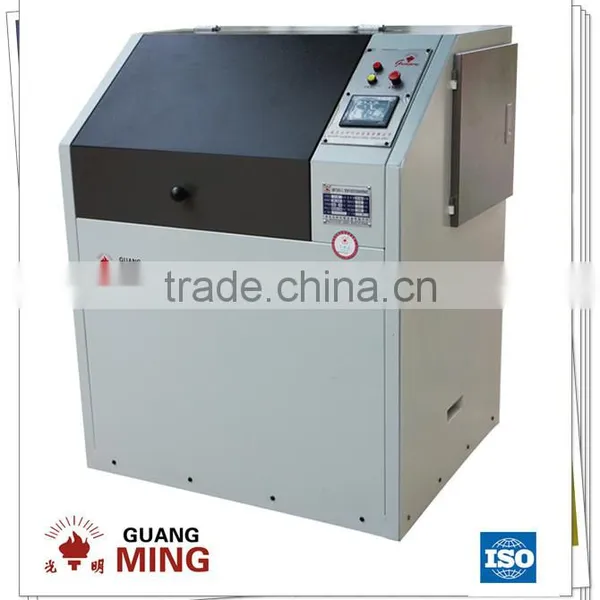

Pulverizer

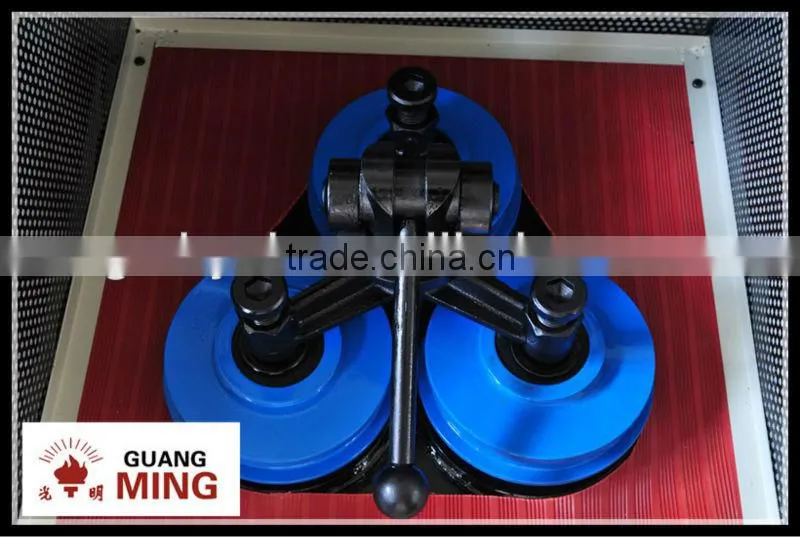

Labor-saving clamping devce

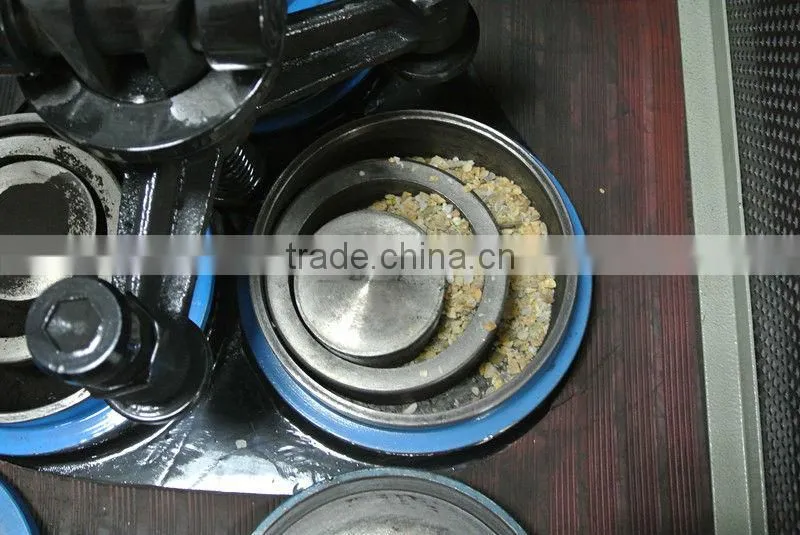

Feeding material

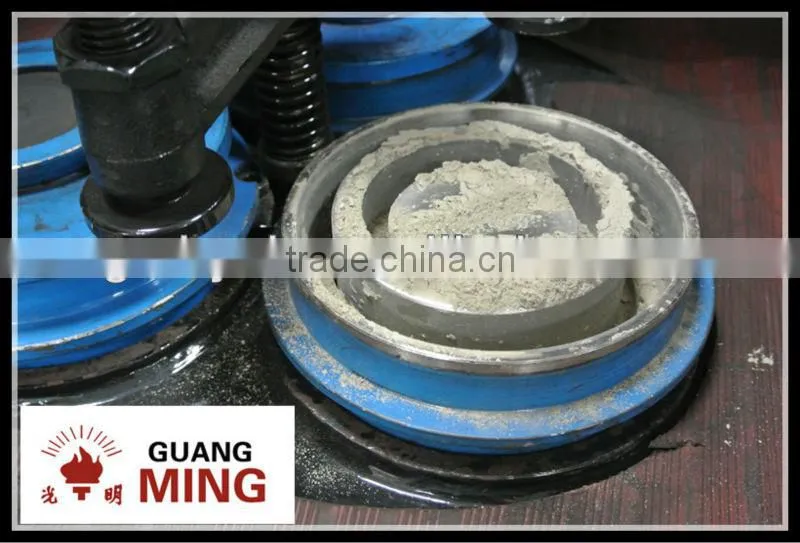

Discharge material

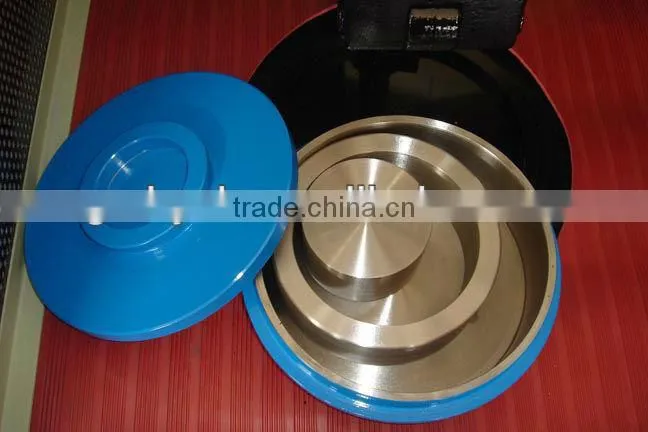

Material bowl
Guangming other laboratory pulverizr

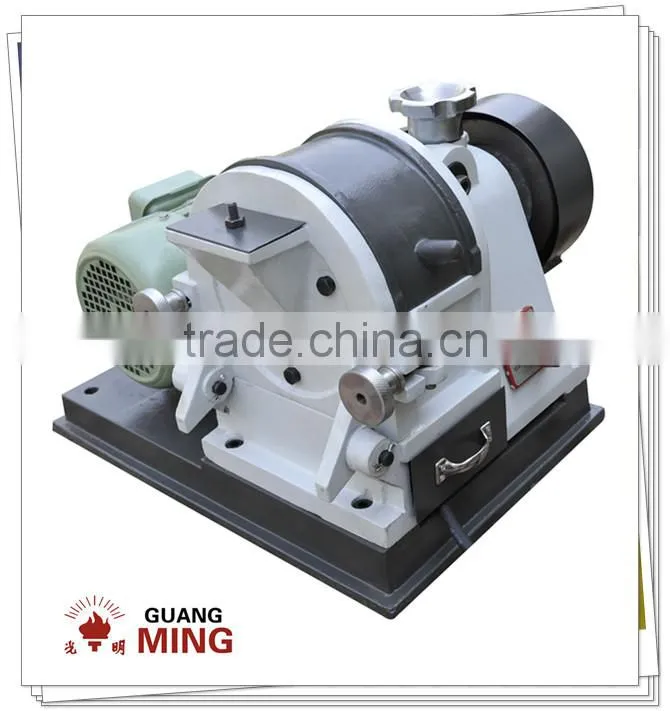

Disc Mill

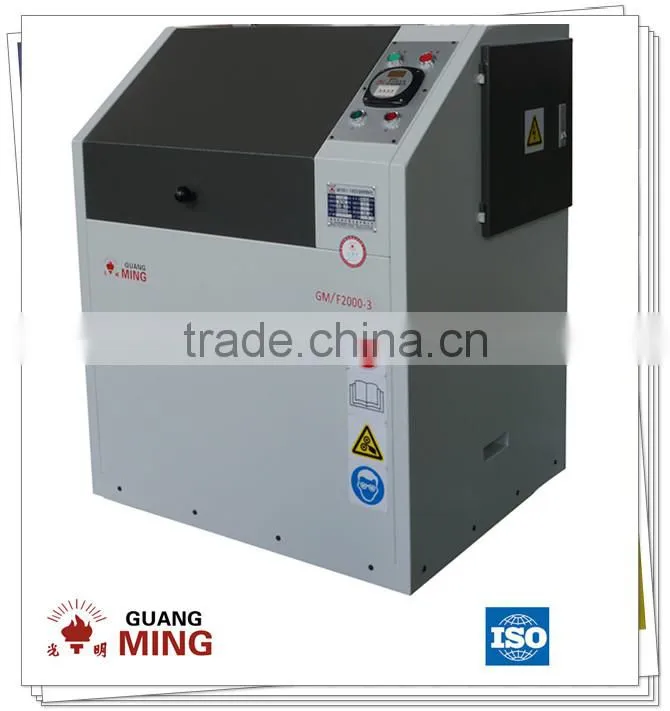

F2000 Series Laboratory Pulverizer

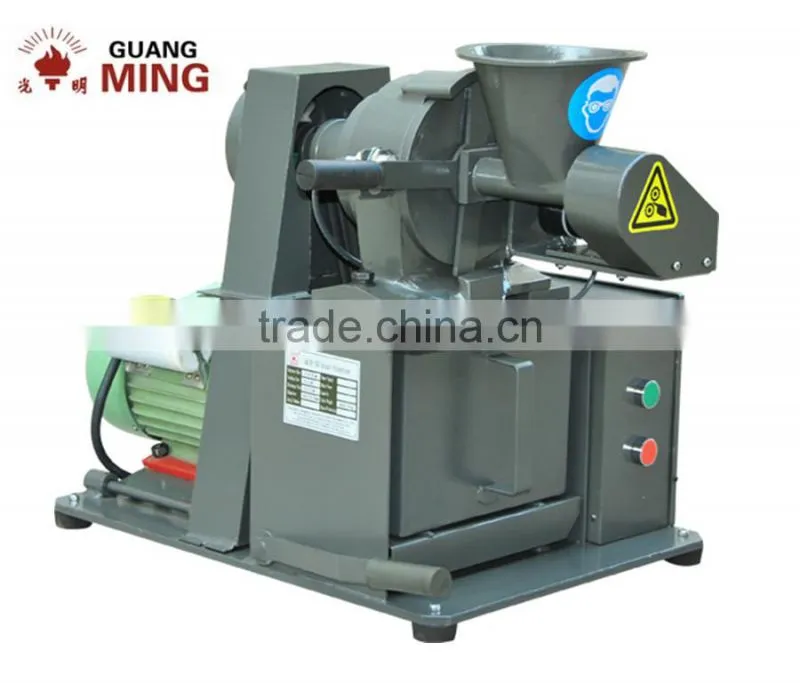

Laboratory Coal Pulverizer(Screw Type Feeding Material)
