Help CenterEasy Operation Laboratory Grinder Machine Vibrating Ring Bowl Pulverizer for Coal and Ore
Related Products
-
China Micro Powder Grinder for Laboratory Mineral AnalysisUS$ 1 - 9,999MOQ: 1 Set -
Electric Vibrating Micro Powder Pulverizer Laboratory Mineral Analysis Purpose Sample Preparation Small PulverizerUS$ 1 - 9,999MOQ: 1 Set
-
Intelligent Rotary Laboratory Grinder With Tungsten Carbide Grinding Bowl Suitable to Grind Hard Rock, StoneUS$ 1 - 9,999MOQ: 1 Set
-
Intelligent Rotary Laboratory Pulverizer for Rock, Coal, Ore Sample GrindingUS$ 1 - 9,999MOQ: 1 Set
-
Advanced Touch Screen Vibrating Pulverizer Laborabory Smaple Grinding Machine for Rock, Coal, OreUS$ 1,000 - 9,999MOQ: 1 Set

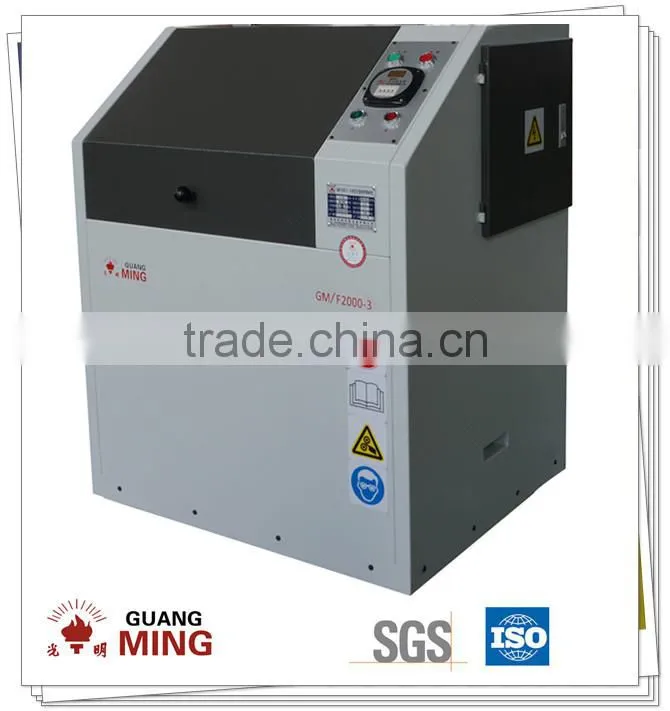

Outstanding features of the laboratory grinder machine
*Small lab grinder machine;
*Pulverize rock, ore, coal, mineral to 0.05-0.2mm powder;

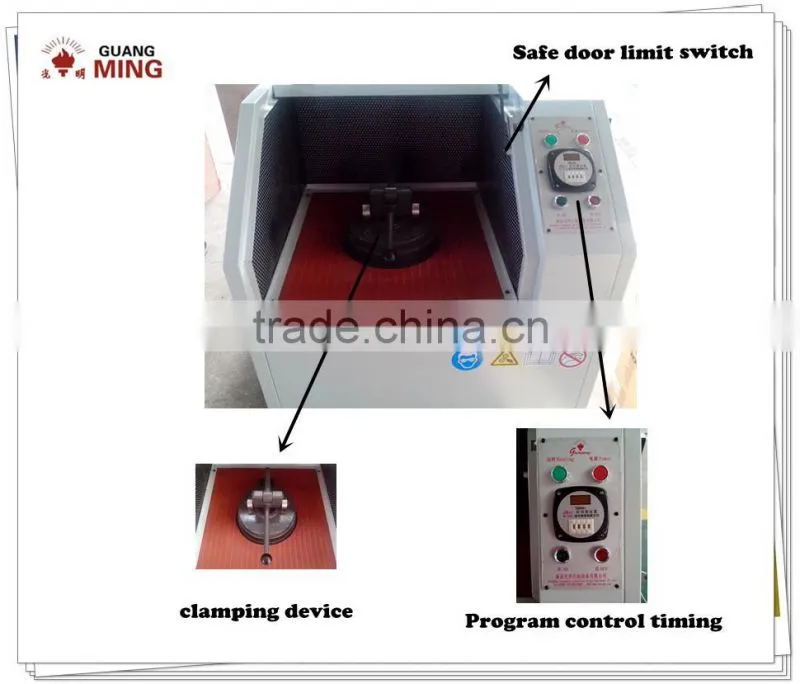

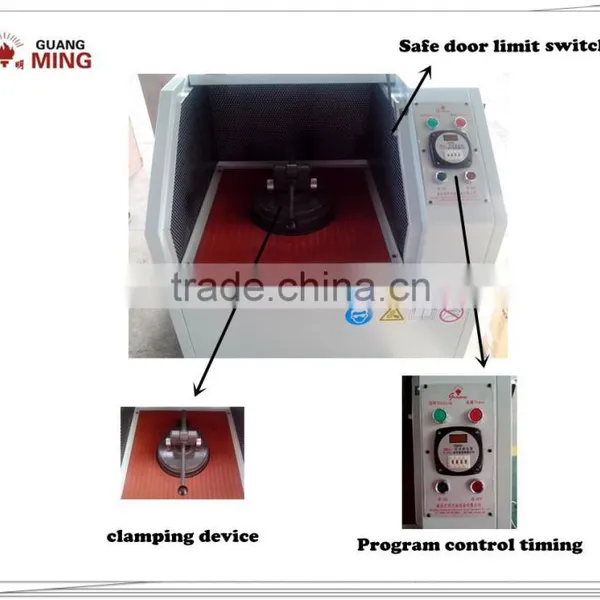

*Safe door limit swich;
*Labor-saving clamping device;
Typical Applications
The lab grinder machine is used to grind rock, coal, ore, mineral sample material to analyzable fineness quickly for component analysis.
Especiallly suitable for
The easy operation grinder machine is especially suitable for sample preparation work in the laboratory of industrials of coal, electricity, nonferrous metal, metallurgy, chemic, environment-friendly department, scientific research and so on.
Advantages
1.Adopting foreign advanced technology which has advantages of quick grinding speed, even particle size, smooth running and easy to clean worktable;
2.The motor is special made with longer service life;
3.Full-sealed design and limit switch, which meets the environmental protectio and safety productin requirements;
4.Adopts roll bear clamping device, which makes lamping very easy, even for a lady worker;
5.It can work on the flat groud without fixing any base.
Technical Parameter
F2000 series easy operation laboratory grinder machine | |||||||||
Model no. |
-AT |
-BT |
-1T |
-A |
-B |
-B2 |
-1 |
-2 |
-3 |
Bowl material |
Tungsten carbide |
High manganese stell |
|||||||
Sample quantity per time |
1 |
1 |
1 |
1 |
1 |
2 |
1 |
2 |
3 |
Feeding capacity(g/bowl) |
400-500 |
200-300 |
100-150 |
400-500 |
200-300 |
(200-300)*2 |
100-150 |
(100-150 )*2 | (100-150)*3 |
Grinding time(min) |
2-5 |
1-3 |
1-3 |
2-5 |
1-3 |
2-5 |
1-3 |
1-3 |
1-3 |
Feeding size(mm) |
≤26 |
≤20 |
≤16 |
≤26 |
≤20 |
≤20 |
≤16 |
≤16 |
≤16 |
Discharging size (mesh) |
80-300 | ||||||||
Dimension (mm) |
800x600x1000 |
||||||||
Total weight (kg) |
255 |
252 |
250 |
252 |
249 |
258 |
242 |
252 |
268 |
Motor power (kw) |
1.1(Specially made motor) |
||||||||
Working power supply (V) |
380 |
||||||||
More details of the grinder machine

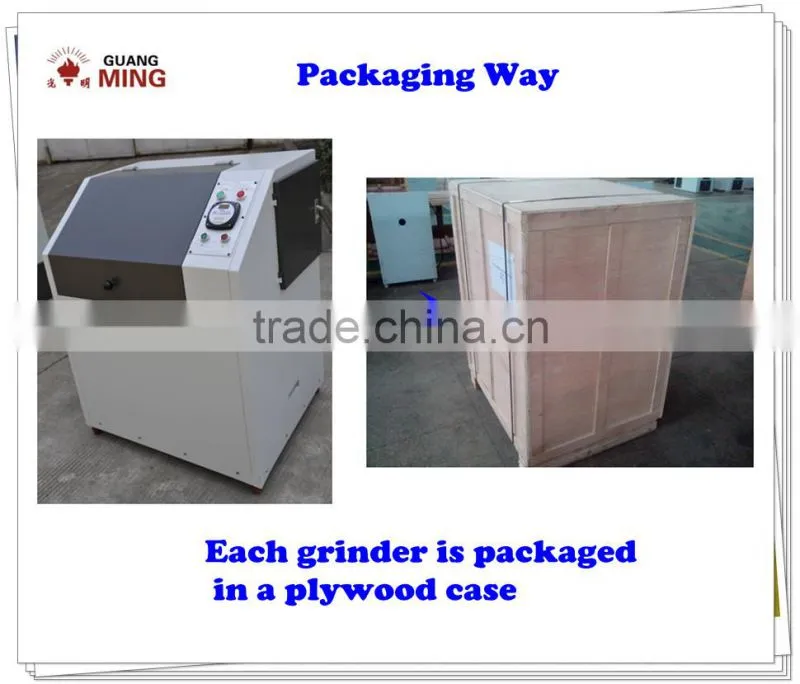

Packaging way: Guangming laboratory grinder machine standard packaging way is to pack every grinder in a customized plywood case, it can protect the lab grinderl greatly during transportation process;
Shipping way: we have long-term cooperated shipping agent, sea shipping, air shipping and DHL shipping way are ok as customer's requirement.
-15-30day on time delivery;
-Quality assurance, the micropowder mill has 12months warranty time;
-High qualified engineer and sales provide good service for each customer;
-Experienced cooperation forwarder satisfies customer’s various shipping arrangement.
1. What's the laboratory grinder machine warranty time?
=>Warranty time is one year, except wearing parts.
2. What's the wearing parts of the grinder?
=>1pc extra grinding bowl is suggested to reserve as parts.
3. What's the grinding bowl capacity?
=>500g/300g/150g capacity various of bowls choosing.
4.What's the material of the grinding bowls?
=>Based on features and hardness of the material to be pulverized, tungsten carbide, high manganese steel, chrome steel material grinding bowls are for optional.
5. How many pieces samples does the grinder machine can finish every time?

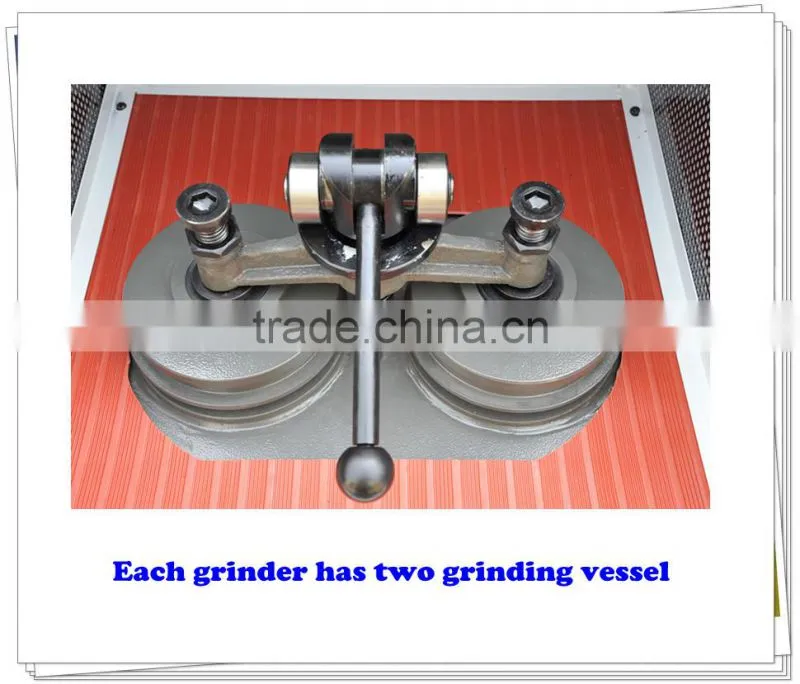

=>1-3pcs grinding bowls are equipped inside grinding mill, so can finish 1-3pcs samples every time;
6. What's power supply for the lab grinder machine?
=>The standard power supply is 380V/50Hz/3phase, if customer's local voltage or voltage frequency is different, we can customize motor for the pulverizer to safisfy customer's requirement.
7. Does lab type grinder mill is compatible to single phase power supply?
=> The standard design is to use 3phase power supply for grinder to ensure good grinding effect and stable performance, so motor of 3phase voltage will be much better.
8. What's the lead time?
=> Usually the lead time is 15-30days, if there is stock, 7days is also ok.
Guangming is a leading manufacturer that has 30years experience in laboratory sample preparation equipment, we insist on independent innovation, to achieve the goal of building world brand in the sample preparation industry, Guangming units a number of high qualified engineer and talented managing persons.

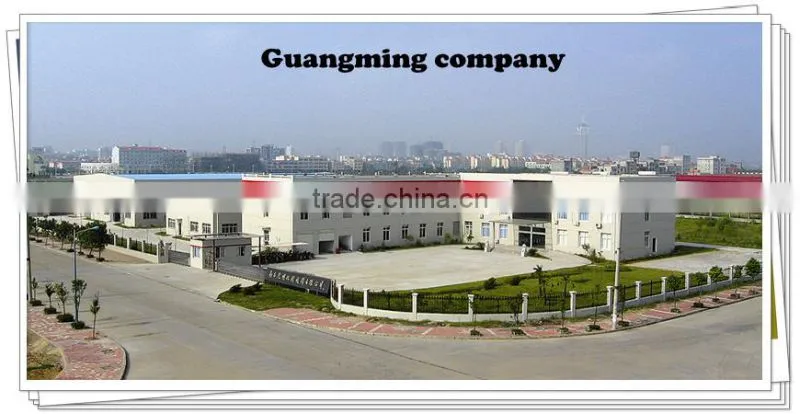

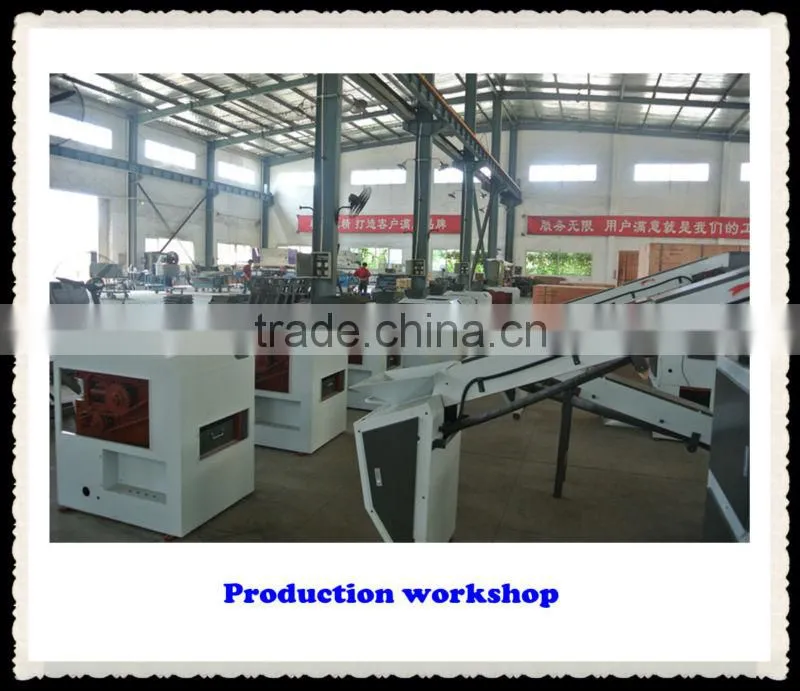

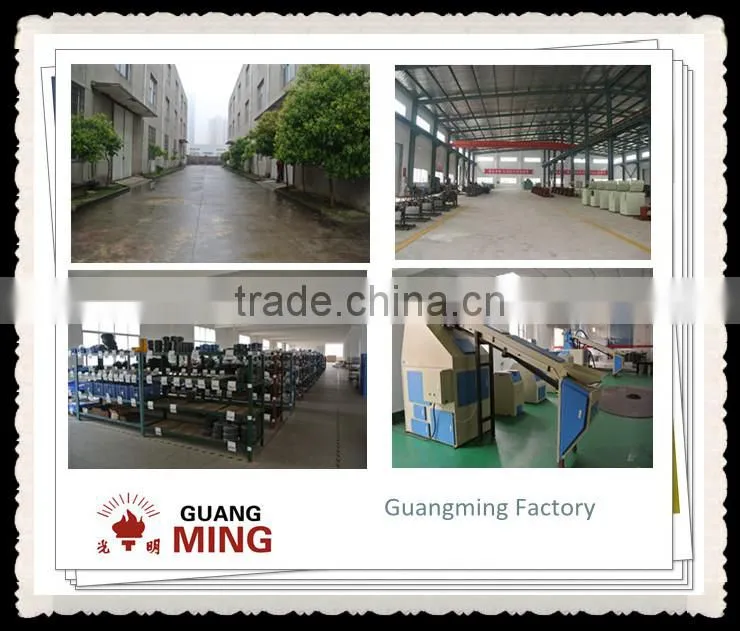

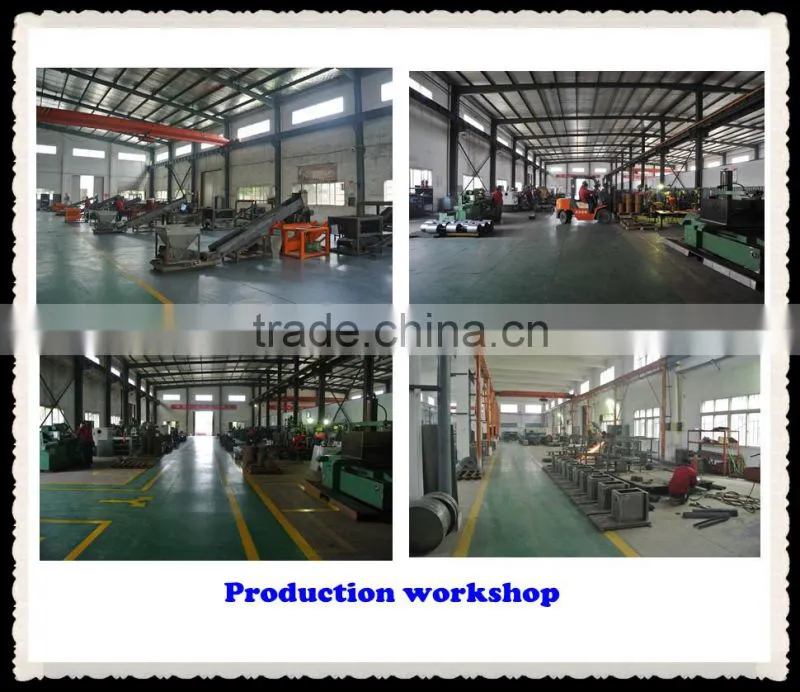

Guangming covers 60ares, including 1800 square meters production workshop, 3800 square meter technical center, 2300 square meter staff living and dining space and so on.
Depending on rich experience and advanced technology, Guangming develop many patent products, such as the first set coal integrated sample preparation system, the first unmanned coal sample preparation system etc. laboratory jaw crusher, pulverizer mill, sieve shaker, divider, calorimeter, sulphur tester are the featured products.
Warmly welcome to contact us for inquiry of easy operation laboratory grinder machine.
