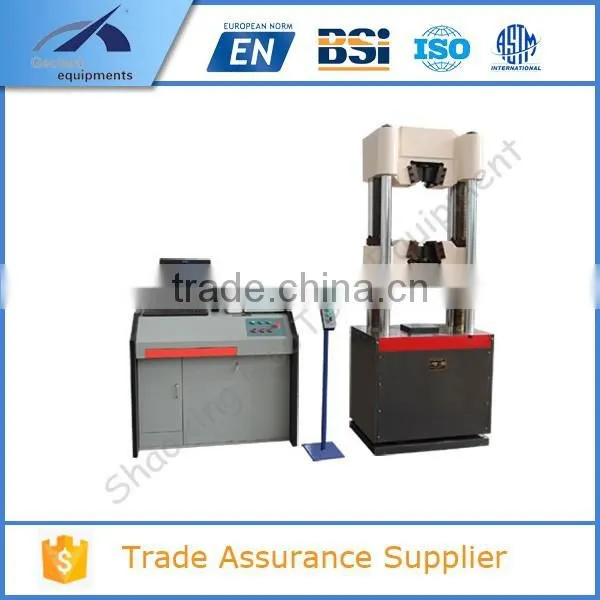

UTM-1000E Hydrostatic Universal Tensile StrengthTesting Machine

Name: UTM-1000E Hydrostatic Universal Tensile StrengthTesting Machine
Brand: Geotest Equipments
SKU: 143207958
Availability: InStock

Shaoxing GeoTest Equipment Co., Ltd.

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Place of Origin:

Zhejiang, China

Brand Name:

Geotest Equipments

Model Number:

UTM-1000E

Payment & Shipping

Payment Methods:

Port of Shipment:

Ningbo Shanghai Negotiable

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Zhejiang, China

Brand Name Geotest Equipments

Model Number UTM-1000E

Power Electronic

Usage Universal Testing Machine

Product Description

UTM-1000E Hydrostatic Universal Tensile StrengthTesting Machine

Model	UTM-1000E
Max load	1000kN
Relative error of indicating force value	≤±1%
Measuring range	2%-100%FS (20kN to 1000kN)
Control range of constant stress control	2 to 60Mpa/s
Error of stress rate	≤±5%
Control range of constant strain	0.00025/s to 0.0025/s
Error of strain rate	≤±5%
Control range of constant displacement	0.5mm/min to 50mm/min
Relative error of displacement rate	≤±5%
Max speed of piston	about 70mm/min
Max moving speed of cross beam	200mm/min
Max distance between upper and lower tensile accessories	700mm
Max distance between upper and lower compression plate	700mm
Span of the bending accessories	60mm to 700mm
Clamps for round specimens	diameter of 6mm to 40mm
Clamps for flat specimens	thickness of 0mm to 30mm
Compression plate	240mm×240mm
Distance between columns	650mm
Stroke of piston	250mm
Clamping mode	hydraulic clamping
Dimension of main machine	955mm×700mm×2550mm
Dimension of control cabinet	1100mm×700mm×940mm
Weight of main machine	about 3500kg
Power	380V, 50Hz
