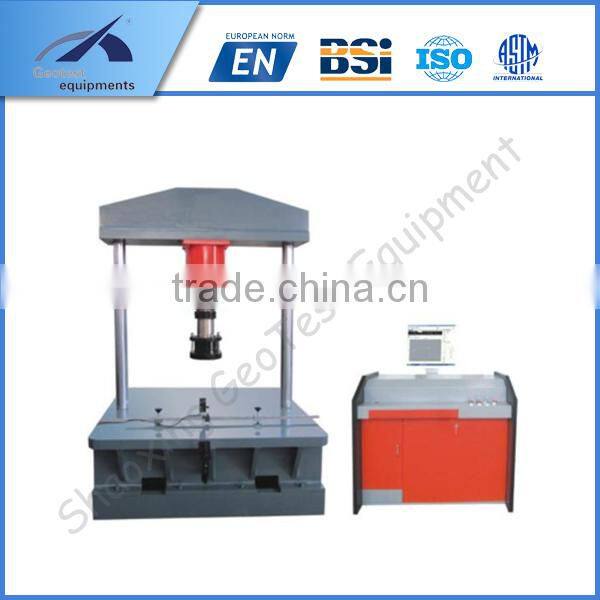

Manhole cover compression stength tester
Charateristic
The Manhole cover compression testing machine is used to determine compression strength and residual deformation of cast iron manhole cover, compositive manhole cover and steel fiber reinforced concrete well cover. It can do the compression test to other materials if equipped with other accessories.
Manhole cover compression stength tester
| Model | CTM-600MC | CTM-1000MC | CTM-1500MC | ||
| Capacity | 600KN | 1000KN | 1500KN | ||
| Measuring range | 2%-100% FS | ||||
Accuracy | ≤±1% | ||||
Compression space | 0-350mm | ||||
| Span between two columns | 1200mm | 1400mm | |||
| Effective length of working table | 1400mm | 1500mm | |||
| Size of upper spherical platen | Φ250x40mm | ||||
| Piston travel | 150mm | ||||
Loading rate | 0-40KN/s | ||||
| Overall dimensions (mainframe) | 1430x1400x2000mm | 1400x1500x2050mm | |||
Overall dimensions (control cabinet) | 1100x700x940mm | ||||
Power supply | 380V, 3 phase, 50Hz | ||||
| Weight approx | 3000kg | ||||
Manhole cover compression stength tester
Manhole cover compression testing machine
CTM-2000B/3000B Price Tensile Compression Testing Manchine
The biggest manufactor is in china, the top quality is in china, the best service is also in china!
Pls believe GEOTEST, Believe China Power!
We sincerely lookinf forward to cooperate with you!
