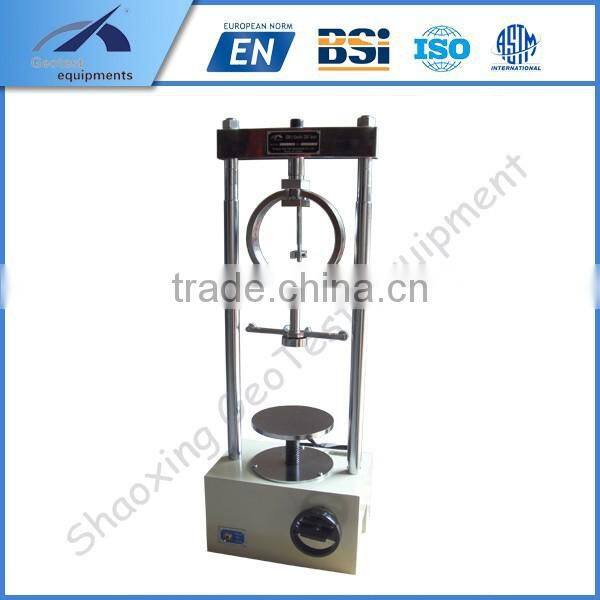

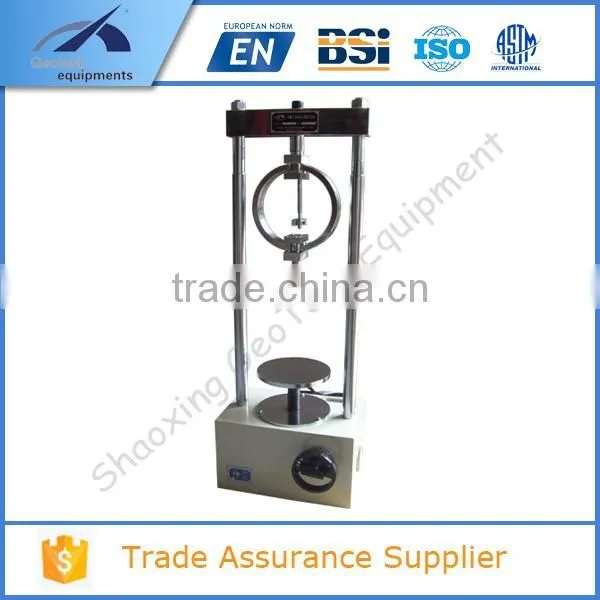

CBR-1 Electric Soil Bearing Ratio CBR Tester

Name: CBR-1 Electric Soil Bearing Ratio CBR Tester
Brand: GEOTEST EQUIPMENT, GEOTEST EQUIPMENTS
SKU: 143207818
Availability: InStock

Shaoxing GeoTest Equipment Co., Ltd.

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Place of Origin:

Zhejiang, China

Brand Name:

GEOTEST EQUIPMENT, GEOTEST EQUIPMENTS

Model Number:

CBR-1, CBR-1

Payment & Shipping

Payment Methods:

Port of Shipment:

Ningbo Shanghai Negotiable

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Zhejiang, China

Brand Name GEOTEST EQUIPMENT, GEOTEST EQUIPMENTS

Model Number CBR-1, CBR-1

Power Electronic

Usage Other, Electric Soil Bearing Ratio CBR Tester, Consolidation Test Apparatus

CBR-1 Electric Soil Bearing Ratio CBR Tester

a. This bench mounting machine comprises a twin column frame incorporating a motorised drive system.

b. Rapid adjustment of the platen is provided which enables daylight to be taken up quickly and also close control of application of a seating load.

c. A range of load rings will be required depending upon the type of material being tested.

CBR-1 Electric Soil Bearing Ratio CBR Tester

Capacity	30KN
Standard penetration speed	1mm/min
Testing range	30KN
Size of the penetration rod	Φ50×100mm
Size of the cylinder	Φ152×170mm
Surcharge weight (split)	Total 8 sets (O.D.: Φ150mm, I.D.: Φ52mm), 125g per set, divided into two semicircle along the diameter
Electricity supply	AC220V±5%, 50HZ
