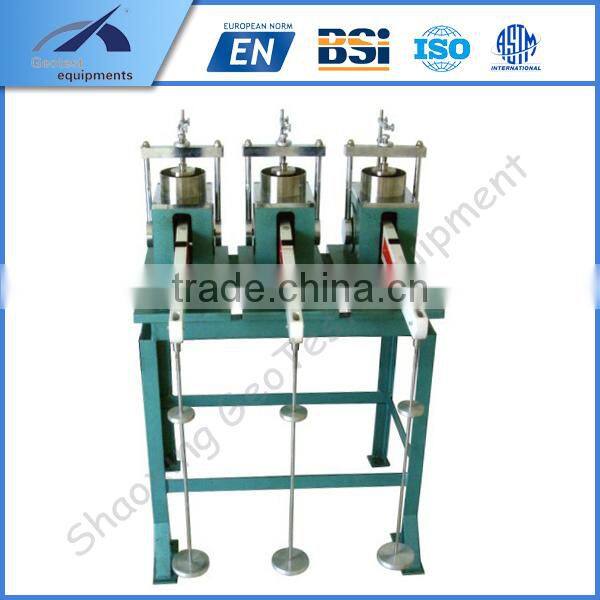

CTA-3 Triple Soil Consolidation Device Oedometer
Characteristics:
a. This apparatus is used for doing the compression test on soil.
b. It is used to determine the relations between distortion and the pressure or between the porosity ratio and the pressure and the relation between the distortion and the time to calculate the unit settling amount, the compression coefficient, the compression index, the rebound index, the consolidation coefficient of the compression modulus and so on.
c. Do the testing items according to the project requirements.
Remarks: Every unit of Triple Consolidation Test Apparatus complete with three sets of consolidation cells.
Triple Soil Consolidation Device
| Loading pressure | 12.5-4000Kpa/30cm², 12.5-2000Kpa/50cm² (high-pressure) 12.5-1600Kpa/30cm², 12.5-800Kpa/50cm² (mid-pressure) 12.5-800Kpa/30cm², 12.5-400Kpa/50cm² (low-pressure) | |||||
| Lever ratio | 20:1, 24:1 (high-pressure) 12:1, 10:1 (mid and low-pressure) | |||||
| Sample area | 30cm², 50cm² | |||||
Triple Soil Consolidation Device
Triple Soil Consolidation Device
