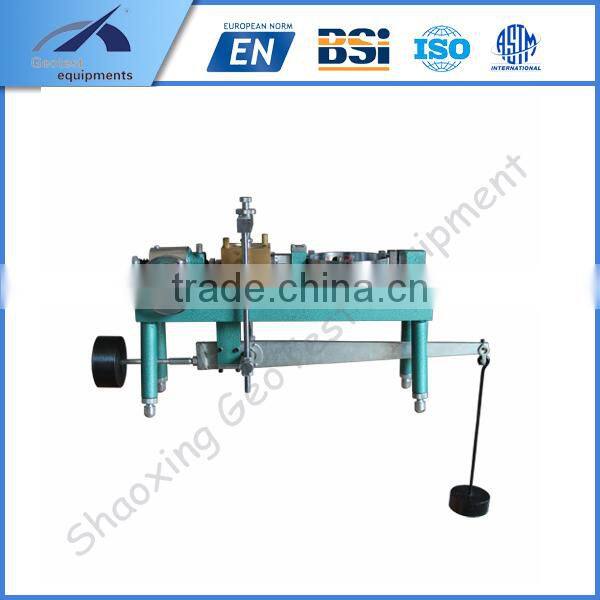

Portable Direct Shear Apparatus
Standard:BS 1377:7 EN1997:2 ASTM D3080
1. Characteristic
a. It is a kind of strain controlled direct shear apparatus used to test resisting shear strength of soil specimen.
b. It usually adopts four specimens under the different vertical pressure (400KPa 300KPa 200KPa 100KPa 50Kpa selectable), to exert horizontal force to the specimens so as to obtain shearing while the specimen is destroyed.
c. According to Coulomb's law to confirm the resisting shear strength coefficient, angle of internal friction and coagulable force of the soil.
| Sample area | 30cm×2cm(H) |
| Sample height | 2cm |
| Lever ratio | 1:20 |
| Max.output | 1.2Kpa |
| Axial displacement | 0.2mm as per rotation of thr handwheel |
| Weight of weights | total 6kg |

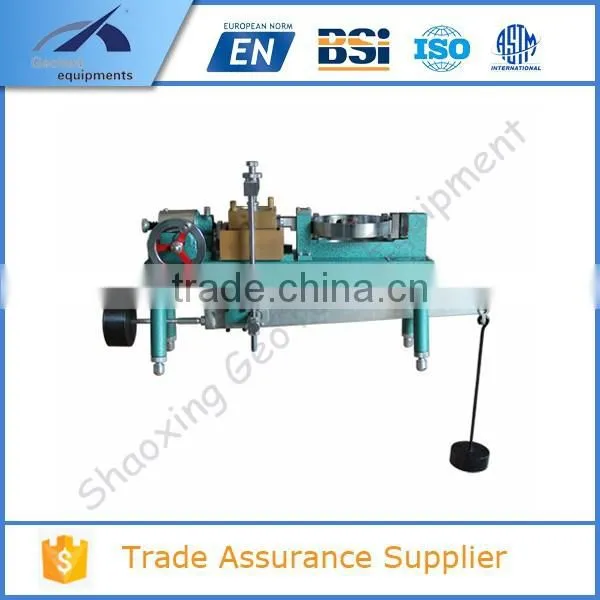

Portable Direct Shear Apparatus
Portable Direct Shear Apparatus
The biggest manufactor is in china, the top quality is in china, the best service is also in china!
Pls believe GEOTEST, Believe China Power!
We sincerely lookinf forward to cooperate with you!
