YT29A powerful pneumatic rock drill
rock drill information
DSL air-leg YT29A rock drills are designed for driving drifts and tunnels . These well-proven rock drills are recognized for their high performance and reliability. They are intended for use for hole diameter range of 34 to 45 mm with Hex 22mm (7/8") shank as a standard. When used with our tapered button bits, penetration rate will improve some 25-50% compared to conventional integral steels and have three to five times longer service life. This drill provides an outstanding power-to-weight ratio.
Rock drill Features & benefits
1. High performance rock drill for soft to hard rock
2. High impact rate makes it ideal for soft to hard rock
3. Large piston diameter for high efficiency even at low air pressure
4. Ratchet wheel rotation mechanism
5. Pusher leg control is placed on the pusher leg
Rock drill Applications
1. Production drilling
2. Mining and construction
3. Dimension stone industry
4. Blast holes
5. Rock-splitting holes
Rock drill specifications:
| YT29A Rock drill Specification | ||
| Weight | 27 | KG |
| Outside dimensions(L×W×H) | 659*248*205 | MM |
| Cylinder diameter | 82 | MM |
| Piston Stroke | 60 | MM |
| Working Pressure | 0.40-0.63 | Mpa |
| Impact Energy | ≥78(0.63Mpa) | J |
| ≥69(0.5Mpa) | ||
| ≥50(0.4Mpa) | ||
| Air Consumption | ≤88(0.63Mpa) | L/S |
| ≤65(0.5Mpa) | ||
| ≤52(0.4Mpa) | ||
| Impact Frequency | ≥39(0.63Mpa) | HZ |
| ≥37(0.5Mpa) | ||
| ≥36(0.4Mpa) | ||
| Torque | ≥20(0.63Mpa) | N.M |
| ≥17(0.5Mpa) | ||
| ≥15(0.4Mpa) | ||
| Rotated speed | 300(0.5Mpa) | R/Min |
| Working Water Pressure | 0.3 | Mpa |
| Air pipe inner diameter | 25 | MM |
| Water pipe inner diameter | 13 | MM |
| Rock drill hole diameter | 34-45 | MM |
| Max drilling depth | 5 | M |
| Working temperature | -30~45 | ℃ |
| Shank Size | H22*108 | MM |

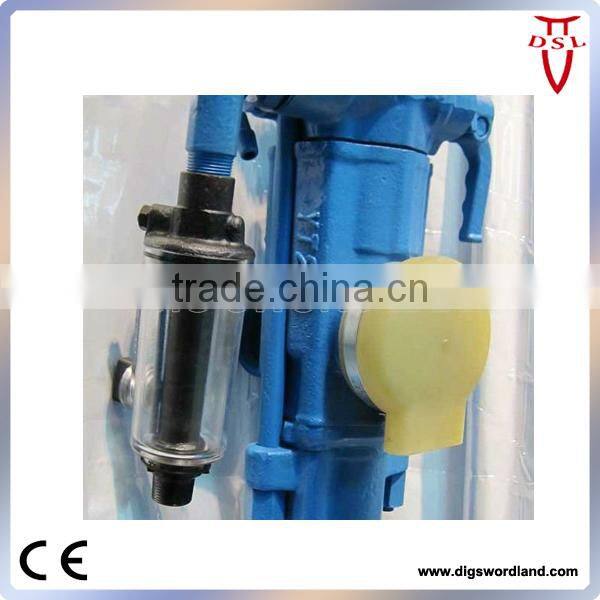

| FY250 Oil Lubricator | ||
| Weight | 1.2 | KG |
| Oil Reserve | 0.25 | ML |

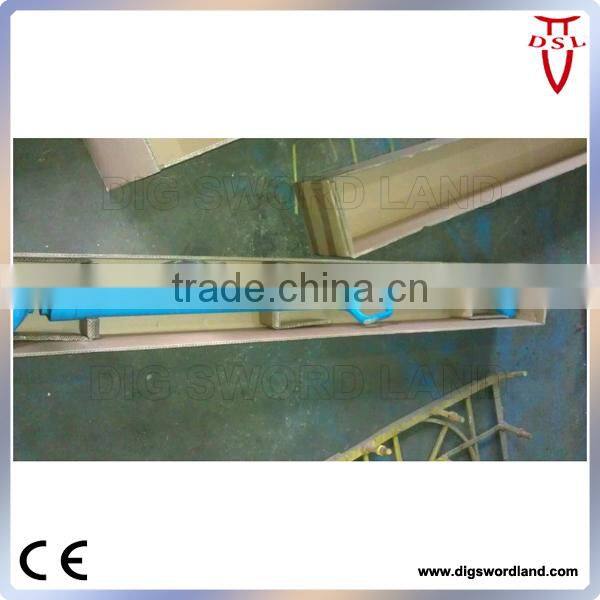

| FT160A Air Leg | ||
| Length | 1668 | MM |
| Advance Length | 1338 | MM |
| Cylinder diameter | 65 | MM |
| Weight | 17 | KG |

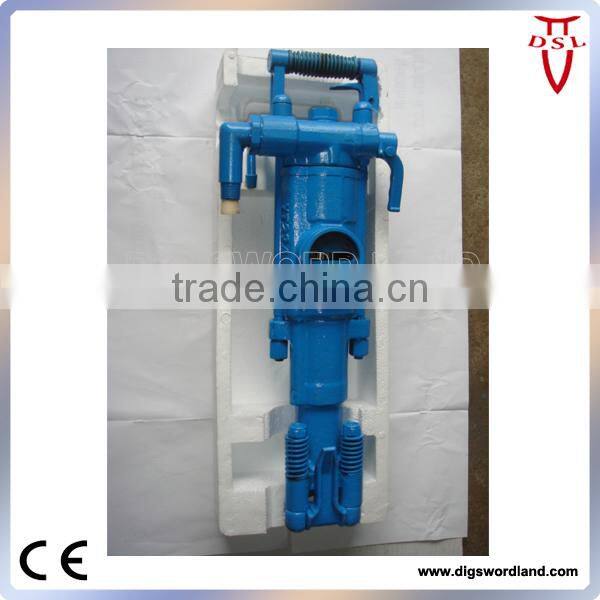

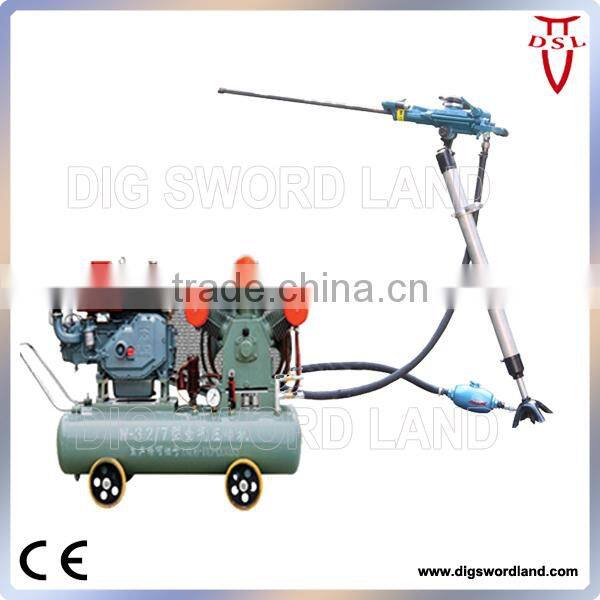

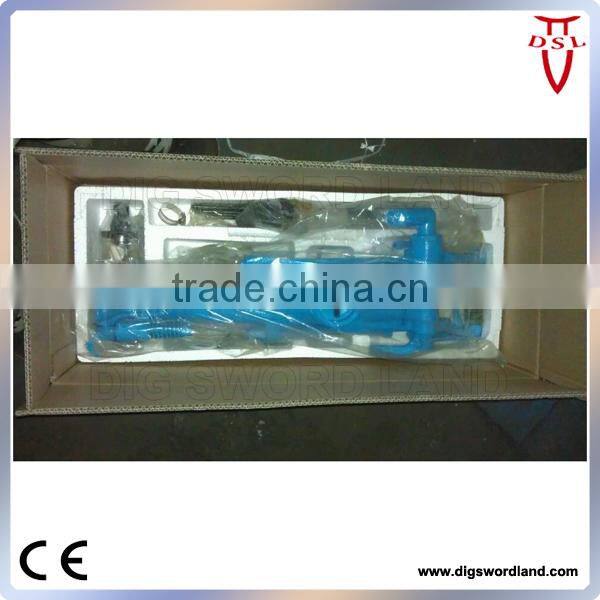

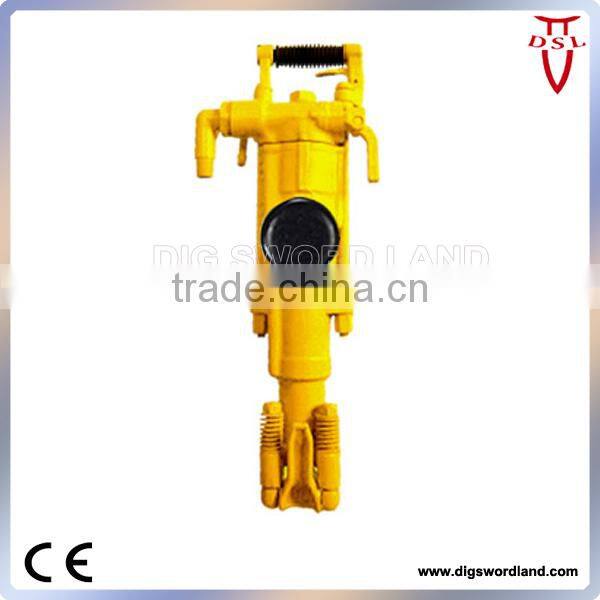

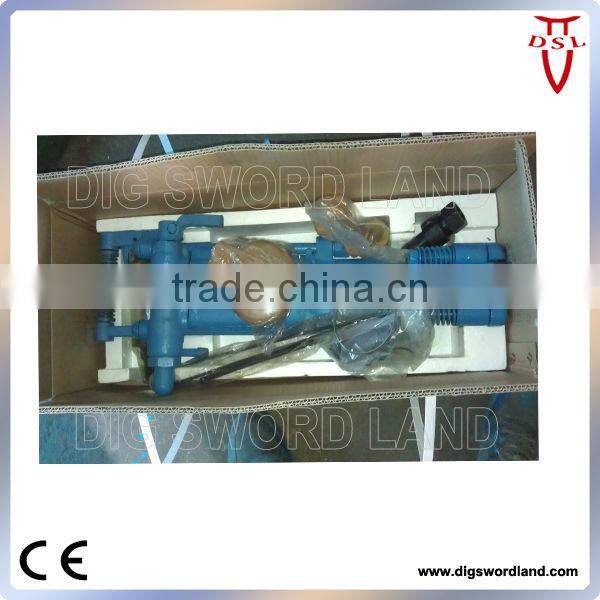

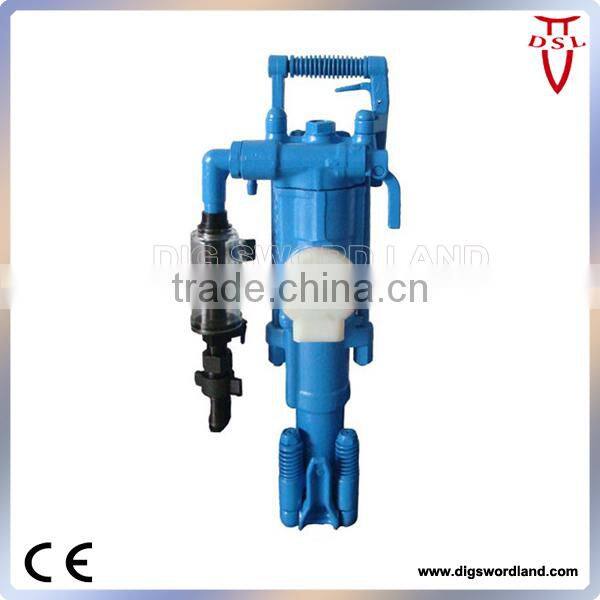

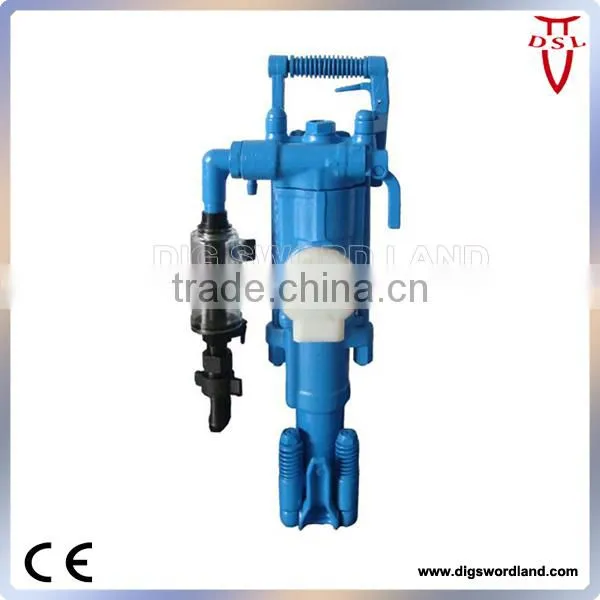

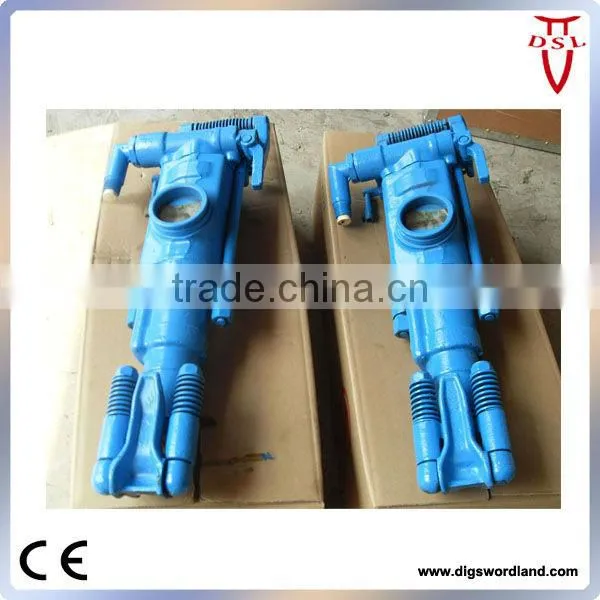

Rock drill Images
- 1. Reply your enquiry in 24 working hours
- 2. Experienced staffs answer all your questions in professional and fluent English.
- 3. Factory price with good quality
- 4. Sample acceptable
- 5. Offer certificate if necessary
- 6. Small quantity acceptable
- 7. Quick delivery
Fuzhou Dig Sword Land Machine (DSL) is a Sino-foreign joint venture. We are an industrial manufacturer specialized in design, manufacture and sales of construction and mining equipment worldwide. Our products range from air tools (air rock drill, air jack hammer, air compressor), hydraulic tools (hydraulic breaker, hydraulic rock splitter, hydraulic drill, hydraulic power unit), to other machines and parts in construction and mine line.
