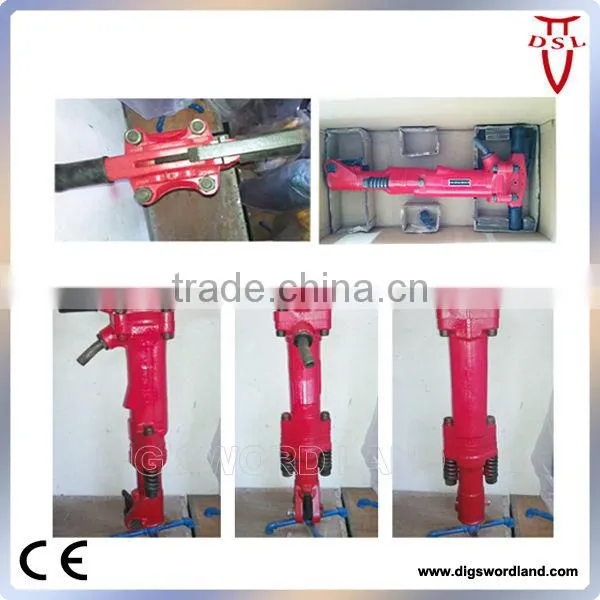

TPB-90 Pneumatic Hammer photo-1
TPB-90 Pneumatic Hammer photo-2
TPB-90 Pneumatic Hammer photo-3
TPB-90 Pneumatic Hammer photo-4
TPB-90 Pneumatic Hammer photo-5
TPB-90 Pneumatic Hammer photo-6
US$ 1 - 2 MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Fujian, China
Brand Name:
DSL Pneumatic hammer
Model Number:
TPB-90 Pneumatic hammer
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
Fuzhou China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Fujian, China
Brand Name DSL Pneumatic hammer
Model Number TPB-90 Pneumatic hammer
Type Air Hammer
Average Air Consumption 63L/S
Maximum Torque 36
No-Load Speed 300

Specifications

TPB-90 Pneumatic hammer
1. Strongest power
2.Use for breaker
4,High efficient

TPB-90 Pneumatic hammer




Product Description



1.instruction

TPB90  Pneumatic hammer are light weight rugged tools designed for light to medium construction jobs,such as demolition of floors,pavement,concrete and masonary walls.



crusher developed by the Japanese TOKU Corporation,
uses the compressed air as a driving force.
It can efficiently complete strengthen of concrete and the breaking of rocks and asphalt.
And it is more high-powered, more efficient and has much longer life.
Especially, for the crushing of Large, thick, hard objects,
it is the ideal tool to the foundation constructions,
such as the Mines, bridges, roads, municipal construction



2. Specification TPB-90,TPB-60 and TPB-40 Pneumatic hammer

Model

Weight(lbs)

Hose size(in)

Air Inlet(NPT)

Impact Rate(b.p.m)

Air consumption(c.f.m)

Overall length(in)

Piston Diameter(in)

Piston Stroke(in)

TPB-40

39-3/5

3/4

1/2

900

56

26

1-3/4

5-3/4

TPB-60

66

3/4

3/4

1400

70

25-3/8

2-1/4

4

TPB-90

92-2/5

3/4

3/4

1250

77

28-1/2

2-5/8

6

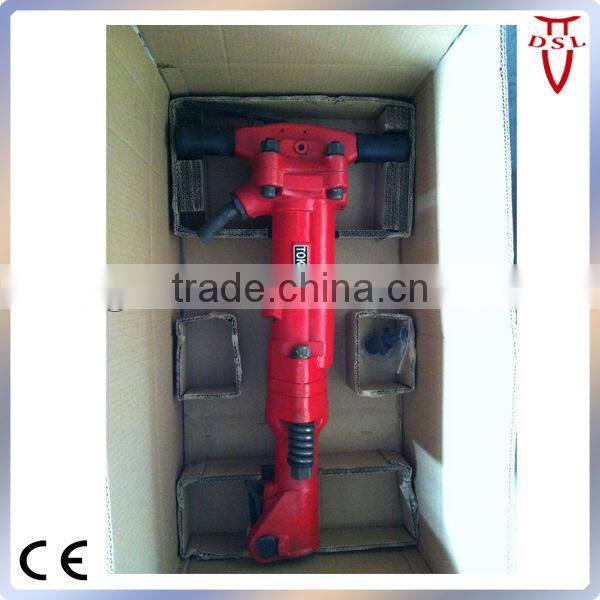

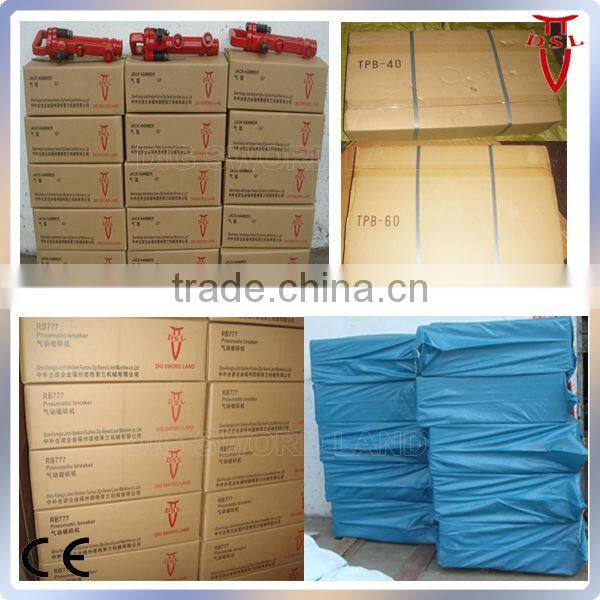

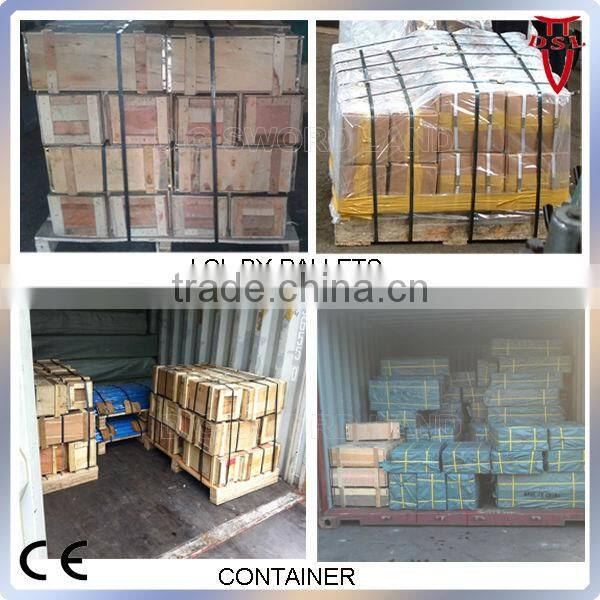

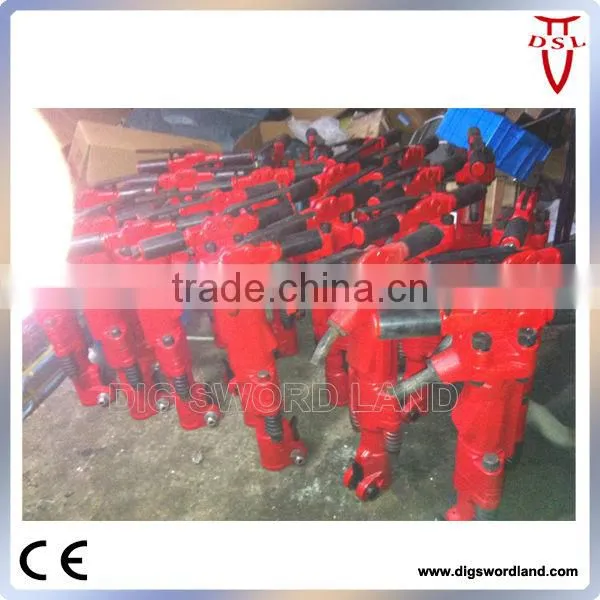

Packaging & Shipping

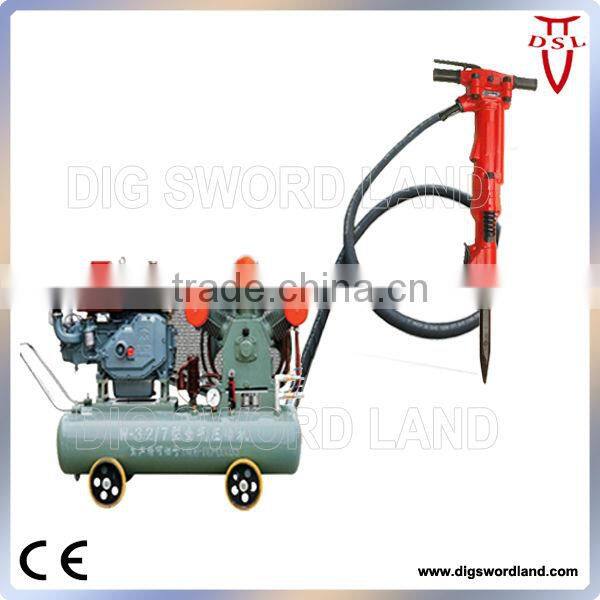

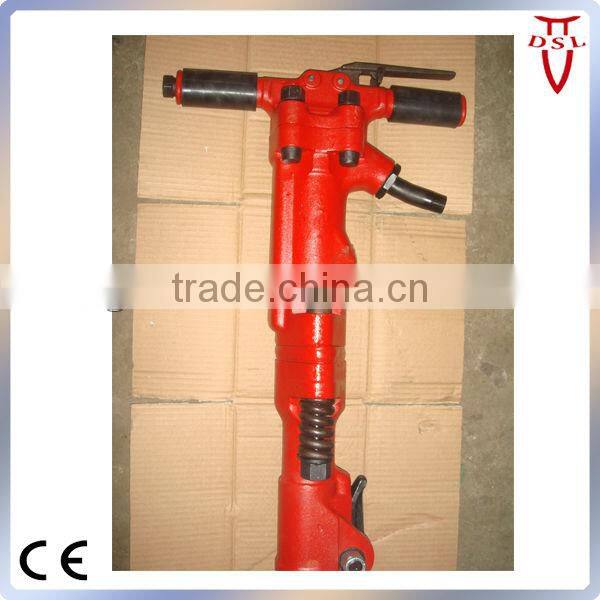

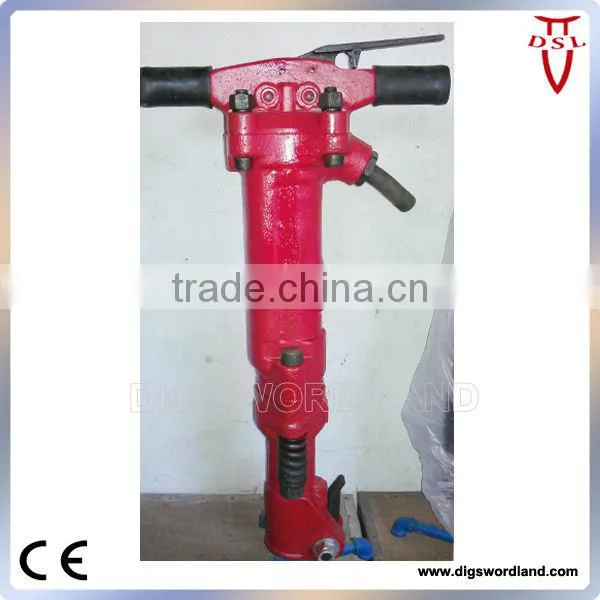

Picture for TPB-90  Pneumatic hammer

TPB-90 Pneumatic hammer







Picture for TPB-60  Pneumatic hammer

If you are interesting in TPB-60, Please click on the picture.

TPB-90 Pneumatic hammer



Picture for TPB-40  Pneumatic hammer

TPB-90 Pneumatic hammer

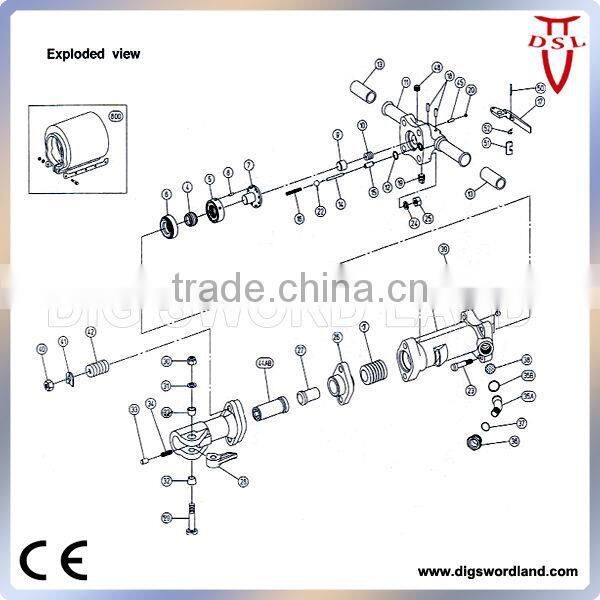

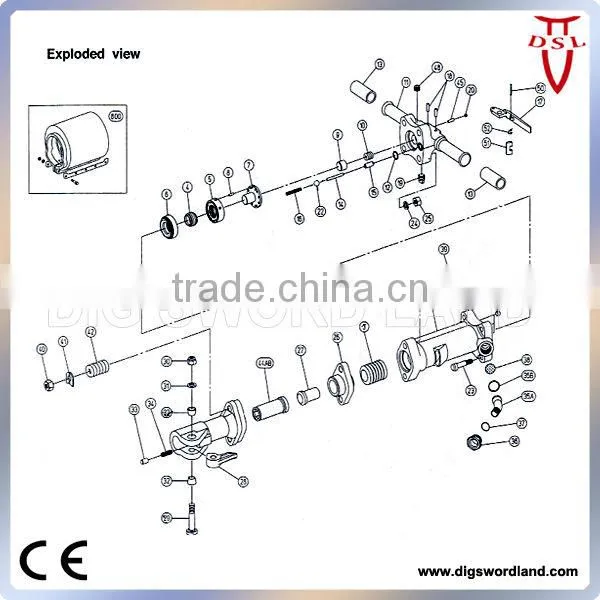

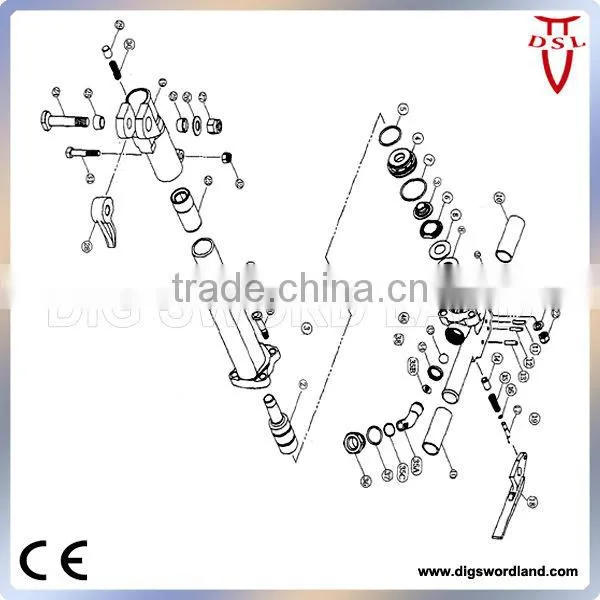

 spare parts list of TPB-90 Pneumatic hammer



TPB-90 Pneumatic hammer

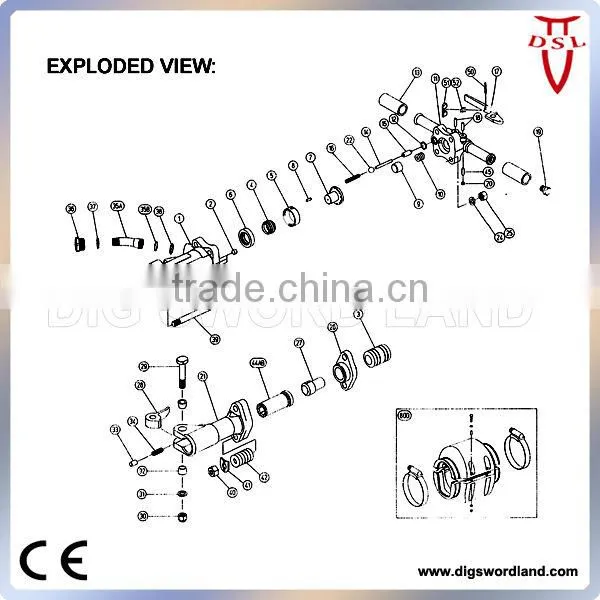

 spare parts list of TPB-60 Pneumatic hammer

TPB-90 Pneumatic hammer



 spare parts list of TPB-40 Pneumatic hammer

TPB-90 Pneumatic hammer



 TPB-90 Pneumatic hammerTPB-90 Pneumatic hammerTPB-90 Pneumatic hammerTPB-90 Pneumatic hammer

TPB-90 Pneumatic hammer
