Negotiable
MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Fujian, China
Brand Name:
DSL
Model Number:
DS13-30
Payment & Shipping
Payment Methods:
Port of Shipment:
Fuzhou or any port of China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
YYT29 Hydraulic Rock DrillNegotiableMOQ: 1 Set -
COP64 DTH Bits and DTH HammerNegotiableMOQ: 1 Unit
-
Pneumatic Engine Hydraulic Rock SplitterUS$ 1 - 3,000MOQ: 1 Set
-
Pneumatic Air Grinder for Intergal Rod Chisel TypeUS$ 1 - 500MOQ: 1 Set
-
Parker Hydraulic Pump TP30 TP40US$ 500 - 1,000MOQ: 1 Set
Place of Origin
Fujian, China
Brand Name
DSL
Model Number
DS13-30
Type
Hydraulic Breakers
Specifications
portable Hydraulic powerpack1,CE-approved, patented
2,Small size and light weight
3,Powerful and low reboun
portable Hydraulic powerpack
Introduciton:
Hydraulic powerpack Hire delivering High Performance & Reliability
- A Hydraulic powerpack with High blow energy and frequency to produce the highest productivity
- Progressive starting “Feathering” action, allows the operator to accurately place the tool and mark out before engaging full power
- Unique return blow action allows the user to power the tool free
- Hydraulic Breakers are less expensive to run and more powerful than pneumatic tools
- Alternative Power Source, designed for high back pressure so can be powered safely from excavators, skid steer loaders and road rollers instead of the power pack
- Economical to operate and simple to maintain
Hydraulic powerpack for Efficiency & Flexibility
- Dual hydraulic filtration, tank filter 90 microns, Return line canister 10 microns longer pack and tool life
- Stainless steel frame, stronger protection Extra heavy duty steel sub frame, less damage from knocks and drops
- Simplified maintenance procedures, easy access to filters
- Power on demand, even better fuel economy, reduces exhaust emissions
- Wheels and folding handle, easy on site transport

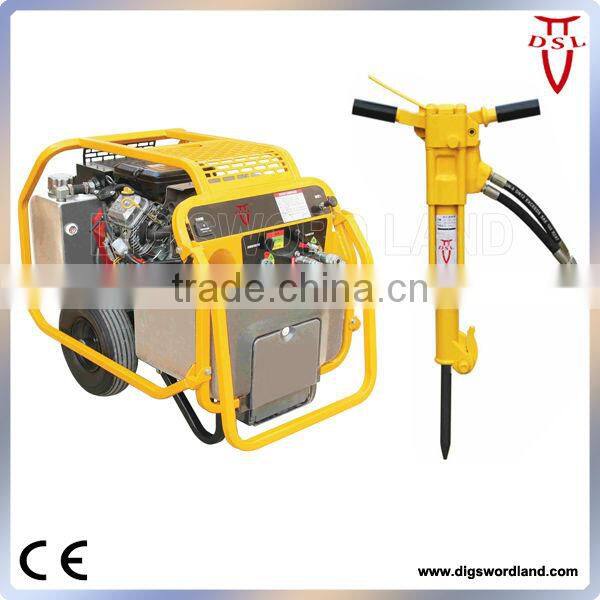

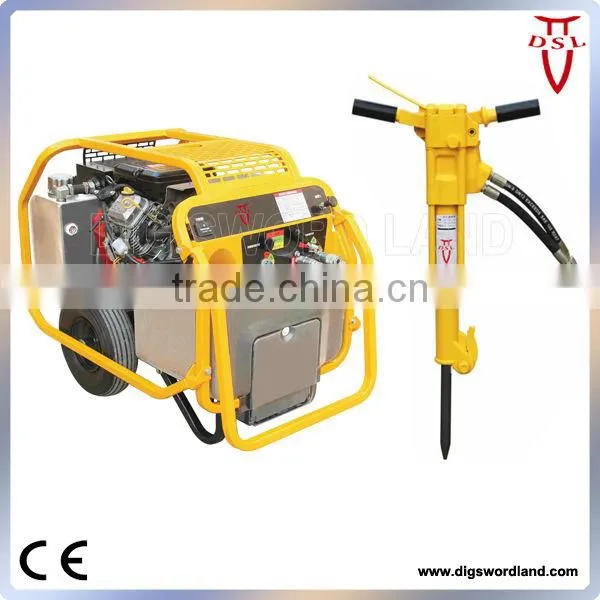

Hire A Hydraulic hammer pick and Hydraulic powerpack complete with Hoses
Combined hire of the Hydraulic Breaker and Power Pack gives more power and lower running costs than Pneumatic equipment. The heavy duty 25kg Breaker has the power for the most demanding jobs including breaking concrete slabs and for road works. The Power Pack is highly portable, very efficient and reliable. You don't need a large compressor that need towing, the kit will fit in back of an estate car. Much more powerful than electric breakers.
Specification of Hydraulic powerpack :
| Gasoline engine hydraulic powerpack | |||
| Type | DS09-20 | DS13-30 | DS18-30 |
| Weight(Kg) | 60 | 75 | 120 |
| Size(mm) | 620x500x600 | 780x510x600 | 900x590x740 |
| Volume(l/min) | 20 | 30 | 20/30 |
| Pressure(Bar) | 155 | 155 | 155 |
| Engine | Honda | Honda | B&S |
| 9hp(6.6kw) | 13hp(9.6kw) B&S 13.5hp(9.6kw | 18hp(13.2kw) | |
| Wheel/handle | yes | yes | yes |
| Cooling power (Hp) | 3 | 5 | 5 |
| Hydraulic gasoline tank volume (L) | 12 | 12 | 12 |
| Pollution indication | yes | yes | yes |
| Electric engine hydraulic powerpack | |||
| Type | ES10-20 | ES15-30 | |
| Weight(Kg) | 90 | 120 | |
| Volume(l/min) | 20 | 30-40 | |
| Pressure(Bar) | 90~155 | 90~155 | |
| Size(mm) | 800x550x530 | 900×590×600 | |
| Engine(Kw) | 7.5 | 11 | |
| Rated current(A) | 16 | 32 | |
| Rated voltage (V) | 380 | 380 | |
| Noise level (DB) | 94 | 98 | |
| Motor protection | Automatically restart | Automatically restart | |
- Hydraulic hammer pick
| Hydraulic rock breaker/Hydraulic hammer pick | ||||||
| Model | BR40 | BR40J | BR45 | BR45J | BR67 | BR67J |
| Weight(Kg) | 18 | 19 | 20 | 21 | 28 | 29 |
| Output flow(lpm) | 15-24 | 15-24 | 26-34 | 26-34 | 26-34 | 26-34 |
| Work pressure (Bar) | 90-140 | 90-140 | 105-140 | 105-140 | 105-140 | 105-140 |
| Impact frequency(Bpm) | 1800-2400 | 1800-2400 | 1800-2400 | 1800-2400 | 1800-2400 | 1800-2400 |
| Hammer shank size(in. Hex) | 1*4-1/4 | 1*4-1/4 | 1*4-1/4 | 1*4-1/4 | 1-1/4*6 | 1-1/4*6 |
| Handle type | T size handle | Anti-shake handle | T size handle | Anti-shake handle | T size handle | Anti-shake handle |
For more Information, please feel free to contact me.
---------------------------------------------------------------------------
Lola Lou
Mob: +86-152-0501-6717
Fax: +86-591-8380-8668
/

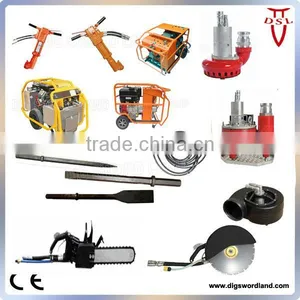

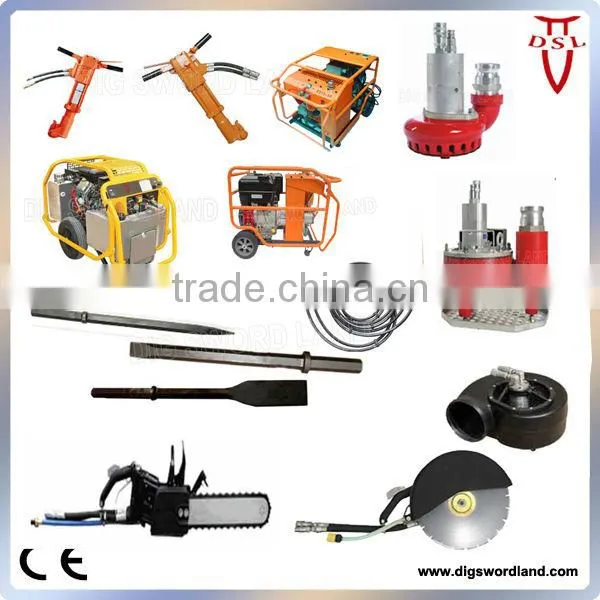

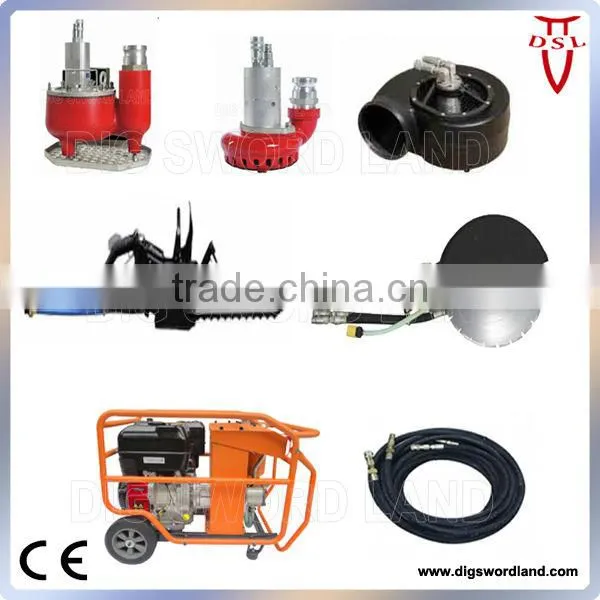

Different models for your choice
