Negotiable
MOQ: 20 Sets (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Fujian, China
Brand Name:
DSL
Model Number:
TCA-7
Payment & Shipping
Payment Methods:
Port of Shipment:
Fuzhou China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
Place of Origin
Fujian, China
Brand Name
DSL
Model Number
TCA-7
Type
Air Hammer
Average Air Consumption
≤20L/S
Maximum Torque
200
No-Load Speed
2000
Specifications
TCA-7 patented flexible and light air hammerlight-weight
simple structure
operate facility
auto stop when bump object
TCA-7 patented flexible and light air hammer
Patent No.: ZL 2007 3 0139673.6
pneumatic hammer model, RB777,RB777C,B77C,B70,B90,TCA-7,B87C,B67C,B47,G10,G20,TPB40, TPB60 Jack hammer

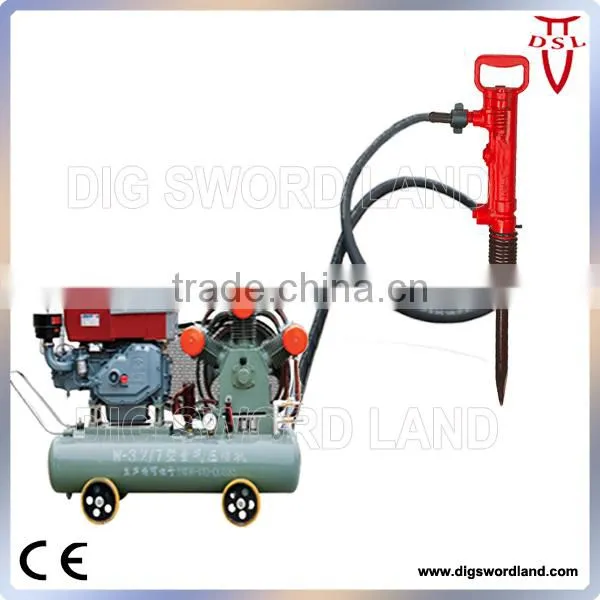

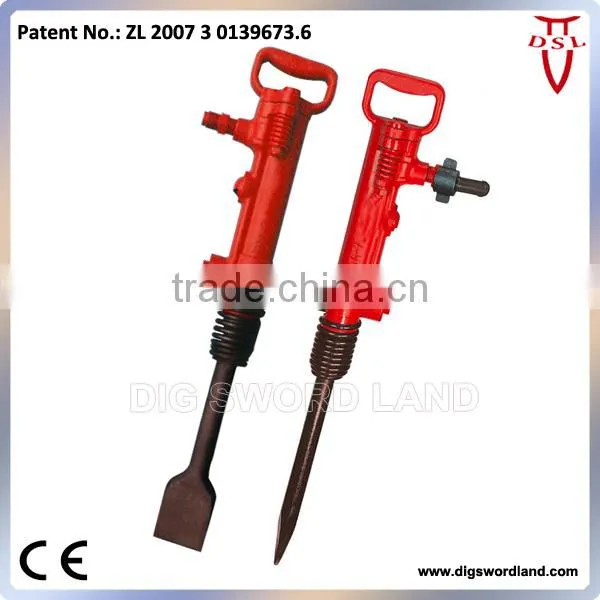

TCA-7 Pneumatic Jack Hammer has light-weight, simple structure, operate facility, auto stop when bump objective into pieces. It is suitable for drilling in mine, mining the soft ore; diging pole and feet-hole, karating water-ditch; or crashing concrete and clay in construction work; or working in the situation that need producing the impact in the mechanical industry such as assemble and unassemble the cincture pin in tractor, panzer and other jack hammer.
Specification
| Weight | 7.2kg |
| Dimension: | 456*160*110mm |
| Rammar dia. | 35mm |
| Rammar weight | 0.6kg |
| Rammar stroke | 120mm |
| Work pressure | 0.4~0.49Mpa |
| Impact energy at 0.49Mpa | ≥30J |
| Impact frequency at 0.49Mpa | ≥21.6Hz |
| Air consumption at 0.49Mpa | ≤20L/S(1.2m³/min) |
| Air pipe inner dia. | 19mm |
