COP64 DTH Bits and DTH Hammer

COP64 DTH Bits and DTH Hammer thumbnail-1
COP64 DTH Bits and DTH Hammer thumbnail-2
COP64 DTH Bits and DTH Hammer thumbnail-3
COP64 DTH Bits and DTH Hammer photo-1
COP64 DTH Bits and DTH Hammer photo-2
COP64 DTH Bits and DTH Hammer photo-3
Negotiable MOQ: 1 Unit (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Fujian, China
Brand Name:
DSL DTH Hammer
Model Number:
DTH Hammer
Contact Supplier Request Quote Chat Now
Fuzhou Dig Sword Land Machine Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
FOB Fuzhou China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Fujian, China
Brand Name DSL DTH Hammer
Model Number DTH Hammer
Type Other, DTH Hammer
Processing Type Forging
Use Ore Mining

Specifications

DTH hammer and DTH bits
1.Working pressure:5-12bar
2.Air consumption:5-10m^3/min
3.Outside diameter:80mm

 High and Low-medium pressure DTH hammer



Hammer length without bit(mm):758

Thread:T48*10*2

Outside diameter(mm):80

Wrench flat(mm):60

Weight(kg):21.5

Working pressure(bar):5-12

Air consumption(m^3/min):5-10



Instroction



DTH is abbreviation for "down the hole" . Low Air Pressure Down The Hole Drill Bit  (DTH Button Drill Bit) is used to produce large-diameter holes in rocks, usually in the initial stage prior to blasting, but it is also used in non-blasting applications. DTH drilling are used mostly in mining quarries but can be used in a variety of other constrauction applications. The DTH drilling method is growing in popularity, with increases in all application segments, including blast-hole, water well, foundation, oil & gas, cooling systems and drilling for heat exchange pumps. Applications were later found for the DTH method underground, where the direction of drilling is generally upwards instead of downwards.





Specification

 High pressure down-hole DTH hammer

2.5'' Hammer GD2.5
3.5'' Hammer GD3.5
HCD34
XF-3.5N
4'' Hammer GD340
GQM.TD40
GF340AN/XF-340N
GF.MISSION40
5‘’ Hammer GD350
GQM.QL50
GF350RN/XF-350N
GN.MISSION50
GF.QL50
6'' Hammer GD360
GQM.QL60
GF360N/XF-360N
GF.MISSION60
GF.QL60
8'' Hammer GD380
GQM.QL80
GF.QL80
GF.MISSION80







Model

Length

mm

 Thread Outside Dia.(mm) Weight Air consumption(Bar)

Wrench

(mm)

 Air consumption(L/S)
D84 1344 4 1/2"REG 182 190 6/25 148 420/780/875L/S
D64 1189 3 1/2“REG 137 98 6/25 95 175/345/480L/S
D54 1140 2 3/8”REG 124 75 6/25 74-95 145/261/348L/S
D44 979 2 3/8”REG 99 40 6/25 74 105/185/250L/S
D35 892 2 3/8”REG 80 25 6/25 65 90/170/220L/S
D24 868 F42*10*1.5 70 20 6/25 55 70/120/180L/S

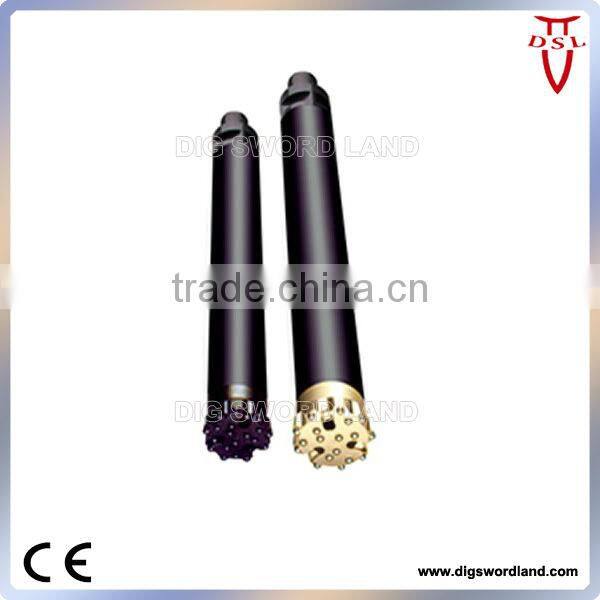

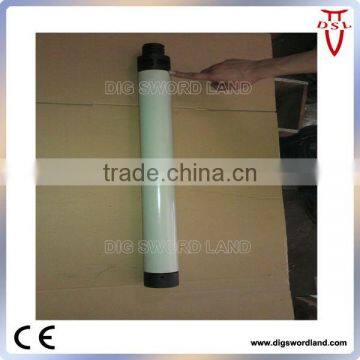

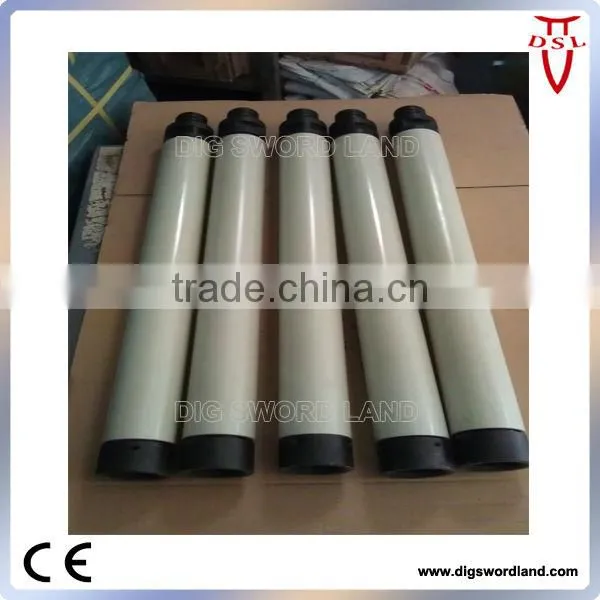

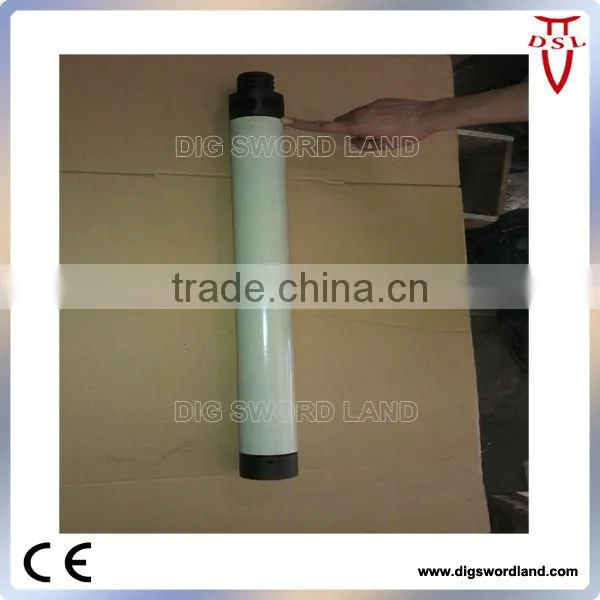

DTH Hammer and bits photos

COP64 DTH bits and DTH hammerCOP64 DTH bits and DTH hammer

COP64 DTH bits and DTH hammer
