Specifications
PET geotextile 250Gexcellent permeabitlity
good flexiblity
acquired and durability
easy for constr

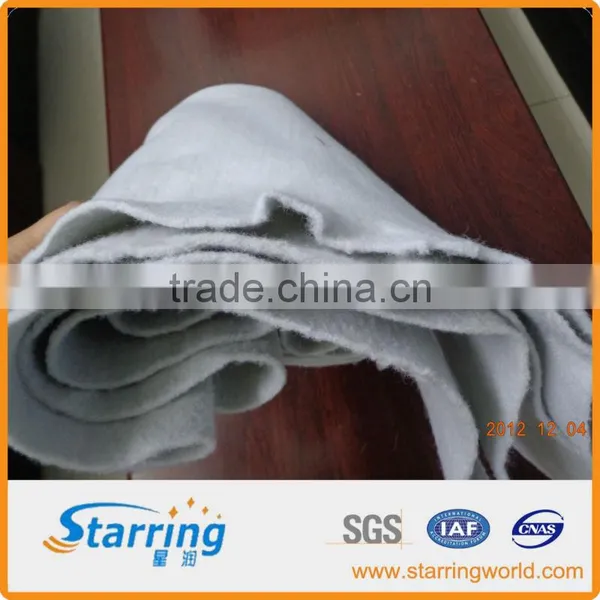

PET geotextile 250G
PET geotextile 250G introduction
We supply a range of both polypropylene and polyester geotextiles used for separation, filtration and reinforcement applications. These include: needle punched staple fibre geotextiles; continuous filament spunbonded geotextiles; stitch reinforced non woven fabrics and thermal embossed fabrics suitable for reusable carry bags with an exceptional degree of uniformity.
The company's modern equipment, ISO9001 accreditation, continuous development and investment programme delivers geotextiles manufactured to the highest international standards. Each batch laboratory tested and certified.
Our highly uniform non-woven fabrics are used in Australian coating factories to manufacture termite barriers, waterproof liners and high performance petrolatum wax tapes.
PET geotextile 250G features
- Geotextile has good air permeability and water permeability which can pass the water out and intercept the sand running-down
- Geotextile has high water diversion property, it can form drainage passageway, transpire the surplus liquid and gas
- High water permeability even under the pressure of soil and water
- Spread, transfer or decompose the concentrate stress effectively to avoid the soil be damaged by outside affection
- To prevent the freestone upper and lower level, soil and concrete mixed
- Polypropylene fiber or polyester fiber and other chemical fiber as raw material, acid-alkali-proof, non-corrording, non warm-eaten,antioxidant
- Light weight, convenient to use, easy construction, shorten working-period, increase economic efficiency
- Make use of geotextile to strengthen the tensile strength and anti-deformation property of soil, increase the stability of building structure, and also improve the soil quality
PET geotextile 250G
Specification:
Material |
PET,PP |
Technics/process |
Needle punched / thermally bonded |
Specification |
100g/m2-1200g/m2 |
Width |
1m-6m(as you demand) |
Length |
100m(as you demand) |
Colour |
White, black, grey, green, brown, etc. |
Packing |
PE film and woven cloth |
Load |
According to your specification |
Payment terms |
T/T or L/C |
Delivery time |
Within 2 weeks |
Application |
Geotextiles with various indicators of quality, with good stress -- strain and toughness, seepage performance and uniformity, and width, etc., And is applicable to roads, water, rail, mining dams, rivers, airports and other civil engineering, anyone in the works played reinforcement, segregation, filtration, filtration, drainage, and then extend the project life, reduced cost and easy construction, and it is easy to ensure the quality of the project. |
PET geotextile 250G Index
Item |
Value |
||||||||||||||
Nominal Breaking Strength KN/m≥ |
4.5 |
7.5 |
10 |
15 |
20 |
25 |
30 |
40 |
50 |
||||||
1 |
Breaking Strength (CD/CMD)KN/m≥ |
4.5 |
7.5 |
10.0 |
15.0 |
20.0 |
25.0 |
30.0 |
40.0 |
50.0 |
|||||
2 |
Elongation at Break % |
40-80 |
|||||||||||||
3 |
CBR Mullen Burst Strength KN≥ |
0.8 |
1.6 |
1.9 |
2.9 |
3.9 |
5.3 |
6.4 |
7.9 |
8.5 |
|||||
4 |
Tear Strength (CD/CMD) KN≥ |
0.14 |
0.21 |
0.28 |
0.42 |
0.56 |
0.70 |
0.82 |
1.10 |
1.25 |
|||||
5 |
Sieve Size O90 mm |
0.05-0.20 |
|||||||||||||
6 |
Vertical Permeability Coefficient cm/s |
(1.0-9.9)×(10-1~10-3) |
|||||||||||||
7 |
Thickness mm≥ |
0.8 |
1.2 |
1.6 |
2.2 |
2.8 |
3.4 |
4.2 |
5.5 |
6.8 |
|||||
8 |
Unit Weight g/m2 |
100 |
150 |
200 |
300 |
400 |
500 |
600 |
700 |
800 |
|||||
9 |
Width Variation % |
-0.5 |
|||||||||||||
10 |
Weight Variation % |
-5 |
|||||||||||||
pls feel free to contact us:
