Specifications
200G black geotextileMaterial:PP/PET
Width:1-6m
Weight:100-1200gsm
anti-aging,anti-acid and alkali,abrasion res

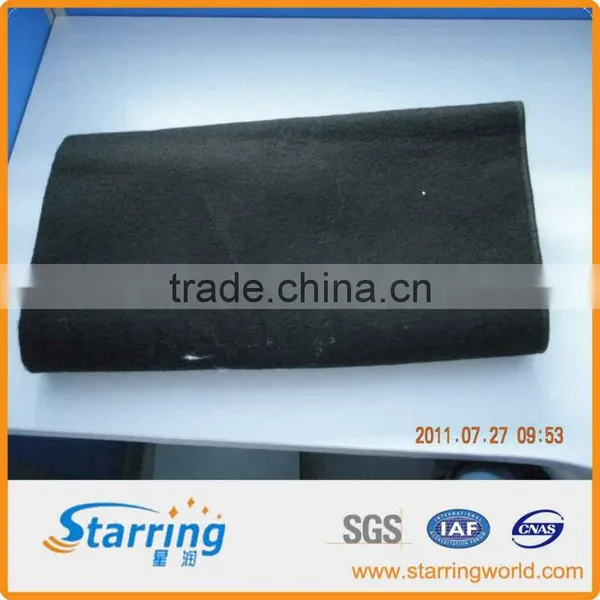

200G black geotextile
200G black geotextile Introduction:
200G black geotextile can be made of polypropylene (PP) or polyester(PET), The weight is available from 100G/M2 to 1200G/M2 and the width from 1m to 6m, Two kinds of processing technical to select: Needle punched and thermally bonded. Long fiber or short fiber. All kinds of colors are available. Our annual production ability is 20 million square meters.
200G black geotextile is widely known as earthwork material and industry fabric, used in the areas of railway, highway, water conservancy, dam, tunnel, subway, environment protection and so on.
200G black geotextile Feature:
1.using geotextile good air permeability and permeability,make water flow through,thus effectively interception of soil erosion.
2.geotextile prevent the lower sand,soil and concrete between mixed
3.it has good performance,it can guide water soil formed within the drainage channels,soil structure in excess liquid and gas discharge
4.with polypropylene fiber or polyster as material,geotextile have high strength,andti-aging,anti-acid and anti-alkali,not eaten by moth,oxidation
(+1) Cushioning - effective and low cost protection to membrane from damage by sharp objects.
(2) Drainage - allows subsurface water to pass to drain system while preventing soil from clogging system.
(3) Separation - applied to soft or saturated subgrade, prevents aggregate and ballast from mixing into subgrade.
(4) Filtration - geotextiles can provide collection and transfer of liquids and gases that build up and accumulate beneath geomembranes.
(5) Reinforcement - geotextiles can help relieve hydrostatic pressure beneath hard armor such as highways.
200G black geotextile Parameter Index:
| Density |
Thickness |
Breaking Strength |
Elongation of Fracture |
Tearing Strength |
CBR Bursting Strength |
Vertical Penetration Parameter |
Equivalent Aperture |
| g/m2 |
mm |
KN/m |
% |
KN |
KN |
cm/s |
O 95 mm |
| 100 |
0.9 |
2.5 |
25 ~ 100 |
0.08 |
0.3 |
K x (10 -1 ~ 10 -3) (K = 1.0 ~ 9.9) |
0.07 ~ 0.2 |
| 150 |
1.3 |
4.5 |
0.12 |
0.6 |
|||
| 200 |
1.7 |
6.5 |
0.16 |
0.9 |
|||
| 250 |
2.1 |
8.0 |
0.20 |
1.2 |
|||
| 300 |
2.4 |
9.5 |
0.24 |
1.5 |
|||
| 350 |
2.7 |
11.0 |
0.28 |
1.8 |
|||
| 400 |
3.0 |
12.5 |
0.33 |
2.1 |
|||
| 450 |
3.3 |
14.0 |
0.38 |
2.4 |
|||
| 500 |
3.6 |
16.0 |
0.42 |
2.7 |
|||
| 600 |
4.1 |
19.0 |
0.46 |
3.2 |
|||
| 800 |
5.0 |
25.0 |
0.60 |
4.0 |
