Specifications
PET Gotextile for Retaining wallMaterial:PP/PET
Width:1-6m
Weight:100-1200gsm
anti-aging,anti-acid and alkali,ab

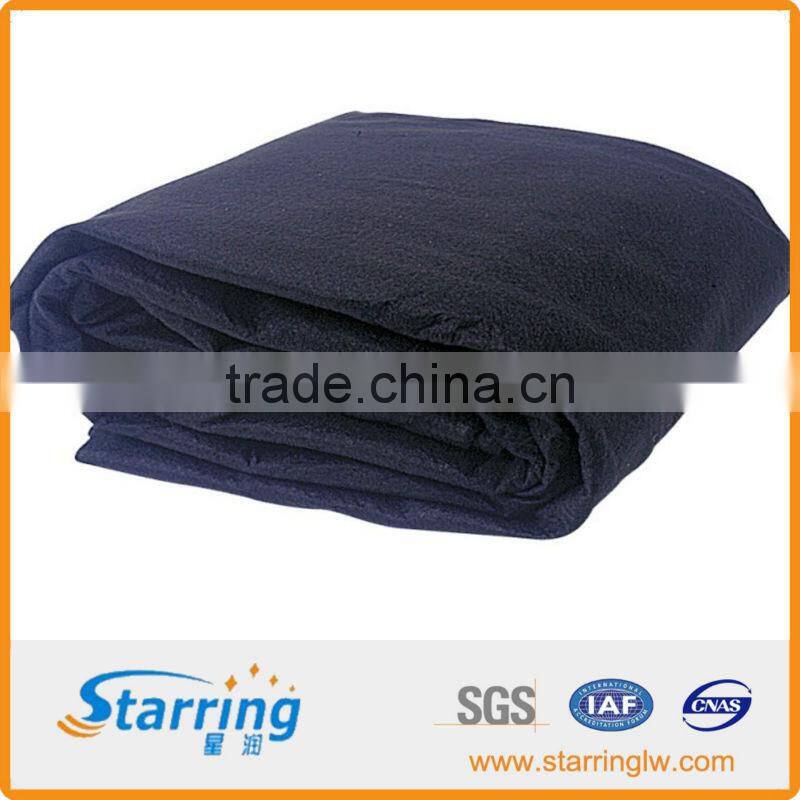

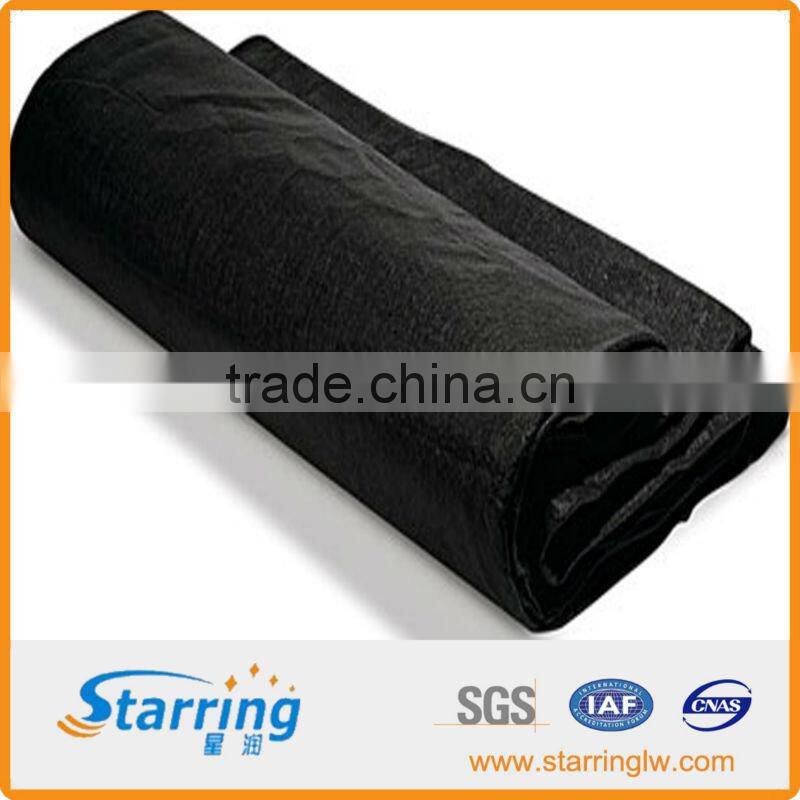

PET Gotextile for Retaining wall
PET Gotextile for Retaining wall Introduction:
PET Gotextile for Retaining wall can be made of polypropylene (PP) or polyester(PET), The weight is available from 100G/M2 to 1200G/M2 and the width from 1m to 6m, Two kinds of processing technical to select: Needle punched and thermally bonded. Long fiber or short fiber. All kinds of colors are available. Our annual production ability is 20 million square meters.
PET Gotextile for Retaining wall is widely known as earthwork material and industry fabric, used in the areas of railway, highway, water conservancy, dam, tunnel, subway, environment protection and so on.
PET Gotextile for Retaining wall Feature:
1.using geotextile good air permeability and permeability,make water flow through,thus effectively interception of soil erosion.
2.geotextile prevent the lower sand,soil and concrete between mixed
3.it has good performance,it can guide water soil formed within the drainage channels,soil structure in excess liquid and gas discharge
4.with polypropylene fiber or polyster as material,geotextile have high strength,andti-aging,anti-acid and anti-alkali,not eaten by moth,oxidation
PET Gotextile for Retaining wall Application:
1.Filtration :
It can be the filtration layer of the dykes, river canal, seacoast, concrete slope, retaining walls. At the same time of preventing the clay granule from passing, it allows the water and the gas pass through freely.
2.Separation :
The isolation of the railway dregs and the roadbed, roadbed and the soft base, surface of the airdrome and parking lot and the groundsill, different dam materials. It isolates the soil and the gravel of two kinds different granule pathway from the groundsill or other buildings.
3.Reinforcement/Roofing :
The highway, railway, soil-stone dam, breakwater, airport and backfill soil of retaining wall, slope protection, etc in which distributes the earth stress, prevents the side-displacement of the earth body and improves the earth-body stability. Also, used as a waterproofing substrate for roofing industries
4.Protection :
It prevents the bank from being washed out, protects the bank and the bottom, prevents the water and soil from being washed away
PET Gotextile for Retaining wall Parameter Index:
| Density |
Thickness |
Breaking Strength |
Elongation of Fracture |
Tearing Strength |
CBR Bursting Strength |
Vertical Penetration Parameter |
Equivalent Aperture |
| g/m2 |
mm |
KN/m |
% |
KN |
KN |
cm/s |
O 95 mm |
| 100 |
0.9 |
2.5 |
25 ~ 100 |
0.08 |
0.3 |
K x (10 -1 ~ 10 -3) (K = 1.0 ~ 9.9) |
0.07 ~ 0.2 |
| 150 |
1.3 |
4.5 |
0.12 |
0.6 |
|||
| 200 |
1.7 |
6.5 |
0.16 |
0.9 |
|||
| 250 |
2.1 |
8.0 |
0.20 |
1.2 |
|||
| 300 |
2.4 |
9.5 |
0.24 |
1.5 |
|||
| 350 |
2.7 |
11.0 |
0.28 |
1.8 |
|||
| 400 |
3.0 |
12.5 |
0.33 |
2.1 |
|||
| 450 |
3.3 |
14.0 |
0.38 |
2.4 |
|||
| 500 |
3.6 |
16.0 |
0.42 |
2.7 |
|||
| 600 |
4.1 |
19.0 |
0.46 |
3.2 |
|||
| 800 |
5.0 |
25.0 |
0.60 |
4.0 |
