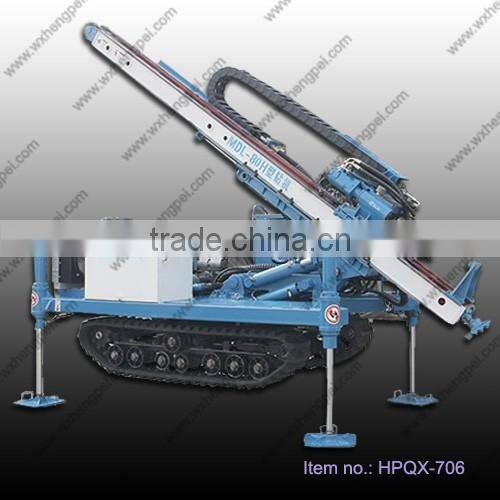

Well Used Crawler Drill Rig With Rotary Jet Grouting MDL-80H

Quick Details

• Condition: New
• Type: Rotary Drilling Rig
• Power Type: Electric
• Place of Origin: Jiangsu, China (Mainland)
• Brand Name: xitan
• Model Number: MDL-80H
• Usage: geology engineering
• Voltage: 380V
• Power(W): 30+11+1.5
• Dimension(L*W*H):4885*2120*1800mm
• Weight: 4200kg
• Certification: ISO9001:2008
• Warranty: 6 Months
• After-sales Service Provided:Engineers available to service machinery overseas
• Model: MDL-80H
• Hole Depth: 60-90m
• Rod dia: 73,89,102,114
• Hole angle: 0-90°
• Lifting force: 60KN
• feeding force: 30KN
• Stroke of slide frame: 900mm
• stroke of power head: 3400mm
• Output torque of power head: 4000NM
• Max lifting height(m): 2.4

Product Description

 1.Application:

 (1)Max speed can reach 216r/min,better for twist drill,soil layer.

 (2)Anchor is fit for rod drilling,casing drilling,rod and casing complex drilling etc.

 (3)Rotary jet grouting is fit for single,double,triple jet grouting ect.

2. Through different module configuration,it can fit following process:

(1)  foundation pit dewatering

(2)mining drilling rig

(3)Water well

3.Torque,speed can work reasonable matching according actual requirement,the stroke is 34000mm,can use 3000mm  rod and casing complex drill.It can  configure corresponding torque power head according different  stratum.

4.With crawler base,high rotary platform,max diameter  support oil cylinder,900mm push shaft, Orifice support device,conveniently for drill rig move,locate,stable and reliable.

5.Max lift height is 2400mm

Technical Specifications:
