Full hydraulic rotary crawler anchor drilling rig with multifunction MDL-160E

wooden box or export packing standard

Quick Details

• Condition: New
• Type: anchor drilling rig
• Power Type: Diesel
• Place of Origin: Jiangsu, China (Mainland)
• Brand Name: xitan
• Model Number: MDL-160E
• Usage: geology
• Voltage: 380V
• Power(W): 110kw
• Dimension(L*W*H): 5.7*2.1*1.95m
• Weight: 7500kg
• Certification: ISO9001:2008
• Warranty: 6 Months
• After-sales Service Provided: Engineers available to service machinery overseas
• Model: MDL-160E
• Hole Depth: 100-140m
• Hole diameter: 150-250mm
• rod diameter: 89,102,114
• Hole angle: 0-90°
• Lifting force: 80KN
• feeding force: 40KN
• Stroke of slide frame: 1500mm
• stroke of power head: 3600mm
• Output torque of power head: 8000NM

Quick Detail:

1. The power head of MDL160E adopts imported Germany-made product, and the top of the power head can vibrate with big power without DTH hammer or air compressor.

2.MDL-160E is applicable to a wide-range of strata with big torque, high rotary speed, and big power.When meeting those fragile holes such as sand gravel layer, gravel layer, sand stone soil, sand hole, the top drive drill equipment has a very high penetration rate and drilling efficiency. Especially when the moisture content of local layer is too high to use DTH hammer when work, this top head drive drill rig is the only choice.

3.Equipped with specialized pipe drill machine, such as drill pipe, casing, eccentric bit, the 160E crawler anchor drilling equipment is easy to use casing pipe wall to drill holes when meet with unstable strata. It is efficient and high-quality.

Description:

1.  MDL-160E is a kind of full hydraulic power head anchor crawler drilling rig . Its drilling depth is 140-180m, and drilling diameter 150-250mm.

2.  The power head of MDL160G adopts imported Germany-made product, and the top of the power head can vibrate with big power without DTH hammer or air compressor.Finsh the hole with high efficiency and good effcts.

3. MDL-160Eis applicable to a wide-range of strata with big torque, high rotary speed, and big power.When meeting those fragile holes such as sand gravel layer, gravel layer, sand stone soil, sand hole, the top drive drill equipment has a very high penetration rate and drilling efficiency. Especially when the moisture content of local layer is too high to use DTH hammer when work, this top head drive drill rig is the only choice.

4. This top head drive drill rig adopts variable hydraulic system.The drilling tools  from the outer to the inner and all involved in the transmission of the impact power, it is not easy to happen the hole accidents such as drill sticking.

5. Equipped with holding shackle with three head, the working efficiency is greatly improved.

6. This top drive drill equipment is applicable to anchor hole, such as urban foundation pit supporting . And is mainly applied to construction engineering supporting, slope supporting,all kinds of guide hole, tunnel and pipe shed engineering, etc.

Applications:

1.  hole, such as urban foundation pit supporting.

2. It is mainly applied to construction engineering supporting, slope supporting,all kinds of guide hole, tunnel and pipe shed engineering, etc.

3. Spiral drilling, direct drilling, casing drilling, DTH hammer drilling, hole drilling, jet grouting drilling, reverse circulation drilling

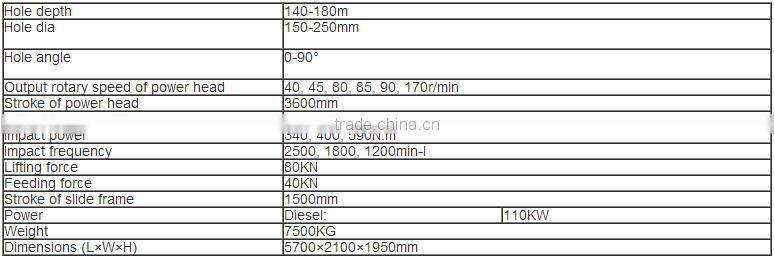

Specifications:
