Quick Details
- Condition: New
- Type: anchor drilling rig
- Power Type: Electric
- Place of Origin: Jiangsu, China (Mainland)
- Brand Name: xitan
- Model Number: MDL-150H
- Usage: geology
- Voltage: 380V
- Power(W): 55+18.5+2.2
- Dimension(L*W*H): 5.4*2.1*2m
- Weight: 6500kg
- Certification: ISO9001:2008
- Warranty: 6 Months
- After-sales Service Provided: Engineers available to service machinery overseas
- Model: MDL-150H
- Hole Depth: 130-170m
- Rod diameter: 150-250mm
- Hole angle: 0-100°
- Lifting force: 70KN
- Feeding force: 36KN
- Stroke of slide frame: 1500mm
- Stroke of power head: 3400mm
- Output rotary speed of power head:10/20/30/35/40/60//65/70/85/130/170r/min
Quick Detail:
1. MDL-150H drilling rig is a kind of full hydraulic multifunctional power head drilling rig, This hydraulic multifunctional drilling rig is in integral type, equipped with crawler chassis and holding shackle.
2. It can be used for retaining and protecting for foundation excavation and controlling building displacement in urban anchor engineering applications.
3.The big arm like excavator with double cylinders has the stability of any lifting condition.
4.MDL-150H crawler drilling rig has level system (drill arm) is able to adjust mast in different angle and height without moving drilling rig, This can adjust to the max level of 3.3m.
Description:
1.MDL-150H drilling rig is a kind of full hydraulic multifunctional power head crawler drilling rig. It is mainly applied in drilling work of the anchoring hole of deep basement foundation,urban subway,slope supporting, tunnel,high building,airport,geothermal construction,pipe shed and so on.
2. When meeting unstable strata, some drilling auxiliaries (rod, casing pipe and eccentric bit) are in your choice to be added to increase safety, efficiency and quality.
3.Due to big torque, the depth of hydraulic multifunctional drilling rig is deeper.
4. MDL-150H crawler drilling rig has level system (drill arm) is able to adjust mast in different angle and height without moving drilling rig, This can adjust to the max level of 3.3m.
5. The big arm like excavator with double cylinders has the stability of any lifting condition.
6. The crawler from the ground space is so large to adapt for bad environment construction.Landing leg can not only prevent oil cylinder from spoiling, but also increase supporting intensity.
7. The hydraulic clamp & wrench device enormously decreases the assistant time and also reduces the intensity of operating work.
Applications:
1. Urban subway, high-rise buildings, airport, ground source heat pump and other deep foundation pit for anchoring.
2. Jet grouting and dewatering, blast hole,the anti-floating anchoring hole .
3. This engineering drill rig can be used for drilling geothermal hole and well.
4. It can be also used for pipe shed engineering.

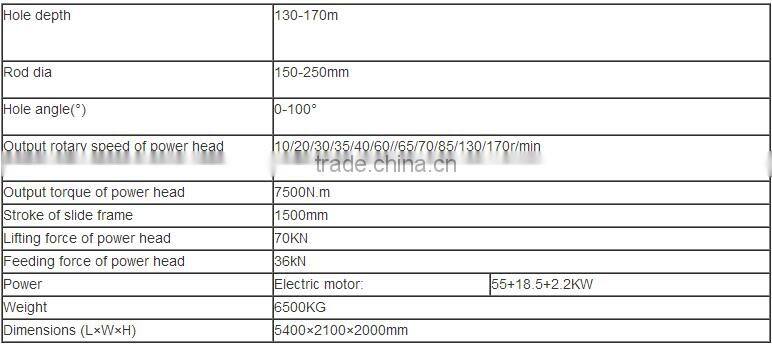

Specifications:
