Bestlink BQ90-P Multi-angle Drilling Pneumatic DTH Driller
BQ-90P DTH driller is a new model drill machine, we develop it specially used for stone quarry and the drilled hole can be different diameter, depth, multi-orientation & angle.
Now it's the indispensable products for mine quarrying, stone dynamiting and diamond wire passing.
Advantages:
1) Light weight, easy installation and transportation
2) The high quality pneumatic components ensure the low energy and air consumption and high efficiency
3) The good hoisting ability
4) The particular mechanical tube devices for screwing and discharging to reduce the labor intensity
5) The particular design for guiding drilling
Technical Data:
Name |
BQ-90P Pneumatic driller |
Max. depth of drilling |
35-40m |
Diameter of drilling |
Φ65-90mm |
Drilling speed |
6~8m/h |
Minimum air pressure |
0.5-0.7MPa |
Total compressed air consumption |
7~9m³/min |
The hole hammer |
CIR65-90 |
Track travel |
1.2m |
Advance device |
pneumatic motor, reducer, chain |
The pneumatic rotation head |
pneumatic motor, reducer |
Drilling direction |
any direction |
Adjust height of the down jack |
220mm |
Pneumatic control panel |
remote control, manual change direction |
Total weight |
250Kg |

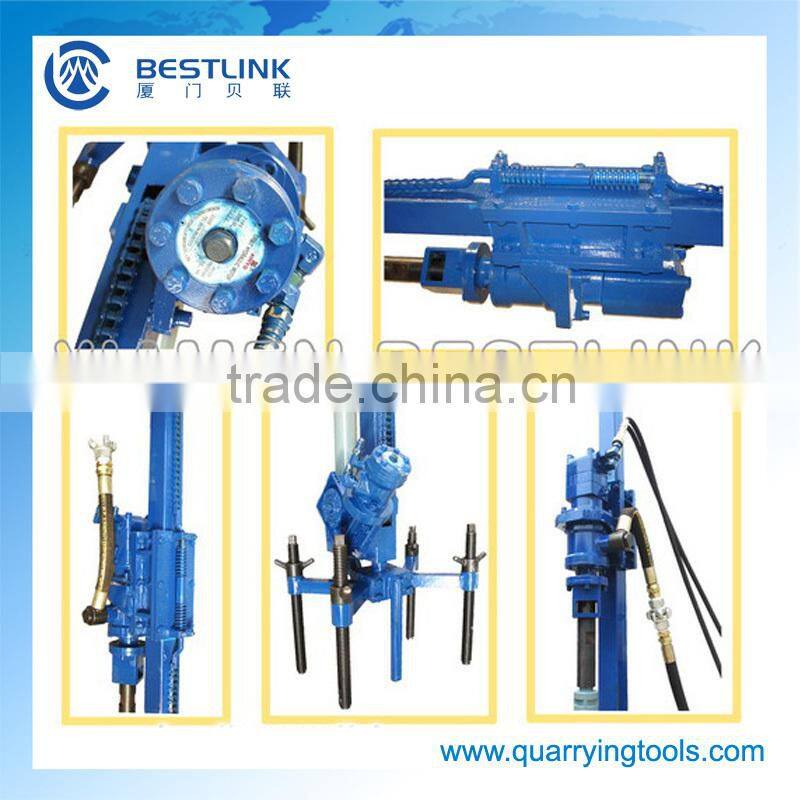

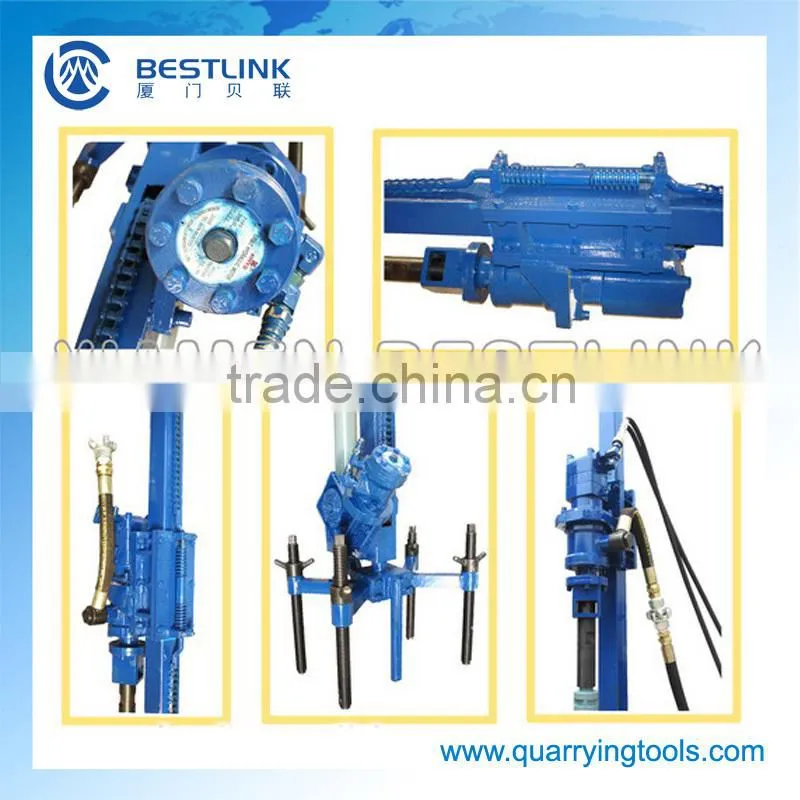

Pictures for detailes of the DTH Driller:

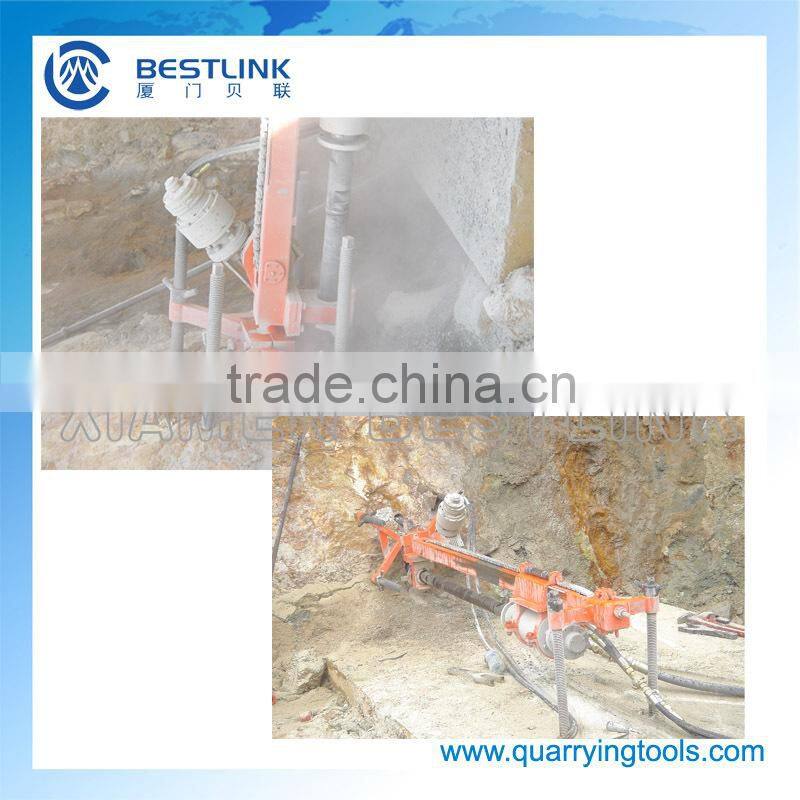

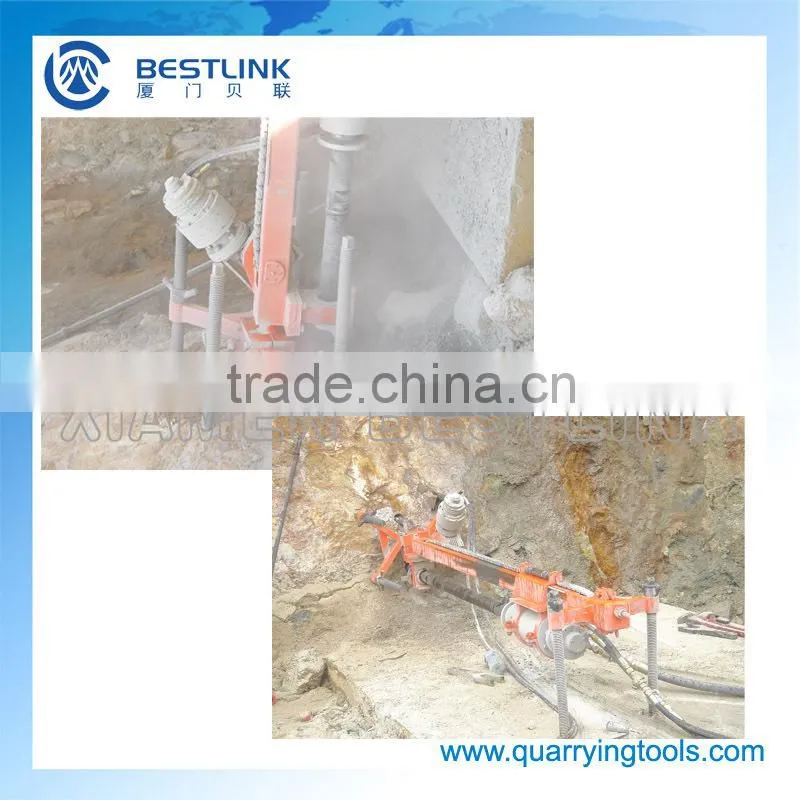

Here show the details for this DTH Driller (Down the Hole Drilling Machine) , and also this machine on the worksite.
