Spindle Rotatory Engineering Drilling Rig MDL-135G

wooden box or export packing standard

Quick Details

• Condition: New
• Type: Rotary Drilling Rig
• Power Type: Electric
• Place of Origin: Jiangsu, China (Mainland)
• Brand Name: xitan
• Model Number: MDL-135G
• Usage: crawler drilling rig
• Voltage: 380V
• Power(W): 55+18.5+2.2KW
• Dimension(L*W*H): 5.4*2.1*2.2m
• Weight: 6000kg
• Certification: ISO9001:2008
• Warranty: 6 Months
• After-sales Service Provided:Engineers available to service machinery overseas
• Model: MDL-135G
• Hole Depth: 130-170m
• Hole angle: 0-90°
• Rod diameter: 150-250mm
• Lifting force: 70KN
• feeding force: 36KN
• Output rotary speed of power head:10/20/30/35/40/60/65/70/85/130/170r/min
• Stroke of slide frame: 900mm
• stroke of power head: 3400mm
• Output torque of power head: 7500N.M

Quick Detail:
1.   MDL-135G drilling rig is a kind of full hydraulic power head multifunctional crawler drilling rig. It can apply to the construction of big tonnage stress anchoring hole for water power station, railway, highway, drainage hole and geologic calamity for landslide prevention and rock collapse. Its drilling diameter is 150-250mm, and drilling depth 100-140m.

2.  The anchor drilling machine is an integral type, and is equipped with crawler chassis and holding shackle.

3. This multifunctional drilling rig is applicable to deep foundation anchoring support. By altering jet grouting module, the 135G anchor drilling rig can be used for jet grouting construction.

4. The hydraulic clamp & wrench device enormously decreases the assistant time and also reduces the intensity of operating work.

Description:

1. MDL-135G drilling rig is a kind of full hydraulic power head multifunctional crawler drilling rig. It can apply to the construction of big tonnage stress anchoring hole for water power station, railway, highway, drainage hole and geologic calamity for landslide prevention and rock collapse. Its drilling diameter is 150-250mm, and drilling depth 100-140m.

2. This multifunctional drilling rig is applicable to deep foundation anchoring support. By altering jet grouting module, the 135G anchor drilling rig can be used for jet grouting construction.

3. In addition, this  anchor crawler drilling rig is stable, efficient , and able to drill complex layers and deal with accidents.

4. The hydraulic clamp & wrench device enormously decreases the assistant time and also reduces the intensity of operating work.

5.  The anchor drilling machine is an integral type, and is equipped with crawler chassis and holding shackle.


Applications:
1.Urban subway, high-rise buildings, airport, ground source heat pump and other deep foundation pit for anchoring.
2.Jet grouting and dewatering.
3. This engineering drill rig can be used for drilling geothermal hole

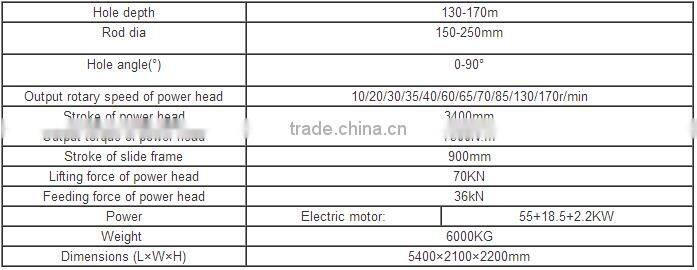

Specifications:
