MEGATRO 500KV 5E4 SZ3 suspension transmission tower
- 5000 Ton / Tons per Month
- Qingdao or as per clients
- T/T L/C
- 30 days
- Acrel ABAT-S battery-powered module device for Battery Monitoring System less than 13mA (1.2V&2V) or 7mA(6V&12V)quiescent
- Acrel ABAT-S battery analyzer monitoring system On-line monitoring of the voltage internal resistance of each backup battery
- Acrel ABAT-C Battery Monitoring Module Lead Battery Charge Discharge output 4-20mA
- Acrel ABAT Battery Monitoring System used for Base Station for 2V/6V/12V Lead Acid Batteries with RS485 communication
- Acrel ABAT-S battery analyzer monitoring system Interfaces with most UPS controller
- Acrel ABAT-S Lead-acid module device per battery to monitor internal resistance voltage and temperature
Product Details
Brand Name: | Megatro | Place of Origin: | China | Model Number: | MGP-500kv-5E4-SZ3 |
Product Description
MEGATRO 500KV 5E4 SZ3 suspension transmission tower

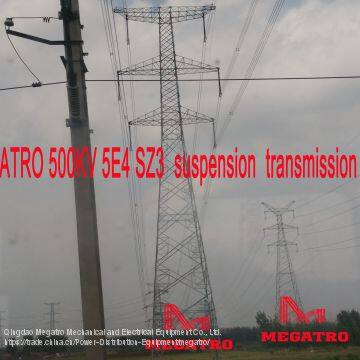

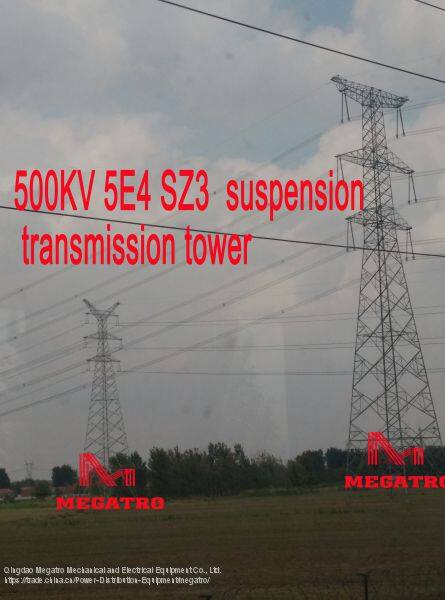

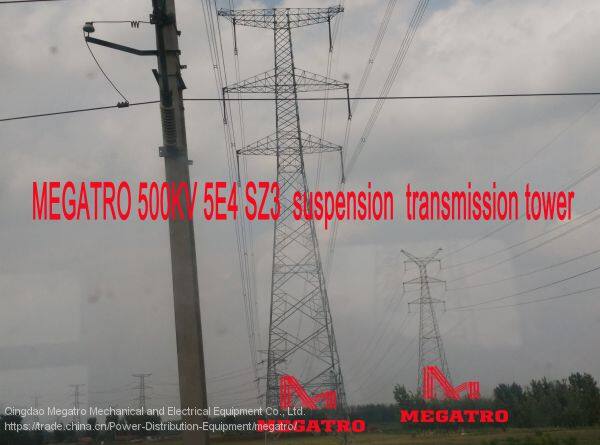

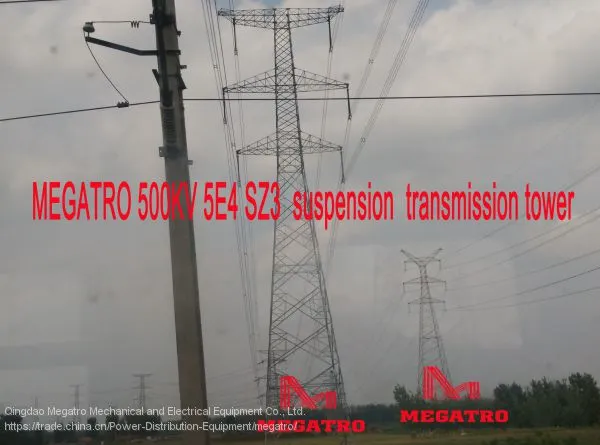

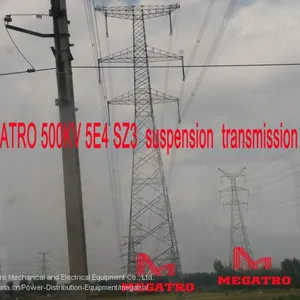

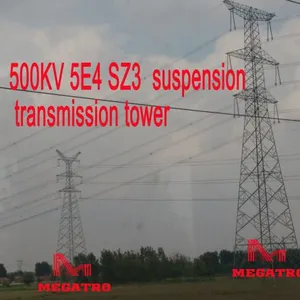

This photo refers to our 500KV 5E4 SZ3 suspension transmission tower, it is widely used in our Chinese market. Some of technical features of this tower as follow:
1 climate condition
Item | Temperature (℃) | Wind speed (m/s) | Ice thickness (mm) |
Max. temperature | 40 | 0 | 0 |
Mini. temperature | -40 | 0 | 0 |
Ice thickness | -5 | 10 | 10 |
Basic wind speed | -5 | 31 | 0 |
Installation condition | -15 | 10 | 0 |
Annual temperature | -5 | 0 | 0 |
Lightning overvoltage | 15 | 10 | 0 |
Operation overvoltage | -5 | 17.5 | 0 |
Hot-line work | 15 | 10 | 0 |
2 tower design data
Tower type | Nominal Height scope (mm) | Nominal Height (mm) | Horizontal span (m) | Vertical Span (m) | Allowed Angle º | Insulator Type
| Horizontal Span at angel condition |
5E4 SZ3 | 30~48 | 42 | 650 | 900 | 0~3 | I type and (long rod insulator ) | / |
48 | 610 | 900 | |||||
Conductor type: 4×LGL-630/45 | OPGW: JLB-150 |
3 Tower estimated weight and foundation force
Tower Type | Tower weight scope (kg) | Foundation force scope (KN) | |||||
Tmax | Tx | Ty | Nmax | Nx | NY | ||
5E4 SZ3 | 39785~40865 | 1476~1636 | 196~232 | 184~217 | 1887~2135 | 248~294 | 235~279 |
MEGATRO is a full service engineering company with a global reputation for delivering excellence and innovation in power transmission, transformation, distribution, and telecommunications systems. Our MEGATRO provide and design this type 500KV 5E4 SZ3 suspension transmission tower mainly for our Chinese and overseas client. Since 2004, MEGATRO focus mainly international market and had export many kind of transmission structures to overseas clients. MEGATRO has been manufacturing lattice transmission tower & tapered steel poles for lighting, traffic control, communication and utility applications. MEGATRO pioneered the development of transmission tower, telecom tower, substation, and other steel structure and was also at the forefront in the design of Transmission tower.
A complete selection of towers including self-support, lattice steel tower, monopoles and guyed towers, form custom-designed radar towers to broadcast towers and energy infrastructure. MEGATRO carries a variety of related products including fall protection, transmission lines, antennas, obstruction lights, and accessories, and other products if client need, MEGATRO also tailored product as per client condition.
MEGATRO mainly design all kinds of towers and posts for:
a. Telecoms
b. Power transmission
c. TV and Radio Broadcast
d. Roads and City Development
e. Wind energy solution
f. Steel structure and workshop
Today, with over 10 years of experience and our commitment to excellence, MEGATRO remains an industry leader in the manufacture and design of steel tubular & angular & monopole structures for all Highway, Municipal, Custom, telecom, lighting and electric Utility applications. MEGATRO has a complete staff of professional engineering personnel trained in the PLS Pole program and three different manufacturing processes for producing steel towers, poles and other supports. We utilize the latest versions of PLS-CADD, PLS-POLE, TOWER, AutoCAD and other CAD software.
Moreover, MEGATRO is fully equipped and qualified to carry out Design Engineering services which includes:
√ Overhead Transmission line steel tower & Telecom steel tower
Basic Design and Analysis
√ Shop Erection Drawings
√ As-Built Drawings
MEGATRO performs in-house design activities specializing in electrical overhead transmission &telecom tower steel works, which include wind and earthquake loading, static analysis, stress analysis by finite element methods and fatigue. Our Engineering Department is boasting of highly qualified engineering who are conversant with international codes and standards. The work is carried out with extensive use of CAE/CAD via a large of computer network. The computer hardware & drafting software are liked to the CNC workshop equipment for downloading of information thereby eliminating error and saving valuable production time.
Besides, MEGATRO is one of the few manufactures who assemble a face of 500KV 5E4 SZ3 suspension transmission tower. This attention to quality may not be the cheapest process but it does insure every tower meets our high standards of quality. And it helps to reduce on-site construction cost due to mismatched assemblies. After fabrication all 500KV 5E4 SZ3 suspension transmission towers are delivered to the galvanizing facility to be Hot DIP Galvanized. Towers are processed through the facility by Caustic Cleaning, Pickling, and then Fluxing. These strict procedures insure years of maintenance free towers. All finished surfaces shall be level and free of tears, burrs, clots and impurities.
MEGATRO' 500KV 5E4 SZ3 suspension transmission tower systems can accommodate a variety of cross-arm. MEGATRO also offers a wide variety of accessories and mounts.
