MEGATRO 500KV 5E2 SZC2 double circuit suspension Transmission tower

Name: MEGATRO 500KV 5E2 SZC2 double circuit suspension Transmission tower
Brand: Megatro
Availability: InStock

FOB Price

USD $920 - $960 / Ton

1 Ton(Min.Order)

Supply Ability 4000 Ton / Tons per Month
Port Qingdao or as per clients
Payment TermsT/T L/C
Delivery Detail30 days

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	Megatro		Place of Origin	China
Model Number	MGP-500kv-5E2-SZC2

Product Description

MEGATRO 500KV 5E2 SZC2 double circuit suspension Transmission tower

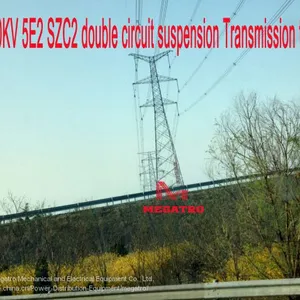

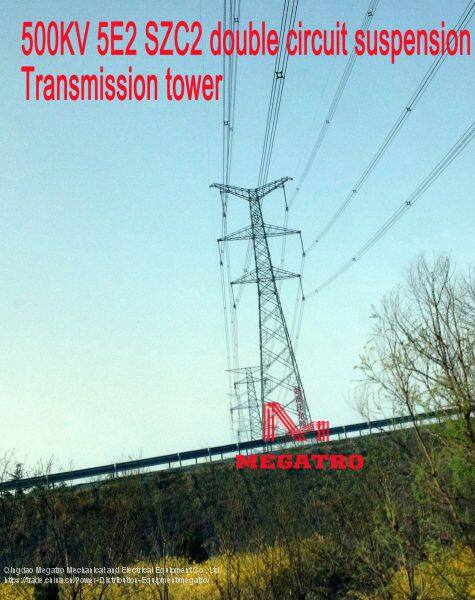

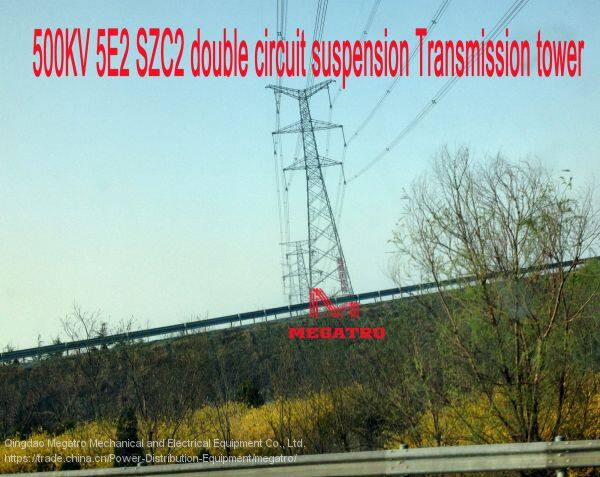

This photo refers to our 500KV 5E2 SZC2 double circuit suspension Transmission tower, it is widely used in our Chinese market. Some of technical features of this tower as follow:

1 climate condition

Item	Temperature (℃)	Wind speed (m/s)	Ice thickness (mm)
Max. temperature	40	0	0
Mini. temperature	-40	0	0
Ice thickness	-5	10	10
Basic wind speed	-5	27	0
Installation condition	-15	10	0
Annual temperature	5	0	0
Lightning overvoltage	15	10	0
Operation overvoltage	-5	15	0
Hot-line work	15	10	0

2 tower design data

Tower type	Nominal Height scope (mm)	Nominal Height (mm)	Horizontal span (m)	Vertical Span (m)	Allowed Angle º	Insulator Type	Horizontal Span at angel condition
5E2-SZC2	27-48	39	450	550		I type Insulator	/
5E2-SZC2	27-48	42	430	550		I type Insulator	/
Conductor type: 4×LGL-630/35					OPGW: JLB-150

3 Tower estimated weight and foundation force

Tower

Type

Tower weight scope (kg)

Foundation force scope (KN)

T_max

T_x

T_y

N_max

N_x

N_Y

5E2-SZC2

32869～46920

1189～1316

194～224

127～199

1464～1618

229～257

157～192

4Here is the design strength of Chinese tower steel

Steel material		tensile, bending and press strength (N/mm²)	shear strength (N/mm²)
Grade	Thickness or diameter (mm)	tensile, bending and press strength (N/mm²)	shear strength (N/mm²)
Q235 Steel	≤16	215	125
	>16～40	205	120
	>40～60	200	115
	>60～100	190	110
Q345 Steel	≤16	310	180
	>16～35	295	170
	>35～50	265	155
	>50～100	250	145
Q420 Steel	≤16	380	220
	>16～35	360	210
	>35～50	340	195
	>50～100	325	185
Q460 Steel	≤16	415	240
	>16～35	395	230
	>35～50	380	220
	>50～100	360	210

5 Here is the design strength of our Chinese tower bolts

Item	Grade	tensile strength (N/mm²)	Shear strength (N/mm²)
Fastener for towers	4.8	200	170
	5.8	240	210
	6.8	300	240
	8.8	400	300
Anchor bolts	Q235	160	/
	Chinese 35 steel	190	/
	Chinese 45 steel	215	/

Remark: above technical data only references for our client, we can design every type for our overseas clients.

MEGATRO is a full service engineering company with a global reputation for delivering excellence and innovation in power transmission, transformation, distribution, and telecommunications systems. Our MEGATRO provide and design this type 500KV 5E2 SZC2 double circuit suspension Transmission tower mainly for our Chinese and overseas client. Since 2004, MEGATRO focus mainly international market and had export many kind of transmission structures to overseas clients. MEGATRO has been manufacturing lattice transmission tower & tapered steel poles for lighting, traffic control, communication and utility applications. MEGATRO pioneered the development of transmission tower, telecom tower, substation, and other steel structure and was also at the forefront in the design of Transmission tower.
