Make Metal Aluminum Tube Cutting Making Machine Description:

This Make Metal Aluminum Tube Cutting Making Machine is specially used for producing Φ127-Φ300mm, δ3.0-6.0mm high-frequency straight seam welded pipe and corresponding square pipe and special-shaped pipe (δ≤5.0mm). The composition of equipment is from uncoiler to computer-controlled fixed length cutting saw. Rolling speed can be adjusted correspondingly within suitable range of pipe diameter and wall thickness.

Technical patameters for the Make Metal Aluminum Tube Cutting Making Machine

1)Material: Low-carbon steel, low alloy steelδs≤345Mpa, δb≤610Mpa
2)The width of steel strip: 400-940mm
3)The thickness of steel strip: 3.0-6.0mm
4)I.D. of steel coil: Φ500-Φ600mm
5)O.D. of steel coil: Φ max.=1600mm
6)Maximum weight coil: 10T


Process flow for the Automatic steel pipe welding bending Machine
Raw material (steel coil)→uncoiling→shearing and butt-welding→forming and shaping→TIG welding→Polishing burrs outside of weld seam→cooling→sizing→roughly straightening→fixed length cutting→run-out table
Basic componets for the Make Metal Aluminum Tube Cutting Making Machine
1. Uncoiler 1set
2. Shearing and butt-welding machine 1set
3. Horizontal-type Accumulator 1set
4. Forming, welding, scraping and sizing unit 1set
5. Driving system 1set
6.Computer-controlled tracking cutting saw 1set
7. Finished pipe passing conveyor: (Run-out table) 1set
8. High-frequency electric 1set




More information about the Make Metal Aluminum Tube Cutting Making Machine

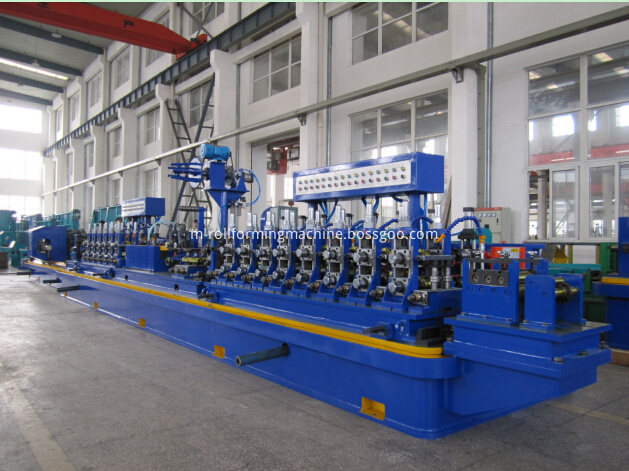

Make Metal Aluminum Tube Cutting Making Machine-1

Steel welding pipe rolling machineSteel welding pipe rolling machineSteel welding pipe rolling machinepipe

Packing and shipping about the Stainless steel pipe welding rolling making machine

packing and shipping-maxmach

About our factory-maxmach

67


The finishe products about the Stainless steel pipe welding rolling making machine,pls check the download about the PDF below the main picture.

Product Tags: Tube Making Machine , Machine To Make Metal Tube , Aluminum Tube Cutting Machine
