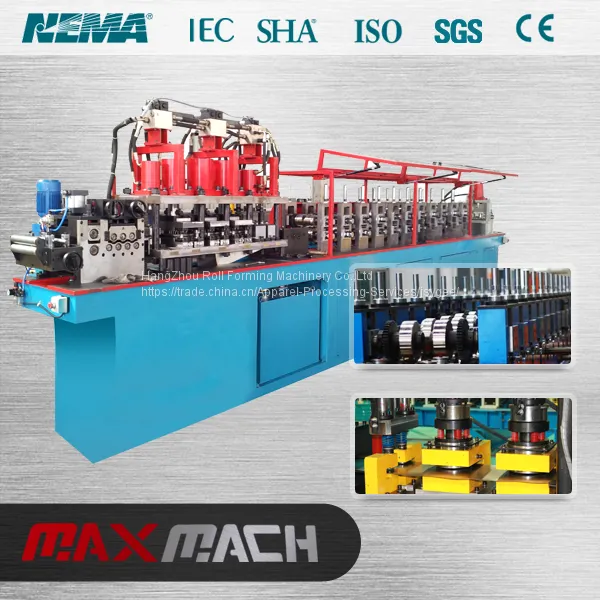

High speed Light keel metal sheet roll forming machine equipment
MATERIAL PARAMETERS:
(1) Coil Width: according to different standards.
(2) Suitable Coil Thickness: 0.5mm
(3) Suitable Raw Materials: cold steel plate (550Mpa)
(4) suitable steel coil inner diameter: ￠508mm
(5) suitable steel coil outer diameter: ≤￠1200mm
(6) Suitable steel coil max weight: 2 Tons
High speed Light keel metal sheet roll forming machine equipment main technical data
(1)Hydraulic decoiler--1 set (decoiler capacity is 2 tons)
(2)Feeding guider-1 set
(3)Main roll former-- 1 set
(4) Hydraulic Cutter-- 1 set (flying cutter model)
(5) Hydraulic station-- 1set
(6) PLC control system – 1 set
(7) Automatic final products stacker-1set (total length is 3 meters)
(1)Line working speed: 40m/min
(The line speed is calculated according to 2 meters length final products)
(2)Each piece final products length tolerance: ±1.5mm
(3)Roll forming line power source: 380V±10%/50HZ/3 Phase
(4)Raw material kind: cold rolled steel plate or galvanized steel plate
High speed Light keel metal sheet roll forming machine equipment working process
Decoiler-leveler-material loop-feeder-puncher-material loop-roll former-cuter-final products output
MACHINE COMPONENTS:
(1)Hydraulic decoiler--1 set (decoiler capacity is 2 tons)
(2)Feeding guider-1 set
(3)Main roll former-- 1 set
(4) Hydraulic Cutter-- 1 set (flying cutter model)
(5) Hydraulic station-- 1set
(6) PLC control system – 1 set
(7) Automatic final products stacker-1set (total length is 3 meters)
Profile drawing about the High speed Light keel metal sheet roll forming machine equipment
We can design and maufacture different Metal Carriage Board roll forming equipment according to your requirements with the profilw drawing,pls send the inquiry to us for the more information.
