Main parameter
1.1Raw material
Raw material yield strength: 250-400Mpa
Width precision: -0.2mm
I.D of coil: Ф508±10 mm
O.D of coil: ≤Ф1300mm
Coil weight: ≤3000 kg
1.2 Technical parameter
Sizing length: 2000~6000mm
Working speed: 6m/min
Power: 380V±10%;50HZ
Work flow
Decoiler → Feeding → Leveling → Coil head/end cutting &welding → Loop → Conveyor →Punching → Loop → Roll forming machine → Streight → Cutting →Rack
Components
1.Decoiler
2.Leveling device
3.Coil head/end part cutter &welder (options)
4.Serve feeding device
5.Punching machine
6.Loop device (2 sets)
7.Roll forming machine
8.Straighter
9.Cutter
10.Rack
11.Hydraulic System
12.Pneumatically control system
13.Electric Control System
14. Safety Precautions, Transportation and Rust Prevention

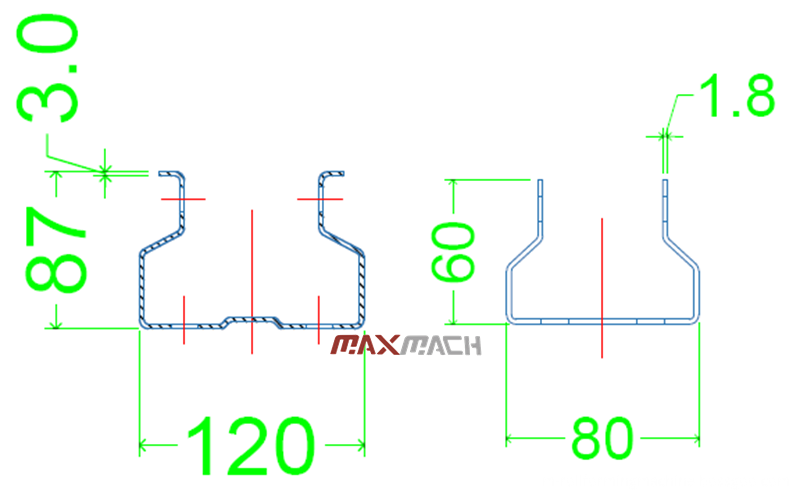

Profile drawing
Finished products show
