Metal Stud Light Steel Frame Making Machine
- 0 per Month
- Hishine 150W LED Tunnel Light Floodlight Mining Light
- tunnel light with long life span saving cost underground light
- high mast light manufacturer waterproof design
- high brightness tunnel light with waterproof driver
- Aluminum alloy shell of tunnel lamp
- High 200000 lumens TUV CE RoHS approved adjustable module tunnel light led
Product Description
The C Purlin Metal Stud Light Steel Frame Making Machine includes: hydraulic expansion Uncoiler, leveling equipment, roll forming system, punching equipment, cutting equipment, hydraulic station, electric controlling system and supporter for purlin. We adopt PLC control and frequency speeding adjust technology to realize the continuous production with high efficiency.
Technical parameters for the C Purlin Metal Stud Light Steel Frame Making Machine
Suitable material:
Material Spec: Galvanization steel sheet or Cold Rolled Coil steel
Strength of the sheet: finds the confirmed profile drawing
Thickness of the sheets: 230-300mpa
Forming Speed: 1.6-3.0mm
Hydraulic Uncoiler: 12m/min
Control system: Max. Capacity: 3000kgs
Power source: P LC
Type of cutting: 380V/3 phase/50HZ
Product range: Before roll-formed and length-set cutting
Material of Main C Purlin Metal Stud Light Steel Frame Making Machine
1)Roller Material: Bear steel being heat treatment, with digital-controlled procession, which ensures the rollers` hardness to be HRC60 and durable.
2)Active Shaft Material: High grade No.45 carbon wrought steel,which can improve the integrated mechanic feature of the shaft
3)Electric Elements: PLC control panel, transducer imported from Mitsubishi of Japan. Other elements from famous suppliers in China
4)Cutter blade: Cr12 mould steel with quenched treatment
Components and Function for the C Purlin Metal Stud Light Steel Frame Making Machine
1.Cantilevered Hydraulic expansion uncoiler:
The machine adopts cantilevered type structure; it mainly consists of frame, cantilevered hydraulic axis, and transmission system, hydraulic system and PLC control system, with the function of loading and unloading coils.
2.Coil Feeding Equipment
This feeding device is to fix the sheet, ensure the sheet at right place. There is left&right guiding system which could be adjusted through the screw. The steel sheet is manually fed to the leveling equipment under the function of friction and traction
3.Leveling Equipment
The system is combined by forward and back rollers and leveling .There are 3 rollers up and 4 rollers down. It`s to make the steel strip go into the cutting equipment flatly and straightly, which ensures the controller measures the size of steel strip precisely and the feature of flat and straight purlin production.
4.Punching system
It consists of punching frame, hole moulding. It`s flat punching system, punching before the C-purlin forming.
5.Pre-cutting Equipment
The length and blocks can be set by the buyer through the control panel, when reach the set length, the machine will cut the panel automatically. The cutting is finished under the power of hydraulic station which guarantees the precision of cutting. The style of pre-forming cutting saves the raw material, moreover, it avoids the disadvantage of replacing the cutting mould when make different specific purlin

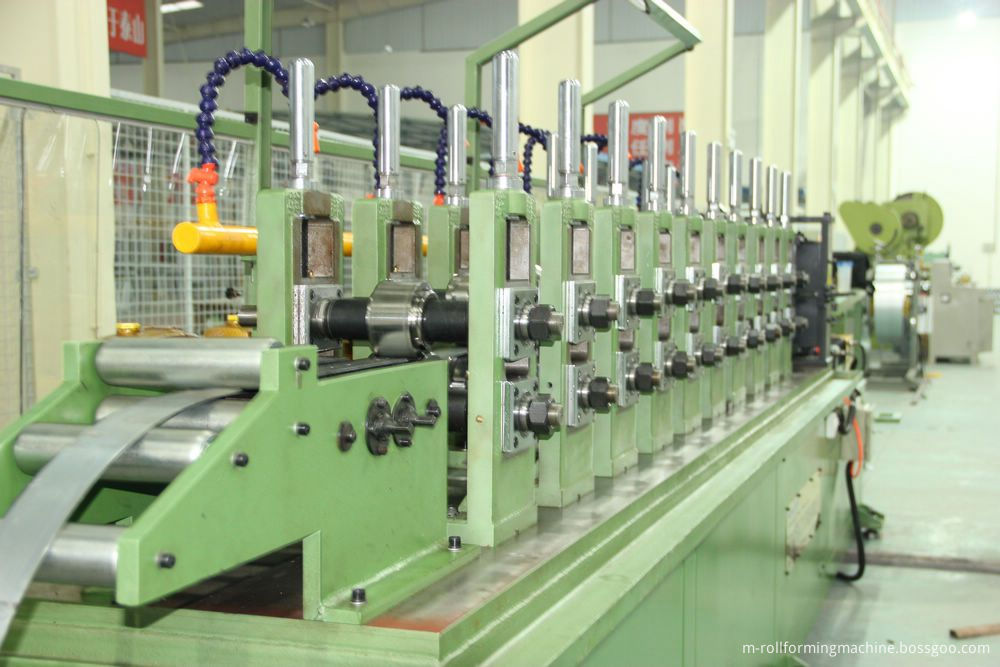

6.Roll forming system
The main frame of machine is welded separately and the outside wall is connected by screw after being rotted blasted on the surface. The rollers are surface-chrome plated after being machined by the exact machine tool.
7.Electrical systems
High technical requirements: adopt two motors supply power in order to meet the pre-cutting requirement
8.Hydraulic Stations
It supplies the initial power to the cuter through a closed oil tank. It is off without cutting, which can save the power.
9.PLC Control Panel
The electric controlling system of this machine consists of five parts: operating system, screen, PLC, transducer and strong electricity part. The controlling system of this machine is imported from Mitsubishi Company of Japan. The system uses modularized structure and has convenient, reasonable, canonical wiring arrangement, and its maintenance is quite easy. The independent operating console facilitates the mutual dialogue between the operator and the machine. The operation is easy and steady and can choose operation by manual or automatically.
10.Supporter Table
It supports the finished panels. The quantity we supply is 2 pieces with length 2000mm; it can support panels with 10000mm at normal condition.
Working Flow for the C purlin forming making machine
Decoiling the sheet Leveling sheet Punching Measure length and cutting the sheet Purlin forming to the supporter
